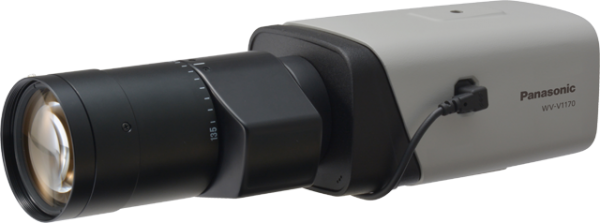

Camera IP Panasonic WV-V1170

4K Box type Network Camera

Danh mục: Camera Panasonic

12 Megapixel Ultra HD Box type Network Camera

*Only sold in certain areas excluding US, UK and Europe market

Lens : optional

• 1/1.7” １２Megapixel CMOS image sensor.

• H.265 / H.264 & MJPEG triple-stream encoding

• 20fps@12M(4000×3000)25/30fps@4K(3840×2160).

• Support ICR for day time and night time operation.

• Auto back focus(ABF)

• Built-in Microphone

• PoE. (IEEE802.3af compliant)

Indoor / Outdoor		Indoor
Image sensor		1/1.7 MOS
Min. Illumination Color (lx)		0.2
Min. Illumination B/W (lx)		0.002
Maximum Resolution		4K (3,840 x 2,160)
Maximum FPS		30
Super Dynamic		–
Image compensation		Back light compensation (BLC), High light compensation (HLC), Digital noise reduction
Color/BW		ICR
ABF(Auto back focus)/Auto Focus/Focus Assist		ABF (Auto back focus)
IR LED		–
iA (Intelligent Auto)		–
Focal length		CS Mount
Zoom ratio		–
Angular field of view (16:9)		–
Angular field of view (4:3)		–
Panning Range		–
Tilting Range		–
Network IF		10Base-T, 100Base-TX, RJ45 connector
Video Codec		H.265, H.264, JPEG
Transmission mode (H.265/H.264)		Constant bit rate, Variable bit rate
Audio Support		Yes
Built-in microphone		Yes
Microphone/Line Input		Yes
Audio Output		Yes
SD memory Card Slot		microSD
Ambient Operating Humidity		10-90
Vandal Resistant		–
Water and Dust Resistance		–
ClearSight Coating / Rain Wash Coating		–
Temperature (degree, Celsius)	MAX	50
Temperature (degree, Celsius)	MIN	-30
Temperature (degree, Fahrenheit)	MAX	122
Temperature (degree, Fahrenheit)	MIN	-22
Power Source		PoE, 24V AC, 12V DC
SSL device certificate		–
ONVIF Profile		S, G
