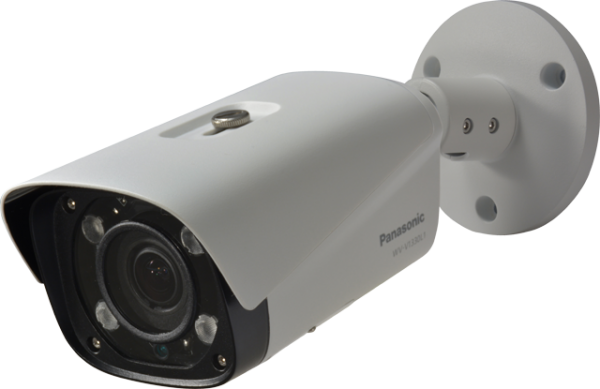

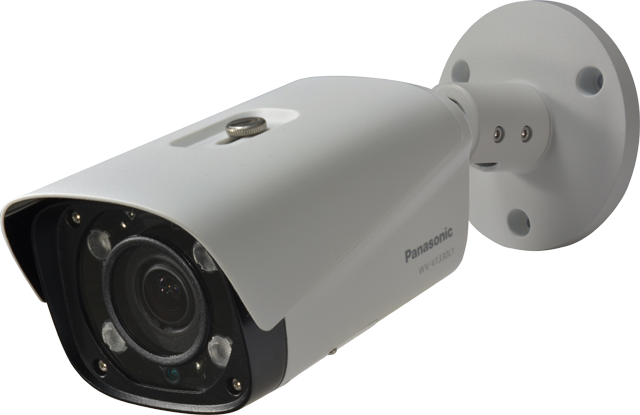

Camera IP Panasonic WV-V1330L1 – IP Camera / Network Camera
Full HD Weatherproof Box type Network Camera
• High-performance CMOS image sensor.
• Vari Focal : 2.7 mm to 12 mm
• H.265 / H.264 & MJPEG triple-stream encoding
• 25/30fps@1080P (1920 ×1080).
• Support ICR for day time and night time operation.
• Max. IR LEDs length 60 m {Approx. 196 ft}
• IP66 rated water and dust resistant.
• PoE. (IEEE802.3af conpliant)
|
Indoor / Outdoor
|
Outdoor
|
|
|---|---|---|
|
Image sensor
|
1/2.8 MOS
|
|
|
Min. Illumination Color (lx)
|
0.2
|
|
|
Min. Illumination B/W (lx)
|
0 (w/IR-LED)
|
|
|
Maximum Resolution
|
Full HD (1,080p)
|
|
|
Maximum FPS
|
25 / 30
|
|
|
Super Dynamic
|
–
|
|
|
Image compensation
|
Back light compensation (BLC), High light compensation (HLC), Digital noise reduction
|
|
|
Color/BW
|
ICR
|
|
|
IR LED
|
Yes
|
|
|
Privacy Zone
|
4
|
|
|
iA (Intelligent Auto)
|
–
|
|
|
Intelligent VMD (i-VMD)
|
–
|
|
|
Focal length
|
f=2.7-12mm, F1.4
|
|
|
Zoom ratio
|
4.4x
|
|
|
Angular field of view (16:9)
|
H: 37-99 deg. V: 21-52 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.265, H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate
|
|
|
Audio Support
|
–
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
–
|
|
|
Audio Output
|
–
|
|
|
SD memory Card Slot
|
microSD
|
|
|
Ambient Operating Humidity
|
10-90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
IP66 (IEC60529)
|
|
|
Temperature (degree, Celsius)
|
MAX |
60
|
| MIN |
-30
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
140
|
| MIN |
-22
|
|
|
Power Source
|
PoE, 12V DC
|
|
|
SSL device certificate
|
–
|
|
|
ONVIF Profile
|
S, G
|
|
