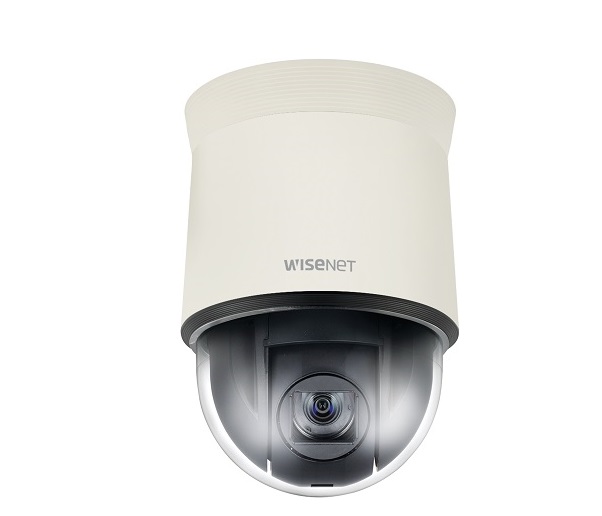

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET XNP-6320/VAP

– Độ phân giải: 2.0 Megapixel.

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET XNP-6320/VAP

– Camera IP PTZ cao cấp Hanwha Techwin WISENET cho hình ảnh chất lượng cao, chẩn đoán hình ảnh thông minh, có chế độ quan sát tự động theo lộ trình, không bị giới hạn góc nhìn, độ quan sát xa, lấy nét nhanh và không bị rung, vỡ hình.

– Độ phân giải: 2.0 Megapixel.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Ống kính quang học: 4.44~142.6mm.

– Zoom quang học: 32x, tự động lấy nét.

– Hỗ trợ thẻ nhớ đến 512GB.

– Hỗ trợ Multiple streaming, WiseStreamII.

– Hỗ trợ chế độ ngày và đêm (ICR).

– Hỗ trợ chức năng chống ngược sáng WDR (150dB).

– DIS with Built-in Gyro sensor .

– Auto tracking, Intelligent video analytics.

– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10 (with SHP-3701H).

Đặc tính kỹ thuật

Model	XNP-6320/VAP
Video
Imaging Device	1/2.8′ 2MP CMOS
Effective Pixels	1944(H)x1212(V)
Min. Illumination	Color: 0.05Lux(F1.6, 1/30sec) B/W: 0.005 Lux(F1.6, 1/30sec)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)	4.44~142.6mm(32x) zoom
Max. Aperture Ratio	F1.6(Wide)~F4.4(Tele)
Angular Field of View	H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
Min. Object Distance	Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control	Oneshot AF
Lens Type	DC auto iris
Pan/Tilt/Rotate
Pan Range	360˚ Endless
Pan Speed	Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Tilt Range	210˚(-15˚~195˚)
Tilt Speed	Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Sequence	Preset(300ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule
Preset Accuracy	±0.2˚
Azimuth	Support
Auto Tracking	Support
Operational
Camera Title	Displayed up to 85 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	150dB
Digital Noise Reduction	SSNRⅤ
Digital Image Stabilization	Support(built-in gyro sensor)
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	24ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Gain Control	Low/Middle/High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Serial Interface	RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O	Input 4ea / Output 2ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
Audio In	Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio Compression	G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface	ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory	1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity	-10°C~+55°C(-14°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C~+60°C(-22°F~+140°F) / Less than 90% RH
Electrical
Input Voltage	PoE+(IEEE802.3at, Class4), 24VAC
Power Consumption	24VAC: Max 20W
Mechanical
Color / Material	Ivory / Plastic+Aluminum
Product dimensions / weight	Ø152x218mm(5.98×8.58 inches), 1.7Kg(3.75 lb)

– Xuất xứ: Việt Nam.

– Bảo hành: 24 tháng.
