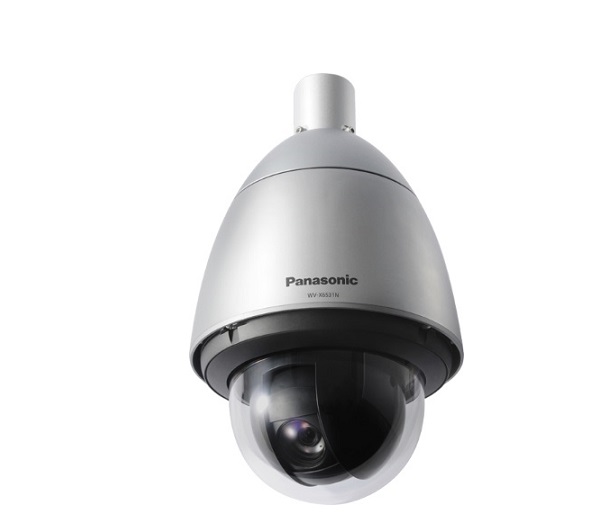

Camera IP Speed Dome 3.0 Megapixel PANASONIC WV-X6531N
– Độ phân giải camera ip: 3.0 Megapixel.
Camera IP Speed Dome 3.0 Megapixel PANASONIC WV-X6531N
– Cảm biến hình ảnh: Approx. 1/2.8 type MOS image sensor.
– Độ phân giải camera ip: 3.0 Megapixel.
– Tốc độ khung hình: Lên đến 60 fps.
– Ống kính: 4.25 mm – 170 mm.
– Độ nhạy sáng tối thiểu: Color: 0.015lx, BW: 0.006lx.
– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nguồn điện:
+ AC24V/ 3.4A, Approx. 55W.
+ PoE+ (IEEE802.3at compliant): DC 54V/ 470 mA, Approx. 25W.
+ Tested POE Injector (60W): DC 54V/ 1.0A, Approx. 50W.
Đặc tính kỹ thuật
| Model | WV-X6531N |
| Camera | |
| Image Sensor | Approx. 1/2.8 type MOS image sensor |
| Minimum Illumination | – Color: 0.015 lx, BW: 0.006 lx (F1.6, Maximum shutter: Off (1/30s), AGC: 11) – Color: 0.001 lx, BW: 0.0004 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On/ Off |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic: On) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type4 *Bundled License |
| Stabilizer | On/ Off (available only in the 30 fps mode) |
| Privacy Zone | Filling/ Pixelate/ Off (up to 32 zones available) |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Zoom Ratio | 40x Optical 60x HD Extra Optical Zoom (when resolution is 1280×720) |
| Digital (electronic) zoom | 16x |
| Focal length | 4.25 mm – 170 mm {5/32 inches – 6-11/16 inches} |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 4.95 (TELE) |
| Focus range | 3.0 m {9 ft 10-1/8 inches} – ∞ |
| Angular Field of view | – [16 : 9 mode] Horizontal: 2.1 ° (TELE) – 65 ° (WIDE) Vertical: 1.2 ° (TELE) – 39 ° (WIDE) – [4 : 3 mode] Horizontal: 1.6 ° (TELE) – 51 ° (WIDE) Vertical: 1.2 ° (TELE) – 39 ° (WIDE) |
| Pan/tilt | |
| Panning Range | 360° Endless panning |
| Panning Speed | Manual: Approx. 0.065°/s – 120°/s Preset: Up to approx. 300°/s |
| Tilting Range | Operational range: –15° – 195° (level – downward – level) Recommended range: 0° – 180° Selectable tilting angle: 10 °/ 5 °/ 3 °/ 0 °/ –3 °/ –5 °/ –10 °/ –15 ° |
| Tilting Speed | Manual: Approx. 0.065°/s – 120°/s Preset: Up to approx. 300°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto track/ Auto pan/ Preset sequence/ Patrol |
| Self Return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min |
| Browser GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Auto mode, Brightness, Preset, AUX, Rec. on SD, Log, Viewer software |
| Audio | – Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High – Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | – 2 Megapixel [16 : 9] (30/60 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 – 3 Megapixel [4 : 3] (30 fps) 2048×1536*/ 1280×960/ 800×600/ VGA/ 400×300/ QVGA *Used by super resolution techniques |
| H.265/ H.264 | – Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast |
| JPEG | Image Quality: 10 steps |
| Smart Coding | – Smart Facial Coding*: On (Smart Facial Coding)/ On (AUTO VIQS)/ Off *Smart Facial Coding is only available with Stream(1). – GOP (Group of pictures) control: On(Frame rate control)*/ On (Advanced)*/ On (Mid.)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | – H.265/ H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card: Panasonic 2GB, 4GB*, 8GB*, 16GB*, 32GB*, 64GB**, 128GB**, 256GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibilit | iPad/iPhone, Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm, Auto track alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack (Audio input is monaural.) Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 4.0 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (Audio output is monaural.) Output impedance: Approx. 600 Ω (unbalanced) |
| External I/O Terminals | ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2(Alarm input 2/ ALARM OUT), ALARM IN3 (Alarm input 3/ AUX OUT) (x1 for each) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | AC24 V 3.4A, Approx. 55W PoE+ (IEEE802.3at compliant): DC 54V/470 mA, Approx. 25W Tested POE Injector (60 W): DC 54V/ 1.0A, Approx. 50W |
| Ambient Operating Temperature | –50 °C to +60 °C {–58 °F to +140 °F} (AC 24 V/ Tested PoE injector (60 W)) –30 °C to +60 °C {–22 °F to +140 °F} (PoE+ device) {Power On range: –30 °C to +60 °C (–22 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC62262) |
| Dimensions | Maximum ø229 mm × 393 (H) mm {ø9-1/32 inches × 15-15/32 inches (H)} |
| Mass (approx.) | Approx. 5.2 kg {11.47 lbs} |
| Finish | Main body: Aluminum die cast, Natural silver Sunshields: ABS+PC resin coating, Natural silver Outer fixing screws: SUS (Corrosion-resistant treatment) Dome cover: Polycarbonate resin (with ClearSight coating (rain wash coating)), Clear |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
