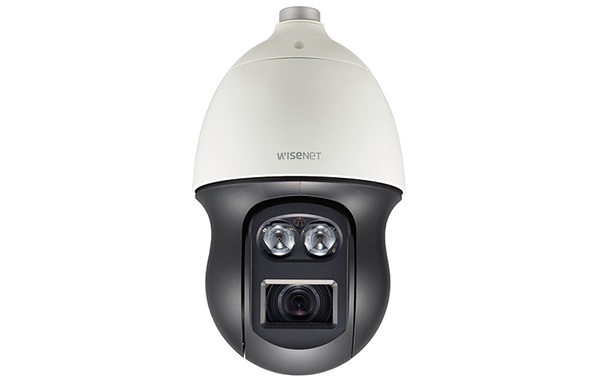

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QNP-6230RH/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Mã: QNP-6230RH Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET QNP-6230RH/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Độ phân giải camera ip: 2.0 Megapixel.

– Độ nhạy sáng: 0.05Lux (F1.6, 1/30sec) (Color), 0Lux (IR LED On) (BW).

– Ống kính: 4.44 ~ 102.2mm.

– Tầm quan sát hồng ngoại: 100 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR.

– Chức năng giảm nhiễu số SSNRV.

– Chức năng chống ngược sáng Defog.

– Chức năng ổn định hình ảnh số DIS (cảm biến con quay hồi chuyển tích hợp).

– Ethernet: RJ-45(10/100BASE-T).

– Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện: 24VAC.

Đặc tính kỹ thuật

Model	QNP-6230RH
Video
Imaging Device	1/2.8 inch 2MP CMOS
Effective Pixels	1944(H) x 1212(V)
Min. Illumination	Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux (IR LED On)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio)	4.44~102.2mm (23x) zoom
Max. Aperture Ratio	F1.6 (Wide)~F3.6 (Tele)
Angular Field of View	H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele)
Min. Object Distance	Wide: 1.5m(4.92ft), Tele: 2m(6.56ft
Focus Control	Oneshot AF
Lens Type	DC auto iris
Pan / Tilt / Rotate
Pan Range	360˚ Endless
Pan Speed	Preset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range	95˚(-5˚~90˚)
Tilt Speed	Preset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec
Sequence	Preset (300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy	±0.2˚
Azimuth	Support
Operational
IR Viewable Length	100m (328.08ft)
Camera Title	Displayed up to 85 characters
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
BLC, HLC, WDR, SSDR	120dB
Digital Noise Reduction	SSNRⅤ
Digital Image Stabilization	Support (built-in gyro sensor)
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	24ea, rectangular Support – Color: Grey/ Green/ Red/ Blue/ Black/ White – Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror
Analytics	Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Serial Interface	RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O	Input 4ea / Output 2ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
	PTZ Preset
Audio In	Selectable(mic in/line in)
Audio In	Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
Network
Ethernet	RJ-45(10/100BASE-T), SFP(Optional)
Video Compression	H.265/H.264,MJPEG
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max. 30fps/25fps (60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec	Manual (5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio Compression	G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 1slot 256GB
Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari (Mac OS X only)
Memory	1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity	24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH (Start up should be done at above -35°C)
Storage Temperature / Humidity	-50°C~+60°C (-58°F~+140°F) / Less than 90% RH
Certification	IP66, IK10
Electrical
Input Voltage	24VAC, HPoE(IEEE802.3bt, Class7)
Power Consumption	24VAC: Max. 83W (typical: 30W) HPoE : Max. 51W (typical : 30W)
Mechanical
Color / Material	Body: Ivory / Plastic, Head: Black / Plastic
Dimensions	Ø236.9×407.7mm
Weight	6.8kg

– Xuất xứ: Việt Nam.

– Bảo hành: 24 tháng.
