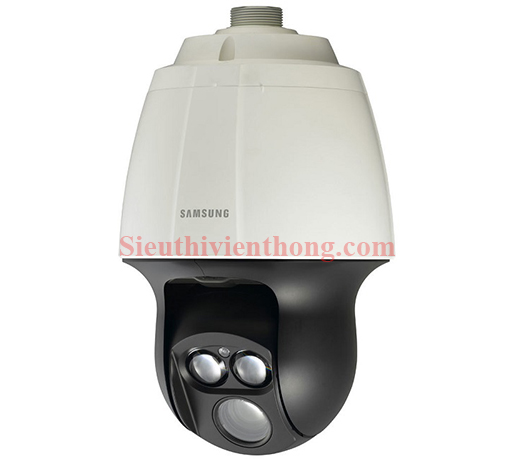

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET SNP-L6233RH/VAP

-Chuẩn nén hình ảnh: H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET SNP-L6233RH/VAP

-Cảm biến hình ảnh: 1/2.8 inch CMOS.

-Chuẩn nén hình ảnh: H.264, MJPEG.

-Độ phân giải camera ip: 2.0 Megapixel.

-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 128GB.

-Ống kính: 4.4 ~ 101.2mm.

-Zoom quang: 23x.

-Zoom số: 12x.

-Góc quan sát theo chiều ngang: 63.68º (Wide) ~ 3.1º (Tele)/ theo chiều dọc: 37.52º (Tele).

-Số đèn LED hồng ngoại: 2 đèn LED hồng ngoại.

-Tầm quan sát hồng ngoại: 100 mét.

-Chức năng quan sát Ngày và Đêm (ICR).

-Chức năng giảm nhiễu số 2D + 3D.

-Chức năng ổn định hình ảnh số DIS.

-Chức năng chống sương mù Defog.

-Chức năng phát hiện chuyển động: Off / On (4ea, Rectanglular zones).

-Chức năng vùng riêng tư: Off / On (32ea, Rectanglular zones) (Color) Grey / Green / Red / Blue / Black / White.

– Zoom ratio option for mask mode.

-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).

-Chức năng điều chỉnh độ lợi AGC.

-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

-Tiêu chuẩn chống va đập: IK10.

-Nguồn điện cung cấp: 24VAC.

-Công suất tiêu thụ: Tối đa 30W.

-Kích thước: Ø248.0 x 399.5mm.

-Trọng lượng: 7.1kg.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V), 2.18M pixels / 1,944(H) x 1,104(V), 2.14M pixels
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux (1/30sec, F1.6, 50IRE), 0.005Lux (2sec, F1.6, 50IRE)
Min. Illumination	0.1Lux (1/30sec, F1.6, 30IRE), 0.0005Lux (2sec, F1.6, 30IRE). B/W: 0Lux (IR LED on)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens
Focal Length (Zoom Ratio)	4.44 ~ 102.1mm (Optical 23x)
Max. Aperture Ratio	F1.6(Wide) / F4.5(Tele)
Angular Field of View	H: 63.68º (Wide) ~ 3.1º (Tele) / V : 37.52º (Wide) ~ 1.76º (Tele)
Min. Object Distance	Wide: 1.5m (4.92ft), Tele: 1.9m (6.23ft)
Focus Control	Auto / Manual / One push
Mount Type	DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	360º Endless / 210º (-15º ~195º)
Pan / Tilt Speed	Preset: 500º/sec, Manual: 0.024º/sec ~ 120º/sec
Sequence	Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
Preset Accuracy	±0.2º
Azimuth	Yes (E / W / S / N / NE / NW / SE / SW)
Auto Tracking	Off / On
Operational
IR LED	2ea
Viewable Length	100m
Camera Title	Off / On (Displayed up to 15 characters)
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC / HLC / WDR
Wide Dynamic Range	100dB
Contrast Enhancement (DWDR)	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea rectangular zones)
Privacy Masking	Off / On (32ea, Rectanglular zones)- Color: Grey / Green / Red / Blue / Black / White, – Zoom ratio option for mask mode
Gain Control	Off / Low / Middle / High/ Manual
White Balance	ATW / AWC / Manual / Indoor / Outdoor/ Mercury / Sodium
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	12x, area zoom funtion support digital zoom 2x
Flip / Mirror	Off/ On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 4ea / Output 2ea (Relay)
Remote Control Interface	RS-485/ 422
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Frame rate	H.264: Max. 60fps at all resolutions
	MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: Max. 15fps
	800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180: Max. 30fps
Smart Codec	Manual mode (Area-based: 5ea), Face detection mode
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Audio In	Selectable (Mic in / Line in), Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio I/O	Line out (3.5mm mono jack), Max output level: 1 Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Storage	SD/SDHC/SDXC (Up to 128G)
Storage	Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface	ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2, Samsung Techwin Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7. Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer, SSM
Ingress Protection / Vandal Resistance	IP66 / IK10
ELECTRICAL
Input Voltage / Current	24VAC only / 6A
Power Consumption	Max. 30W (Heater off) / Max. 35W/90W (Heater off/on, IR on)
Color/ Material	Ivory / Aluminum
Dimensions	Ø248.0 x 399.5mm
Weight	7.1kg

-Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Việt Nam.

-Bảo hành: 24 tháng.
