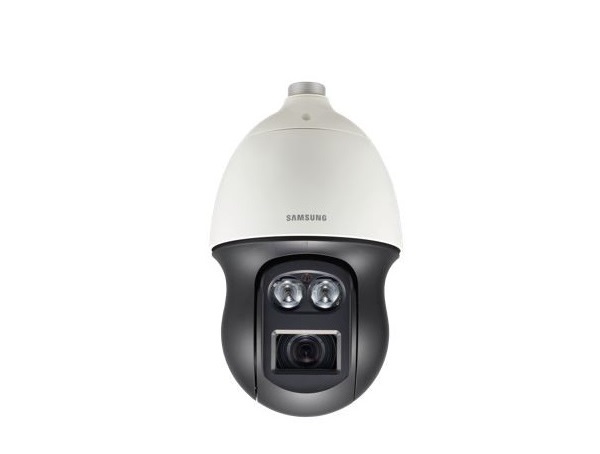

Camera IP Speed Dome hồng ngoại 8.0 Megapixel SAMSUNG PNP-9200RHP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG, Wise Stream.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome hồng ngoại 8.0 Megapixel SAMSUNG PNP-9200RHP

– Cảm biến hình ảnh: 1/2.5 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG, Wise Stream.

– Độ phân giải camera ip: 8.0 Megapixel.

– Ống kính: 4.8 ~ 96mm.

– Zoom quang: 20x.

– Zoom số: 16x.

– Tầm quan sát hồng ngoại: 200 mét.

– Chức năng quan sát ngày và đêm (ICR).

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng phân tích Video thông minh.

– Chức năng Auto tracking.

– Đa ngôn ngữ.

– Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện cung cấp: 24VAC.

– Kích thước: Ø236.9 x 407.7mm.

– Trọng lượng: 7.1kg.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.5 inch 8M CMOS
Total Pixels	3,864(H) x 2,202(V), 8.51Megapixels/ 3,840(H) x 2,160(V), 8.00Megapixels
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux/ F1.8 (1/30sec, F1.8, 50IRE), 0.005Lux (2sec, F1.8, 50IRE)
	0.1Lux/ F1.8 (1/30sec, F1.8, 30IRE), 0.0005Lux (2sec, F1.8, 30IRE)
	B/W: 0 Lux (IR LED on)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens
Focal Length (Zoom Ratio)	4.8 ~ 96mm (Optical 20x)
Max. Aperture Ratio	F1.6 (Wide) / F3.63 (Tele)
Angular Field of View	H: 56.8º (Wide) ~ 2.8º (Tele) V: 46.3º (Wide) ~ 2.24º (Tele)
Min. Object Distance	Wide: 1.5m (4.92ft), Tele: 2m (6.56ft)
Focus Control	Auto/ Manual/ One push
Mount Type	DC auto iris/ Board-in type
Pan/ Tilt
Pan/ Tilt/ Rotate Range	360º Endless / Preset: 400º/sec, Manual : 0.024˚/sec ~ 250˚/sec
Pan/ Tilt Speed	190º (-5º ~18º ) / Preset: 300º/sec, Manual : 0.024˚/sec ~ 250˚/sec
Sequence	Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
Azimuth	Yes (E/ W/ S/ N/ NE/ NW/ SE/ SW)
Auto Tracking	Off/ On
Operational
Viewable Length	200m
Camera Title	Off/ On (Displayed up to 60 characters)
	– W/W: English/ Numeric/ Special characters
	– Korea: English/ Numeric/ Special/ Korean characters
	– China: English/ Numeric/ Special/ Chinese characters
	– Common: Multi-line (Max. 5), Color (Grey/ Green/ Red/ Blue/ Black/ White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC/ WDR
Wide Dynamic Range	120dB
Contrast Enhancement (DWDR)	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off/ On
Defog	Off/ Auto / Manual
Motion Detection	Off/ On (4ea rectangular zones)
Privacy Masking	Off/ On (32 zones of rectangle zone) with zoom threshold mosaic option
Gain Control	Off/ Low/ Middle/ High
White Balance	ATW/ AWC/ Manual/ Indoor/ Outdoor
Electronic Shutter Speed	Minimum/ Maximum/ Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	16x, area zoom funtion support digital zoom 2x
Flip/ Mirror	Off/ On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 4ea/ Output 2ea (Relay)
Remote Control Interface	RS-485/422
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Frame rate	H.265/ H.264: 30fps at all resolutions, MJPEG: 15fps at all resolutions
Smart Codec	Yes
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Audio In	Selectable (Mic in/ Line in), Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio I/O	Line out (3.5mm mono jack), Max output level: 1 Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio (2 way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Storage	SD/SDHC/SDXC (128GB) – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), SVNP 1.2, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,Croatian, Hungarian, Greek, Finnish, Norwegian
	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Plug-in free Webviewer – Supported Browser: Google Chrome 47, MS Edge 20 Plug-in Webviewer – Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only
Central Management Software	SmartViewer
Ingress Protection	IP66
Vandal Resistance	IK10
ELECTRICAL
Input Voltage/ Current	24VAC
Power Consumption	Max. 60W/90W (Heater off/on, IR on)
Color/ Material	Ivory, Black / Aluminum, Plastic
Dimensions	Ø236.9 x 407.7mm
Weight	7.1kg

– Bảo hành: 12 tháng.
