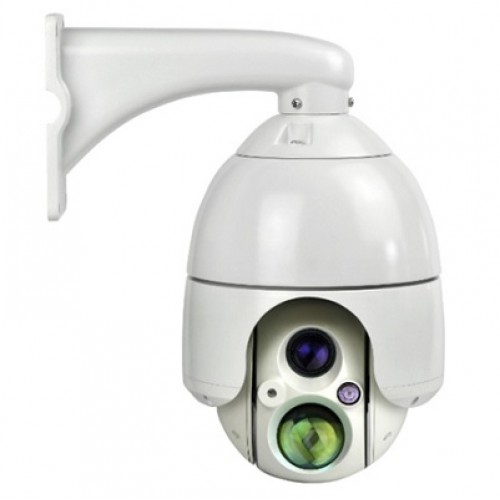

Camera PTZ Sambo HIR-P30WW-A

 Category

HIR-N30WW-A

(NTSC for Composite Output)

HIR-P30WW-A

(PAL for Composite Output)

Camera

Image Sensor

1/3” Panasonic CMOS Sensor

Resolution

2,000K Pixels

Zoom

Optical X30 & Digital X12

Focal Length

F1.6~4.7, f=4.3~129.0mm

Video Signal to Noise

50 dB

Angle of View

H : 58.9˚ (Wide) ~ 2.11˚ (Tele)  /  V : 45.3˚ (Wide) ~ 1.61˚ (Tele)

Focus Control

Auto / Manual / Semi Auto

AE Mode

Auto / Iris / Shutter / Manual / Brightness

White Balance

Auto / Manual (Red, Blue Gain Adjustable)

Day & Night

Auto / Day / Night (ICR)

Minimum Illuminance

0.5 Lux (Color) / 0.Lux (IR Mode)

BLC

ON / OFF

WDR

ON / OFF

Defog

ON / OFF

Aperture

Adjustable

NR (Noise Reduction)

Yes

Privacy Zone

8 Masks with Spherical Coordinate

Infrared

IR Range

150m

Synchronous zoom

IR lamp zoom in & out synchronously with zoom lens

IR light Source

Vari-focal IR-Ⅲ generation

IR Wave Length

850nm

IR Control

Auto/Manual

IR life

more than 20,000 hours

IR angle

7°～40° (Proportional to Zoom)

Pan/Tilt

Range

Pan : 360°(Endless) / Tilt : -20° ~ 90°

Pan/Tilt Speed

Preset : 240° / SEC

Manual : 0.05° ~ 240° / SEC. (Proportional to Zoom)

Swing : 10°~180° / SEC.

Preset

209 Presets (Label, Independent Camera Parameter Setting)

Pattern

4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern]

Swing

10 Swings

Group

8 Groups (MAX. 40 Actions with The Combination of Preset, Pattern and Swing)

Scheduler Function

8 Scheduler Functions with RTC(Real Time Clock)

Other Functions

Auto Flip, Auto Parking, Power-up Action & etc.

Video

Output

2 x BNC (AHD and CVBS)

AHD(2.0) Standard

AHD(2.0) Standard

Resolution : 1080p30fps, 720p60/30fps

Resolution : 1080p25fps, 720p50/25fps

CVBS

1.0 Vp-p

RTC(Real Time Clock)

YES (RTC Battery Backup Time : Approximate 2 Weeks)

OSD

English (Menu / Time / PTZ information, Password Protection, etc.)

Serial Port

Port

RS-485 for PTZ Control

Protocol

Pelco-D, Pelco-P Selectable

Sensor / Alarm

Sensor Input

2 Inputs, Photo-Coupler Type, DC 5V~12V

Alarm Output

1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A

Physical

Mount Bracket

Wall Mount Bracket or Ceiling Mount Bracket

Dimension

Body : 210(Ø) x 312(H) [mm]

Wall : 313 x 361mm,  Ceiling : Body : 210(Ø) x 483mm

Weight

Approximate 7 Kg  / with Wall Mount Bracket

Material

Aluminum

Rated Power

DC 12V / 3.5A

Waterproof

IP 66 Level

Operating Temp.

-10°C ~ 50°C / 14°F ~ 122°F

# Specification & Design are subject to change without prior notice.
