Đầu ghi hình 5 trong 1 8 kênh Sambo A-Lite 08

Model

a-Lite 08

Appearance

DVR

Video

Camera input

8 BNC

Individual HD/Analog selectable

Analog, AHD, TVI, CVI

Available source

TVI 720p25,30/1080p25,30/3MP@18
CVI, AHD 720p25,30/1080p25,30
/Composite/960H/Mixed

IP Camera

Spec

ONVIF 2.3, RTSP, H.264, dual stream
use gigabit ethnet hub

Num

2

Restriction

Cannot setup Private ZONE
Cannot support Timestamp

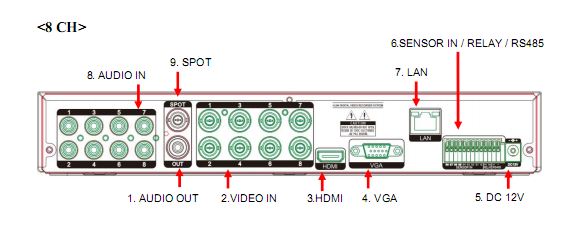

Output

1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT)

Audio

Audio input

8 RCA

Output

1 RCA

Sensor In

8 (NC, NO selectable)

Alarm out

1 relay

Operating System

Embedded Linux OS

Display

Speed

Real Time

Resolution (Pixel)

1280X1024, 1280X720, 1920X1080

Split screen

1,4,6,8,9

Main

Recording

CODEC

H.264

Resolution (Pixel)

3MP, 720p (3MP@18)
1080p, 720p (1080p@25,30)
720p, 960×540 (720p#25,30)
960H, D1(Composite, 960H)

Picture quality

4 steps (Super, High, Medium, Low)

Speed

120fps @ 1080p

Dual

Recording

CODEC

H.264

Resolution (Pixel)

480 x 256

 Playback

Display

1,4,6,8,9

Search mode

Calendar, Event ,POS , Panorama, Thumbnail

Speed

120fps

Fast/Slow speed

Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause

Network

(Individual setting of resolution, frame rates and picture quality)

Network Interface

Megabit Ethernet

Low Resolution (Pixel)

480×256 (3MP, 1080p, 720p)
CIF (Composite, 960H)

Speed

20fps @ 1080p

Protocol

TCP/IP, HTTP, DHCP

Application

Windows 7 / 8 / 10 (PC Client system& IE)/MAC

Web Browser

Internet Explorer, Safari, Chrome, Firefox

Smart phone App

Android, iPhone for live and search

 Backup

Interface

USB 2.0 X 2

Backup device

External HDD, CD&DVD-RW, Network, Thumb Drive

The number of HDD

1 SATA(No capacity limit ; 6TB of more)

Function

Full GUI with alpha blending

Individual setting of resolution, frame rates and picture quality

Instant Replay

Digital Zoom

Mouse Control

Weekly scheduler with holiday by 10 minutes setting

Covert, Disable and Private function of cameras

Motion Detection with 576 area setting

Relay alarm output

PTZ control by RS-485

Daylight Saving Time and Network Time Setting

Multi User Authority up to 8 Users

Deinterlacer upon live and playback

22 languages with full graphic

Individual Network port setting

Auto Deletion

Import and Export the configuration

Interactive setup via network

POS Interface

Mirroring

Dual CODEC engine for independent video transmission

Power Consumption

24W

Others

Operating Temperature

5 ~40℃(41~104F)

Relative Humidity

Maximum 80% non-condensing

Dimension

300(W)×210(D)×48(H) mm
