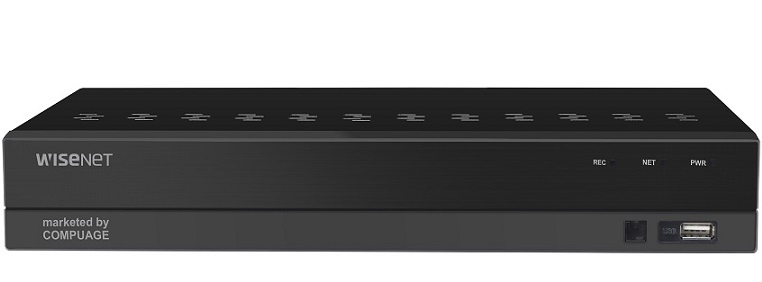

Đầu ghi hình AHD 8 kênh Hanwha Techwin WISENET ZRD-E820L/VAP

– AHD, TVI, CVI, CVBS analog input

Mã: ZRD-E820L/VAP Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình AHD 8 kênh Hanwha Techwin WISENET ZRD-E820L/VAP

– 8CH 1080N analog + 2CH network camera recording

– AHD, TVI, CVI, CVBS analog input

– H.264 supported

– Coaxial control

– HDMI / VGA video output

– Max. 1 internal HDDs

Đặc tính kỹ thuật

Model	ZRD-E820L/VAP
Display
Video Input	Analog Camera: 8CH BNC, PAL type AHD (720P, 1080P), TVI (720P, 1080P), CVI (720P, 1080P), CVBS 960H(960×576) Network Camera: Max. 2CH (up to 2MP)
Frame Rate	Analog Camera: 200fps@960×1080,1280×720, 960×576 Total IP Camera: 15fps@1920*1080
Resolution	960×1080(1080P-Lite)/ 1280×720 (HD) / 960 x 480 (960H)
Multi Screen Display	1/4/6/8/9/10/12/Auto Seq
Performance
Operating System	Embedded Linux
Compression	H.264
Mode	Manual, Schedule (Continuous/Event), Event (Pre/Post)
Event	Video Loss, Motion (Sensitivity Level 1~8), Tampering
Overwrite Modes	Off / On (Auto)
Pre-alarm	1 ~ 10sec
Post-alarm	Up to 5min (10 ~ 300 sec)
Search & Playback
Search Mode	Date/time, Event, Motion
Playback Function	Fast forward / backward (2x, 4x, 8x) Slow forward (1/2x, 1/4x, 1/8x) Step Forward
Network (IPv4)
Transmission Speed	Analog Camera: 96fps@960×1080 IP Camera: 15fps@1920*1080
Bandwidth	Up to 16Mbps
Max. Remote Users	Max 7 (admin+user)
Protocol Support	TCP/IP, UDP/IP, UDP
Monitoring	HD E-Viewer II (Client & Mobile Viewer)
Internal HDD	1 SATA HDD * Support max. 6T/HDD
External (e-SATA Interface)	RF, AVI, MP4
Interface
Monitors	VGA: 1080P (Source: 960 x 1080), 720P, 1024×768 1 HDMI: 1080P (Source : 960 x 1080), 720P, 1024×768
Audio Inputs/ Output	1/1
Audio Compression	G.711a
Remote Notification	Notification via e-mail
Ethernet	1 RJ45 10/100Base-T
USB	2 x USB 2.0
General
Input Voltage/ Current	12V/2A DC Adaptor
Power Consumption	<6W
Operating Temperature	0°C~+40°C
Dimensions (WxHxD)	230 x 208.7 x 48 mm
Weight	0.7kg

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Xuất xứ: Việt Nam.

– Bảo hành: 24 tháng.
