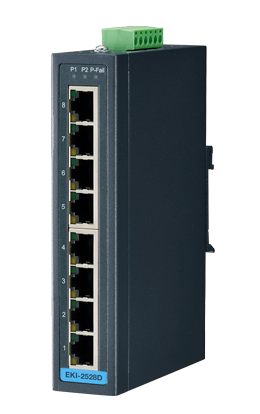

Switch Advantech EKI-2528DI
8FE DNV Unmanaged Ethernet Switch, -40~75℃
- Provides 8-port Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- EKI-2528DI supports wide operating temperatures from -40 to 75°C
- DNV certificate
The EKI-2528D/DI is DNV certificate product supports 8-port Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2528D/DI has 2 LED’s to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will
activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2528D/DI comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2528D/DI comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Part Number
- Details
-
EKI-2528DI-AE
- Ethernet Port Count
- Mounting
- Power
- Technology
- Temperature
- Unmanaged
- 8
- DIN, Panel
- 12-48VDC
- Ethernet
- -40 to 75C
- Yes
- Description
- Total Port Number
- 8 x 10/100Base-T(X)
- 8
- EMI
- EMS
- Safety
- FCC Part 15 Subpart B Class A, EN 55022 Class A
- EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
- DNVGL
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- -40°C (-40°F)
- 75°C (167°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- Fiber Transmission Speed
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- –
- –
- –
- –
- –
- 8
- RJ45
- 100 m
- 10/100 Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Yes
- –
- –
- Yes
- –
- –
- 30 x 140 x 95 mm (1.18” x 5.51” x 3.74)
- Yes
- –
- IP30
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (AC)
- Power Input (DC)
- Power Input (PoE)
- Power Input (Battery)
- Redundant Dual Inputs
- 6-pin removable screw terminal
- 3.93 W
- –
- 12 ~ 48 VDC, Marine 24VDC
- –
- –
- Yes
- Layer 2 – Unmanaged Switch
- Yes
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
