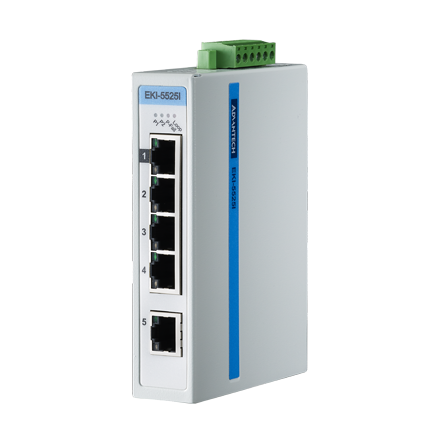

Switch Advantech EKI-5525I
5FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- 40~75°C operating temperature range
- 8.4~52.8 V DC wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports redundant 12~48V DC power input and P-Fail relay
- Loop detection
The EKI-5525/I and EKI-5528/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay
the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.
the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.
- Part Number
- Details
-
EKI-5525I-AE
- Ethernet Port Count
- Mounting
- Power
- Technology
- Temperature
- Unmanaged
- 5
- DIN, Panel
- 12-48VDC
- Ethernet
- -40 to 75C
- Yes
- Description
- Total Port Number
- 5 x 10/100 RJ45
- 5
- EMI
- EMS
- Safety
- FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- IIEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- -40°C (-40°F)
- 75°C (167°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- Fiber Transmission Speed
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- –
- –
- –
- –
- –
- 5
- RJ45
- 100 m
- 10/100 Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Weight
- Yes
- –
- –
- Yes
- –
- –
- 27 x 120 x 84 mm
- Yes
- –
- IP30
- 400g
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (AC)
- Power Input (DC)
- Power Input (PoE)
- Power Input (Battery)
- Power Operating Current
- Redundant Dual Inputs
- 6-pin removable screw terminal ((power & relay)
- Max. 2 W
- –
- 12 ~ 48 VDC
- –
- –
- 0.06A @ 24V
- Yes
- Layer 2 – Unmanaged Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- 9,216 bytes
- 2K
- 1M bit
- 1.0Gbps
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
