Camera IP EYENOR ENR-02016-N-4K | Made in UK
16CH 4K Embedded Network Video Recorder
Overview
16-Channel Input, Third-party IP cameras supported with ONVIF conformance, Support 1-ch HDMI, 1-ch VGA, Support H.265+,H.265,H.264 video formats, Up to 8 Megapixels resolution recording, 2 SATA HDDs, up to 10TB for each HDD, Support for P2P, UPnP, NTP, DHCP, PPPoE, Support IOS, Android, Cloud upgrade, HDMI and VGA simultaneous output
Specification
|
MODEL |
Model No. |
ENR-02016-N-4K |
|
Type |
16Ch Embedded Network Video Recorder |
|
|
VIDEO / AUDIO INPUT & OUT |
Video Input |
16ch |
|
Incoming Bandwidth |
112Mbps |
|
|
Outgoing Bandwidth |
96Mbps |
|
|
HDMI/VGA Output |
HDMI: 4K (3840×2160)@30, [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]:[email protected], [email protected], [email protected], [email protected], [email protected] | |
|
Audio Output |
1-ch, RCA |
|
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Synchronous Playback |
16-Ch |
|
|
DECODING |
Compression |
H.265+, H.265/H.264 |
|
Live view/ Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
1 x [email protected], 1 x [email protected], 1 x [email protected], 2 x [email protected], 4 x [email protected], 8 x [email protected], 16 x D1 |
|
|
HARD DISK |
SATA |
2 SATA interface |
|
Capacity |
Up to 10TB for each disk |
|
|
NETWORK |
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
USB Interface |
Rear panel?1 x USB2.0, Front panel?1 x USB2.0 | |
|
Power Supply |
DC 12V |
|
|
GENERAL |
Power Consumption |
< 7 W |
|
Operating Temperature |
-10°C ~ 55°C |
|
|
Operating Humidity |
10% – 90% RH |
|
|

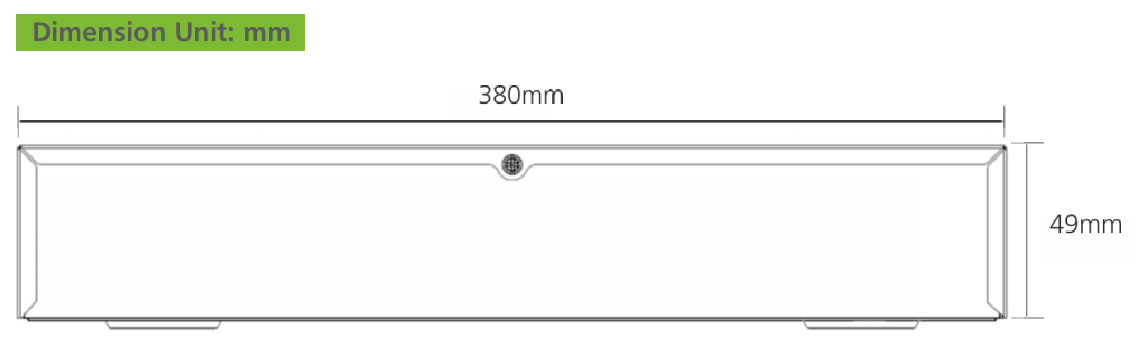

Dimension |
380x315x49mm |
|
|
Weight |
≤ 1.6 Kg |
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENR-02016-N-4K |
16Ch Embedded Network Video Recorder with 2 HDD Bays Supports 4K Cameras, HDMI, VGA and ONVIF |
1 |
Downloads
| Datasheet | 146.71KB | DOWNLOAD |
