Camera NVR EYENOR ENR-04016-N-16PK | Made in UK

MODEL

Model No.

ENR-04016-N-16PK

ENR-04032-N-16PK

Type

16Ch Embedded Network Video Recorder

32 Ch Embedded Network Video Recorder

NETWORK

Incoming Bandwidth

160Mbps

320Mbps

Outgoing Bandwidth

320Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

VIDEO & AUDIO

IP Video Input

16-Ch

32-Ch

Two-way Audio Input

1-Ch, RCA

HDMI/VGA Output

HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,
1024×768 /60Hz
HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz,
1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-Ch, RCA

Synchronous Playback

16-Ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

3/4/5/7/9/10/12/16/32

DECODING

Decoding format

H.265+, H.265, H.264

Live view/Playback

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

[email protected], [email protected], [email protected], [email protected], [email protected]

HARD DISK

SATA

4 SATA Interfaces

Capacity

Up to 10TB for each HDD

INTERFACE

Network Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0

Serial Interface

1 x RS485

Alarm In

16 Ch

Alarm Out

4 Ch

Power Output

12 VDC

PoE

Interface

16 independent 100 Mbps PoE network interfaces

Max Power

Max 30W for single port Max 200W in total ( 12.5W for each )

Supported Standard

IEEE 802.3at

PoE

Interface

16 independent 100 Mbps PoE Network interfaces

Max Power

Max 30W for single port, Max 200W in total (12.5W for each)

Supported Standard

IEEE 802.3at

GENERAL

Power Supply

100 ~ 240 V AC, Power Consumption: ≤ 20 W( without HDD )

Working Environment

-10°C ~ + 55°C, Humidity ≤ 90% RH(Non-condensing)

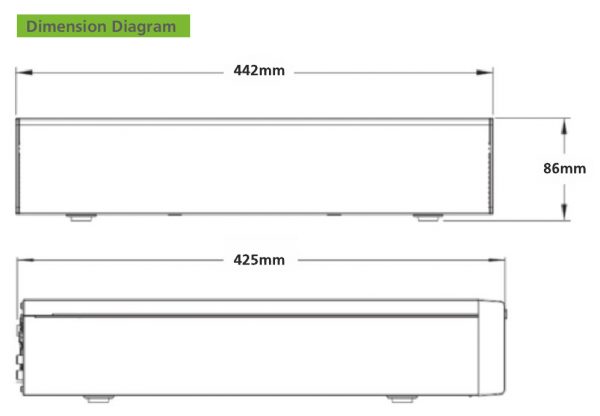

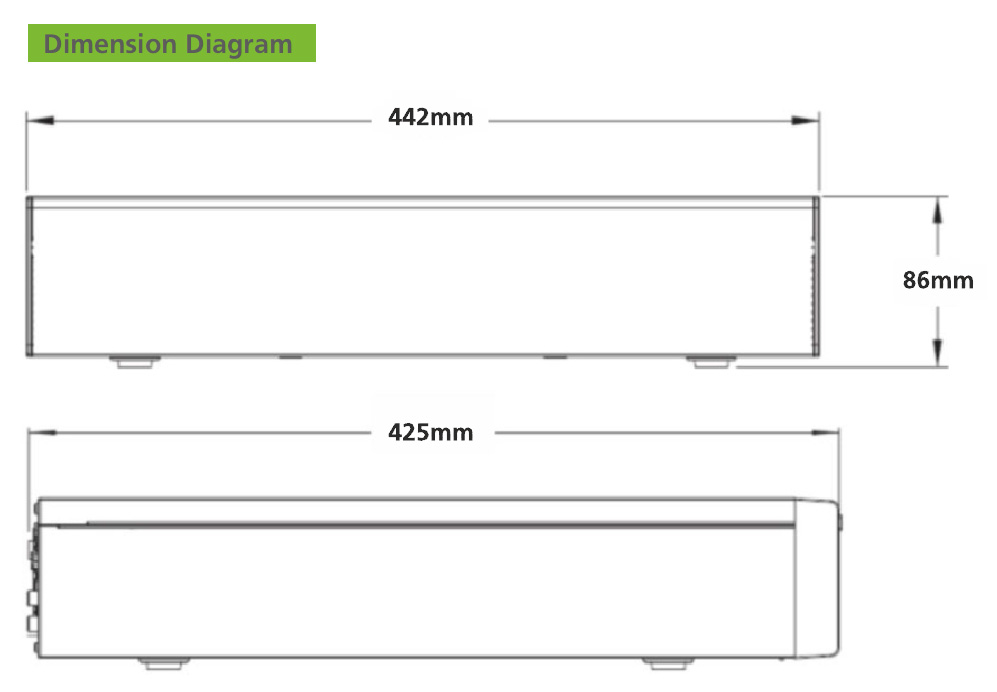

Dimensions

442x425x86mm

Weight

≤ 5.24 Kg
