Antaira FCN-3112SFP

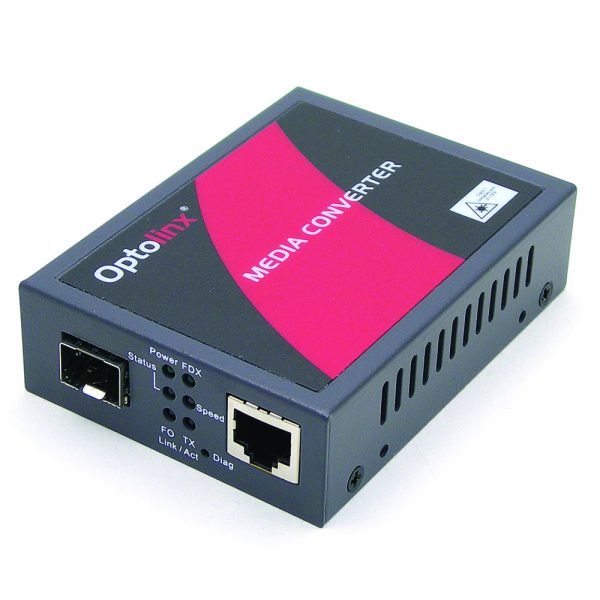

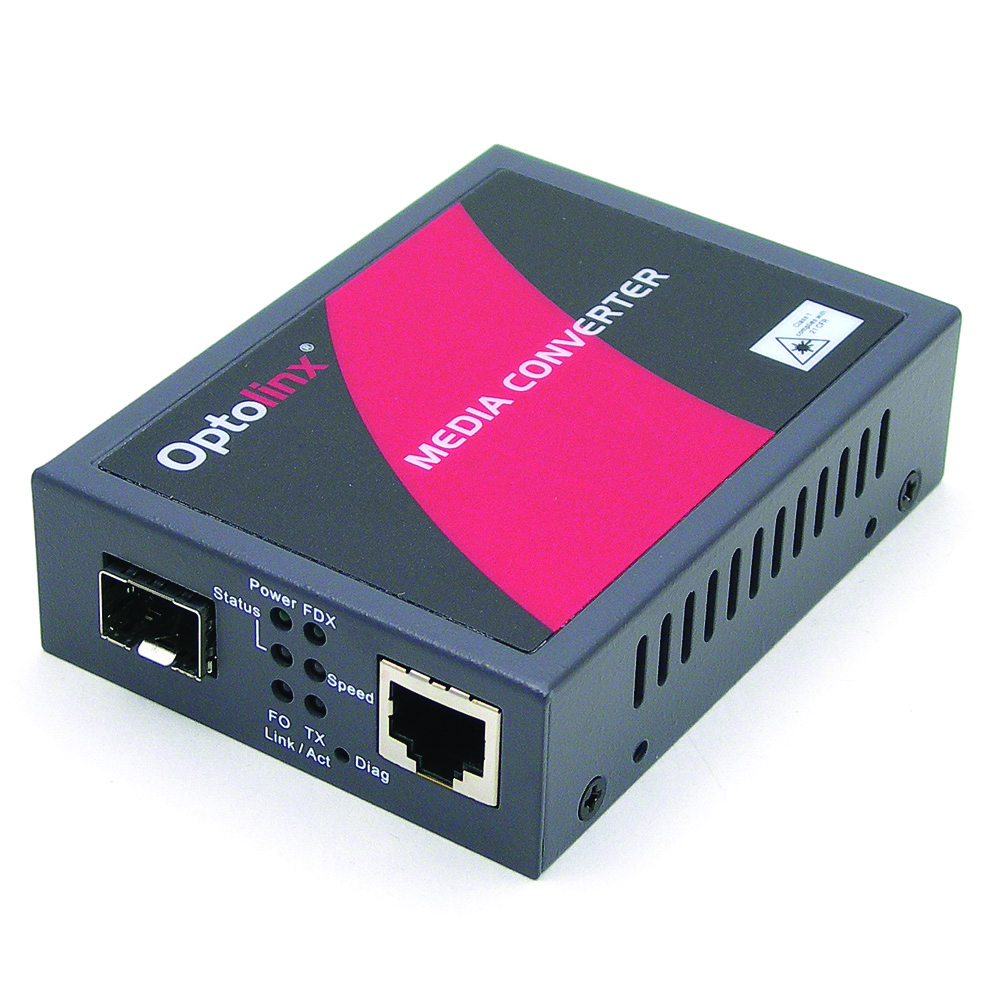

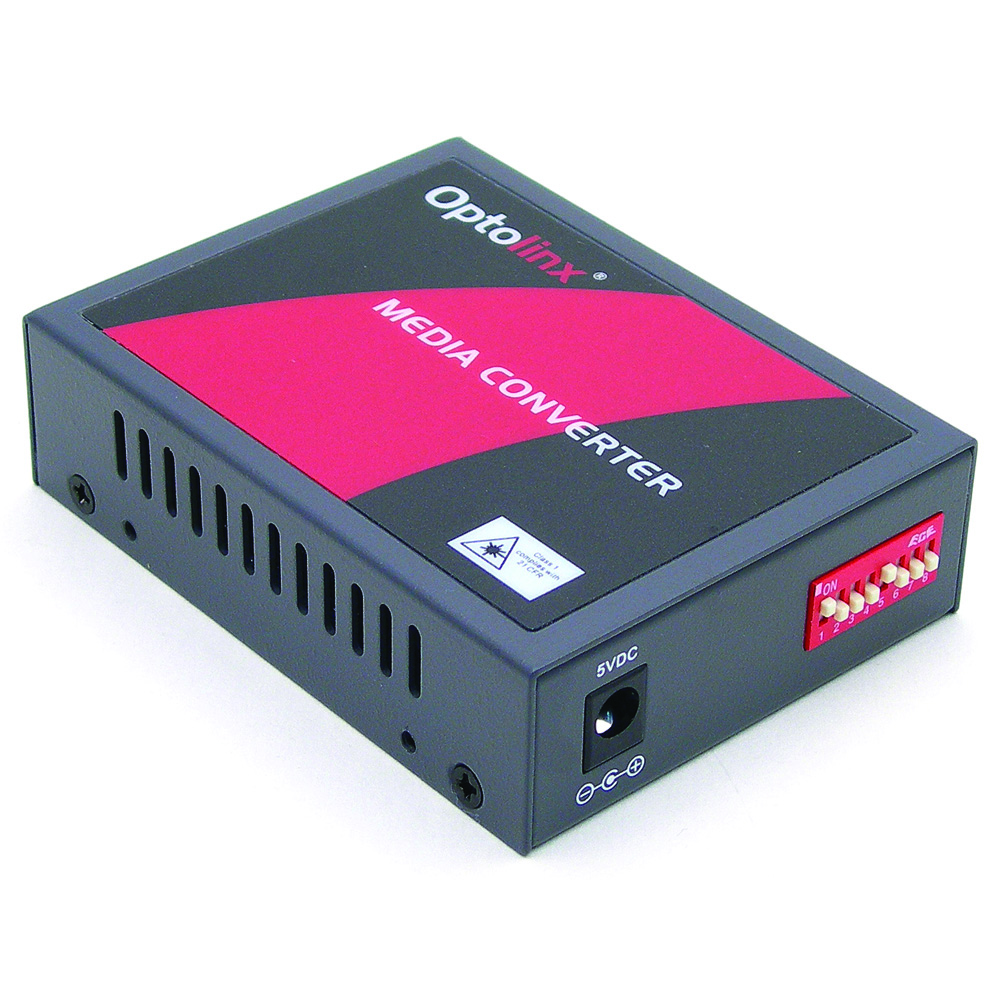

Antaira Technologies FCN-3112SFP is a managed, SNMP capable, SFP Gigabit Ethernet converter. The FCN-3112SFP will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The FCN-3112SFP features a standard SFP fiber connector as well as
the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3u, 802.3ab & 802.3z standards. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCN-3112SFP
is a hot swapable gigabit media converter that will accept standard SFP modules.

• Complies with IEEE 802.3 10Base-T
• Complies with IEEE 802.3u 100Base-TX
• Complies with IEEE 802.3ab 1000Base-T
• Complies with IEEE 802.3z 1000Base-X
• Store and Forward Switching Mechanism
• Auto-Negotiation in TP port
• Auto-Cross over for MDI/MDIX in TP port
• Supports SFF-8472 DMI
• Supports Flow Control
• Supports Jumbo frame 9K bytes
• Supports Link Alarm
• Supports Loopback test
• Supports Selectable ISP Ethernet Tag Type
• Supports Q-in-Q Double Tag configuration
• Supports Bandwidth Control
• Supports DHCP Client
• Supports SNMP/Web Managed interface
• Supports SNMP v1 and v2c
• Supports HTTP Firmware Upgrade
• Supports Power Down Trap Management
• 5-Year Warranty
