Antaira FCU-100WA-S2

10/100TX To 10/100FX Single Fiber (WDM), Single-Mode 20km, TX1310nm – RX1550nm

Mã: FCU-100WA-S2 Danh mục: Media Converters Antaira Từ khóa: FCU-100WA-S2

Mô tả
Sản phẩm liên quan

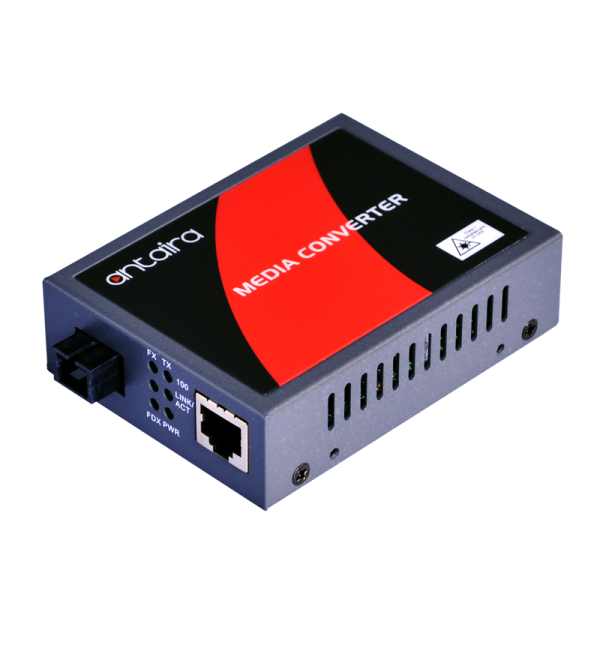

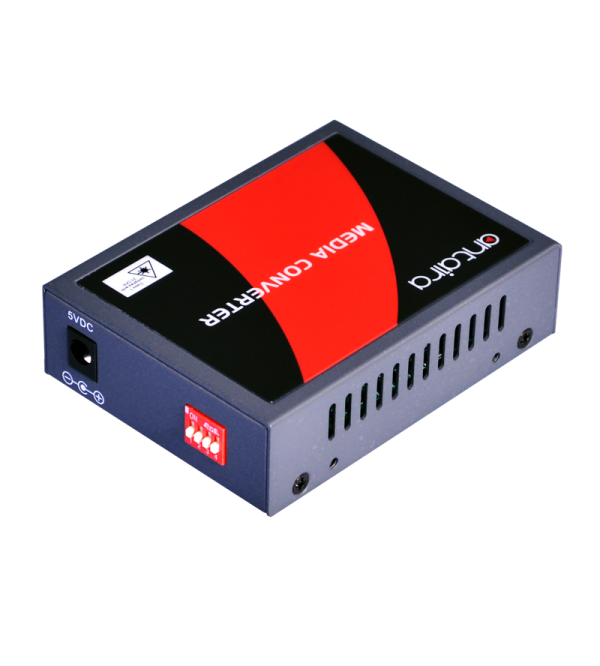

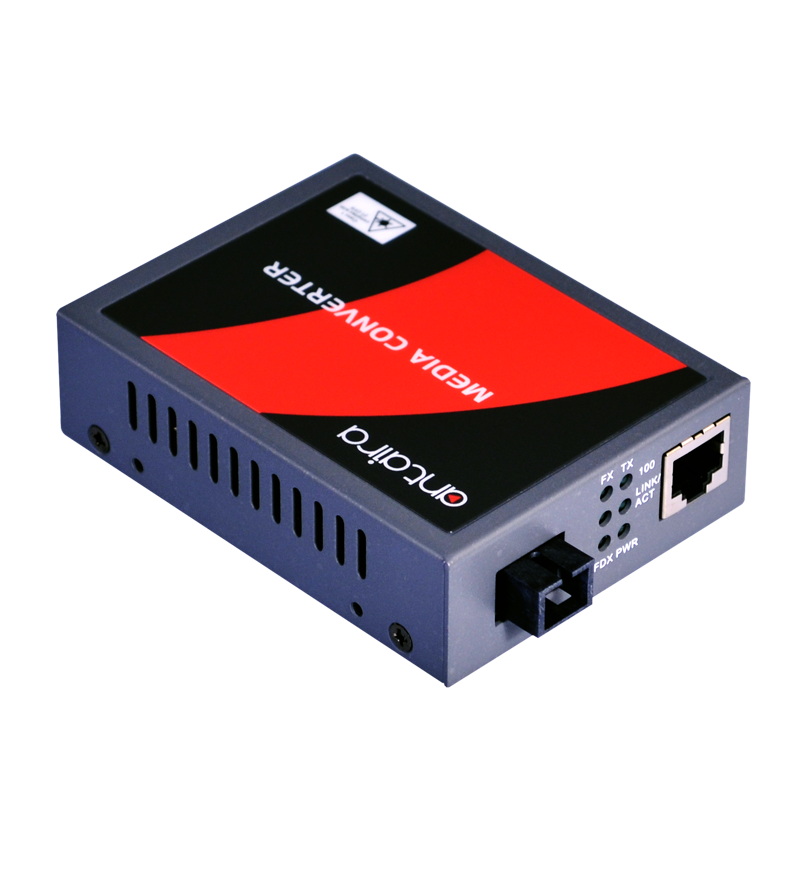

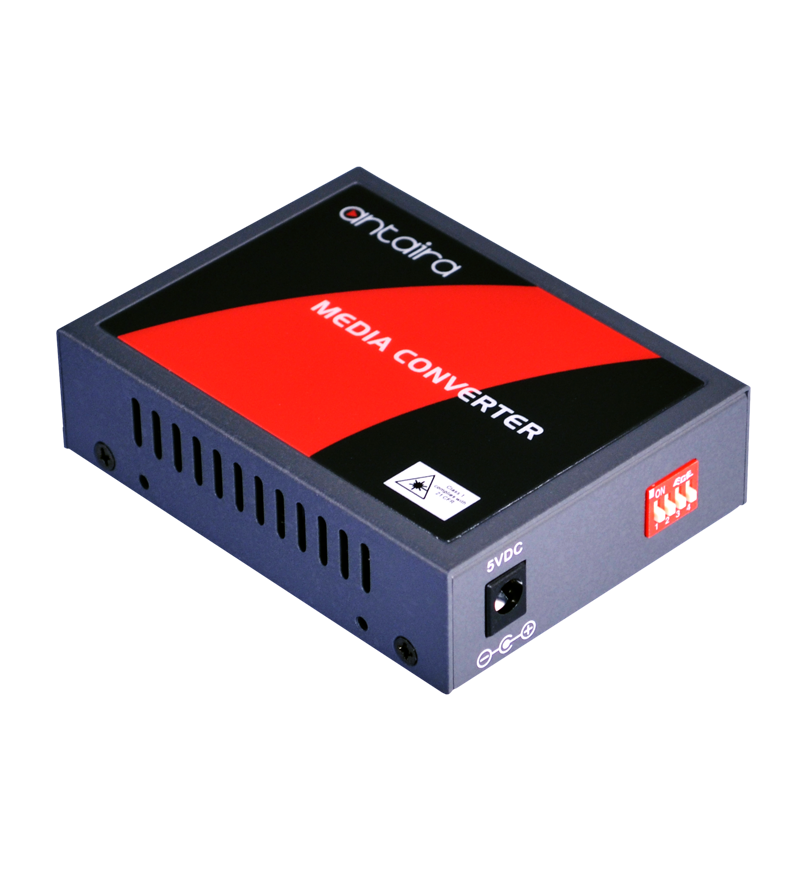

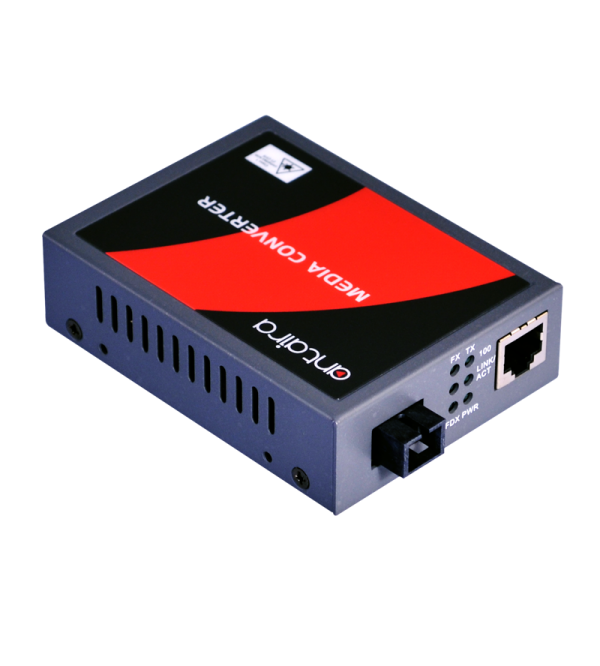

Antaira Technologies FCU-100WA-S2 is a compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The FCU-100WA-S2 features a singular SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper
media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCU-100WA-S2 is a 10/100 multi-mode fiber media converter
capable of communication up to 20KM. The FCU-100WA-S2 is a WDM rugged media convert with fiber communication on TX1310nm – RX1550nm.

All Converters comply with IEEE 802.3 & 802.3u Fast Ethernet Standards
LED Indication: Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/AC
10/100Mbps Auto Negotiation
Auto cross over for TP port
Support Link Alarm
Support Switch mode & Pure converter mode
Dual Port 10/100Mbps Switch inside
Metal Case
Voltage supervisor

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/FX Fast Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x back pressure flow control
Ethernet Interface
Ethernet Port Count	1 port
10/100 BASE-T(X)	10/100BaseT: 1 × RJ45 Port
Fiber Interface
Fiber Port Count	1 port
100 BASE-FX Fiber	100BaseFX: 1 × SC Port
Wavelength	TX: 1310nm – RX: 1550nm
Transmission Distance	20 km
Tx Power	-14 ~ -8.0 dBm
Rx Sensitivity	-33.0 dBm
Link Budget	19.0 dB
Other Interface
LED Indicator	Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/Act
Performance
MAC Table Size	1K
Jumbo Frame	9K bytes
Memory Buffer	48 kbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Power Requirements
Power Connection	External power supply / DC Jack
Input Voltage	5V DC, 1.6A
System Power Consumption	5 Watts
Environmental Limits
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Ambient Relative Humidity	5% to 90% non-condensing
Mechanical Characteristics
Housing	Metal
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	71 × 26 × 97 mm (2.80 × 1.02 × 3.82 inches)
Weight	0.6 kg
Regulatory Approvals
Green	RoHS Compliant
Warranty	5 years
