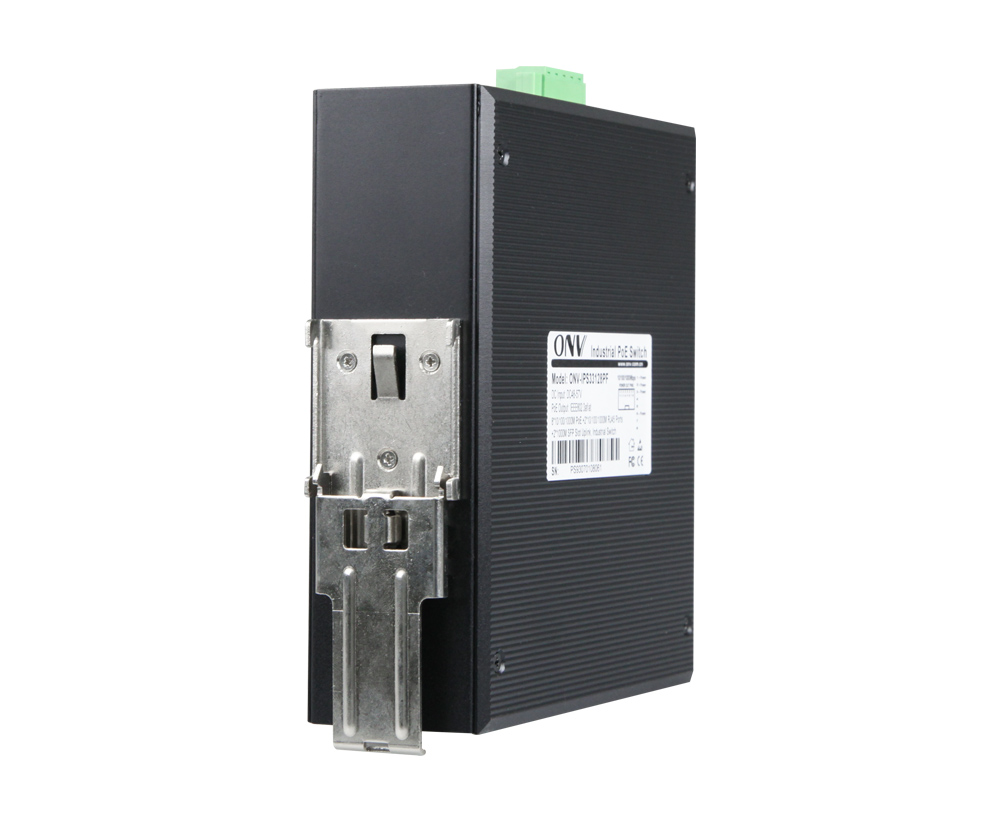

Full gigabit 14-port L2+ managed industrial switch

OVERVIEW

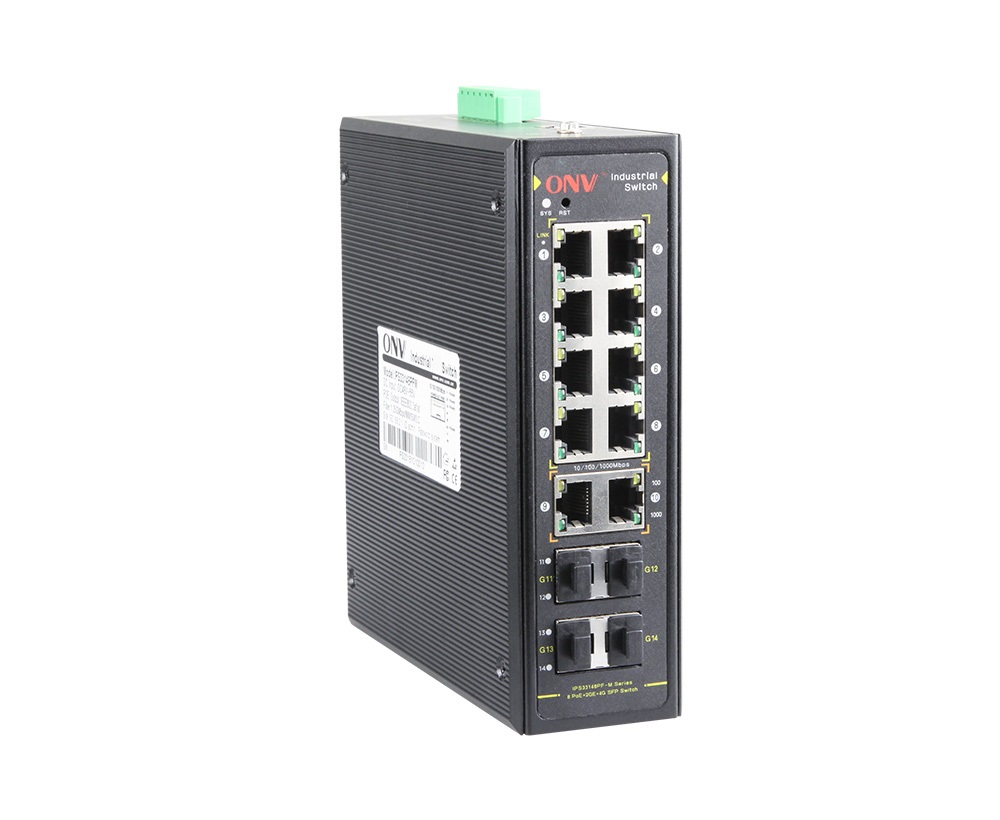

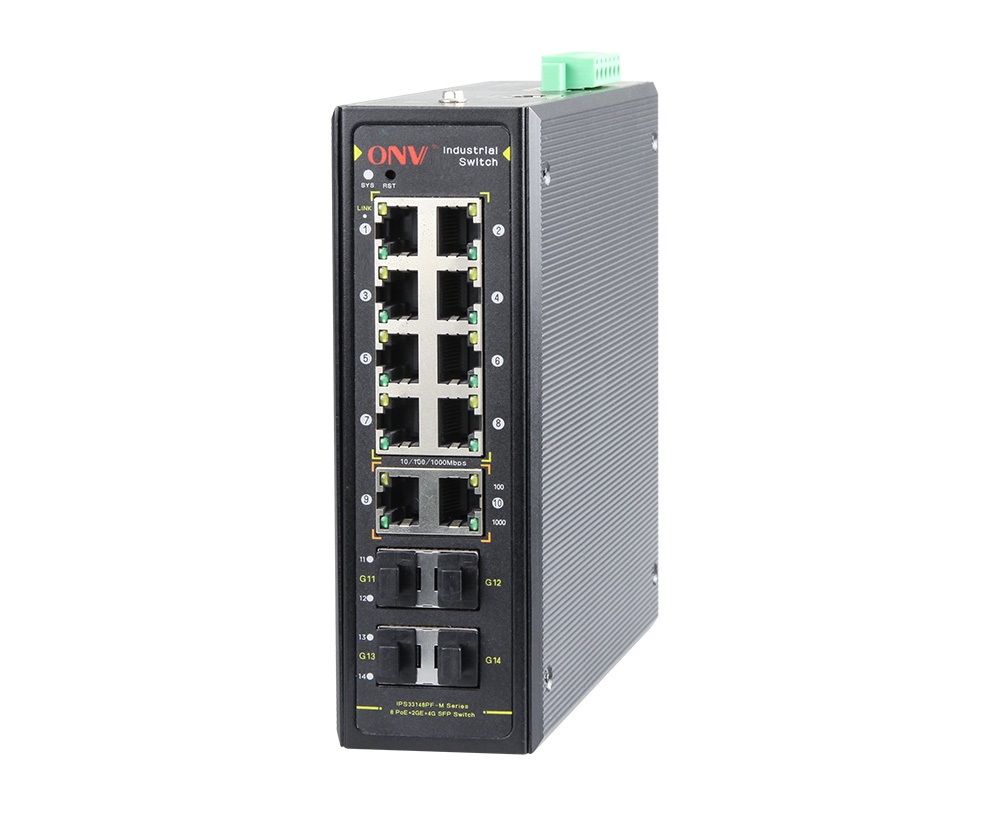

The ONV-IPS33148FM series is a full gigabit managed industrial Ethernet fiber switch independently developed by ONV. It has 10*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber ports. Each port can support wire-speed forwarding.

The ONV-IPS33148FM has L2+ network management function, supports IPV4/IPV6 management, supports static route forwarding, complete security protection mechanism, ACL/QoS policy, and VLAN function, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a one-way network fails, it can be quickly Resume communication and ensure uninterrupted communication. Configure the port management, routing address management, port traffic control, VLAN division, IGMP, and security policy based on the network management methods such as Web, CLI, SNMP, and Telnet. The ONV-IPS33148FM industrial Ethernet switch follows the industrial product design and materials. The outer casing is made of aluminum alloy to enhance the heat dissipation performance. It has excellent industrial field environment adaptability (mechanical stability, climatic environment adaptability, electromagnetic environment adaptability, etc.) and protection. grade IP40, support dual redundant power supply, low power fanless cooling technology, MTBF mean time between failures up to 35 years, 5 years warranty. It is suitable for industrial channels such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and green energy construction to form a cost-effective, stable and reliable communication network.

FEATURE

Full gigabit port access

◇ All series supports gigabit Ethernet port and gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Port lightning protection, ultra-wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input

◇ Non-PoE DC INPUT: 12-48V.

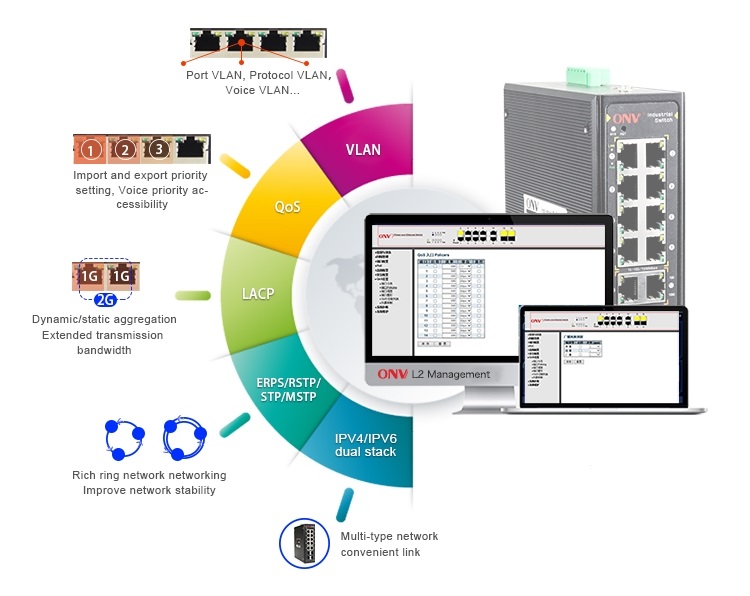

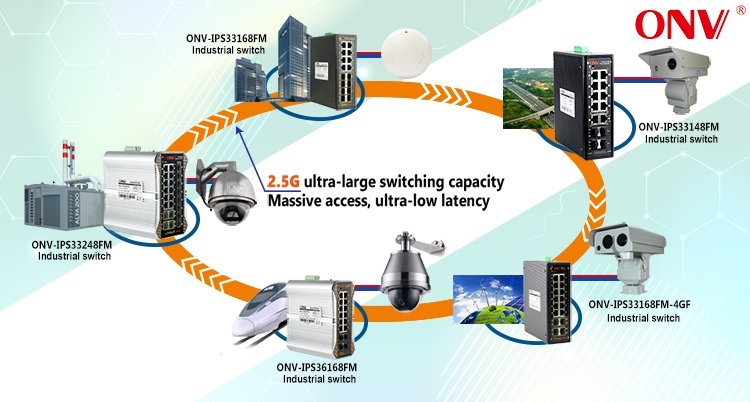

Network management and fast ring function

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

◇ IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

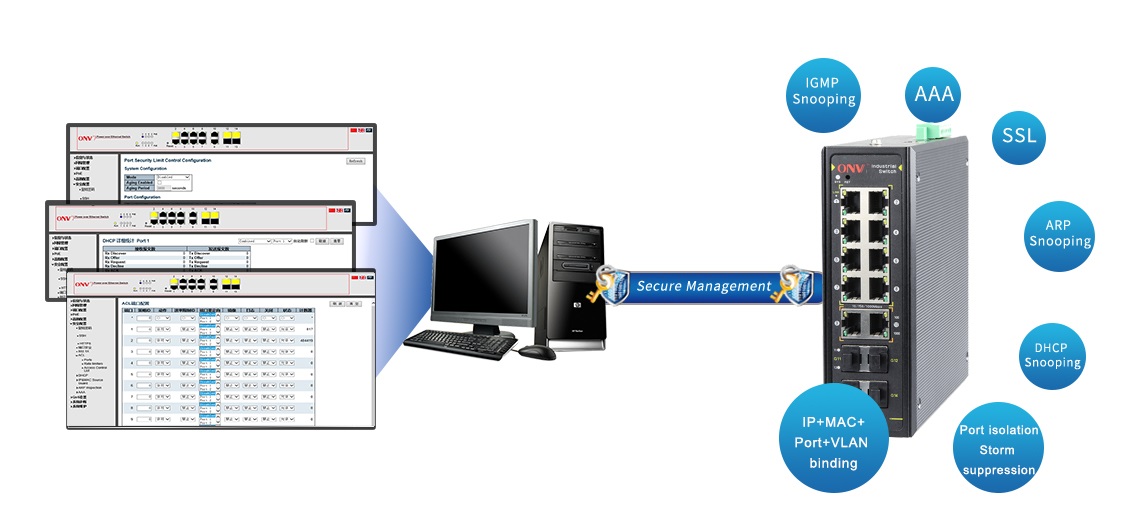

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

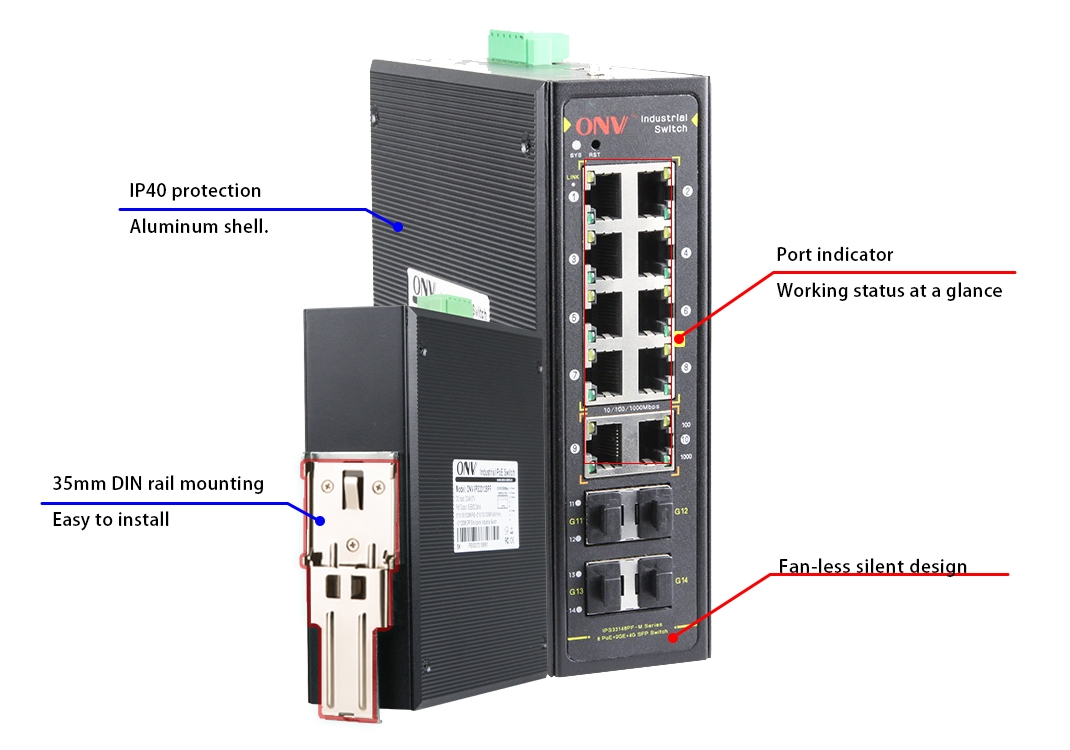

Stable and reliable

◇ Low power consumption, fan-less design, aluminum shell.

◇ CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link.

One-stop remote control and management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

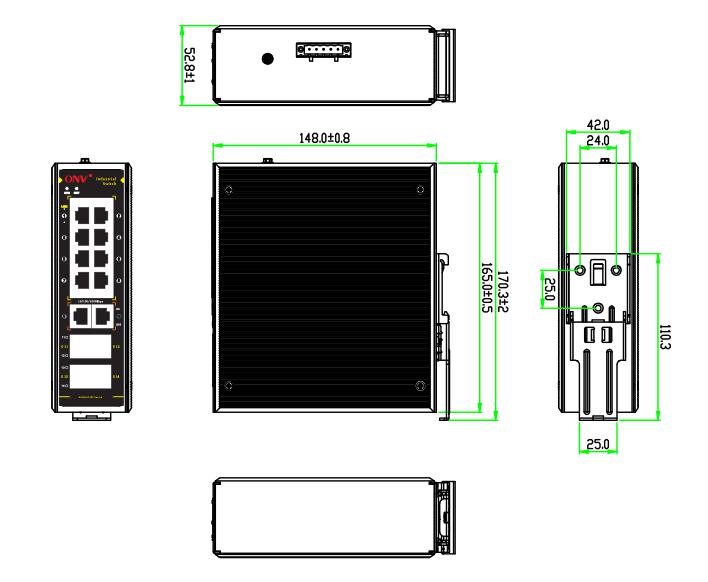

DIMENSION

ORDERING INFORMATION

PACKING LIST
