OVERVIEW

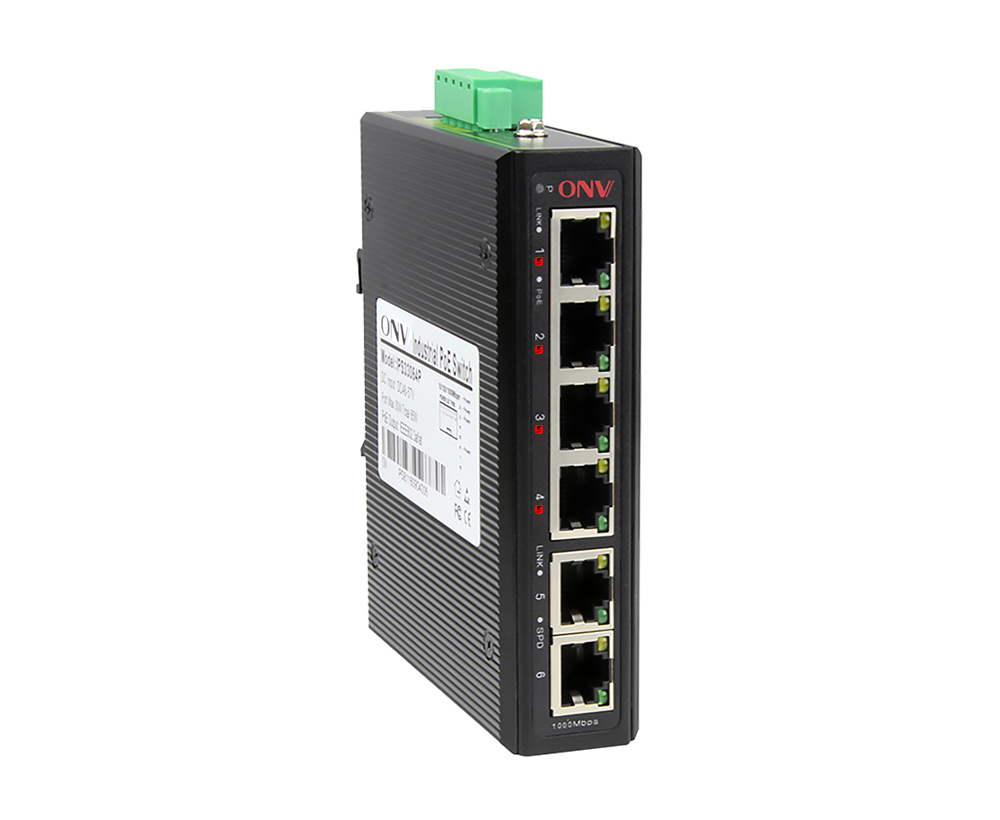

The ONV-IPS33064P-bt is a full gigabit unmanaged bt industrial PoE switch independently developed by ONV. It has 6*10/100/1000M RJ45 ports Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit full-line speed forwarding
◇ Gigabit RJ45 ports and dual RJ45 ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function
◇ 4*10/100/1000Base-T RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.
◇ The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, aluminum alloy casing, No fan.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link/Act, PoE.
DIMENSION
ORDERING INFORMATION
Model |
Description |
Configure Power Supply |
ONV-IPS33064P-bt |
Unmanaged bt industrial PoE switch with 6*10/100/1000M RJ45 ports. Port 1-4 can support 71W super high power out and backward compatible with POE@IEEE802.3af/at. It can support dual DC redundant power input and DIN rail mounting. |
240W |
Note: bt industrial PoE switch does not match the power supply. |
PACKING LIST
PACKING LIST |
CONTENT |
QTY |
UNIT |
6-port full gigabit bt industrial PoE switch |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
