Geovision GV-AS8111 Kit 84-AS8111KT-001U – 8 Door Panel + PowerBoard + IronCase

Geovision GV-AS8111 Kit – 8 Door Panel + PowerBoard + IronCase

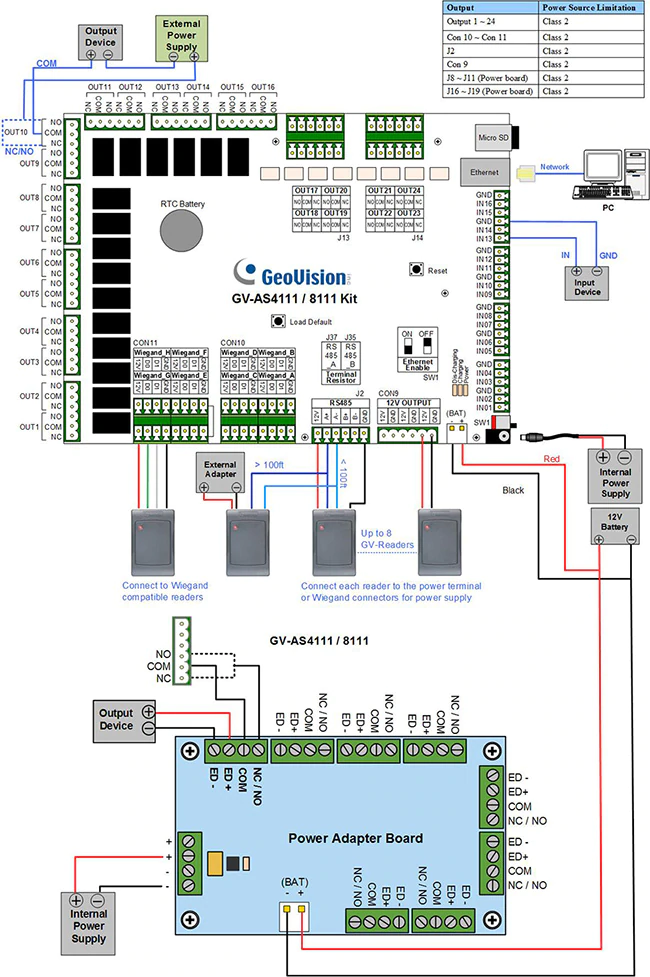

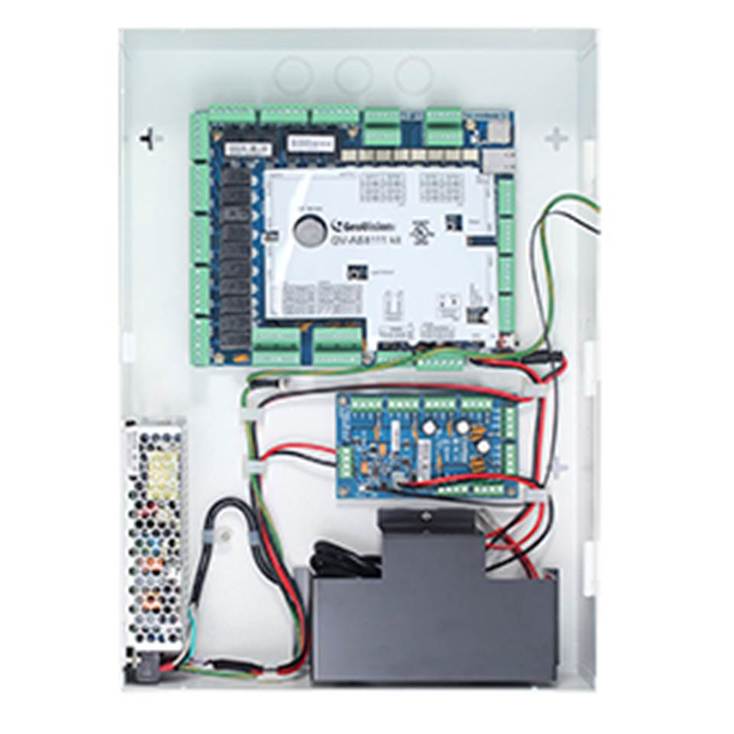

GV-AS8111 Kit is a cabinet containing a GV-AS8111, a power adapter board, a power supply and a casing for backup battery. The power supply provides power to GV-AS8111 Kit and up to 8 output devices (12V, 0.5A per device).

Key Features:

• One-way control: 8 doors
• Two-way control: 4 doors by Wiegand only; 8 doors by RS-485 / network; 8 doors with max 4 doors by Wiegand and other doors by RS-485 / network
• 8 Wiegand card readers of 26 to 64 bits
• 16 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
• Built-in 16 inputs and 24 relay outputs
• Suitable for controlling doors, parking gates and access to elevator call buttons
• Support for tampering alarm

SKU: 84-AS8111KT-001U
