Gigabit uplink 10-port managed Ethernet switch

OVERVIEW

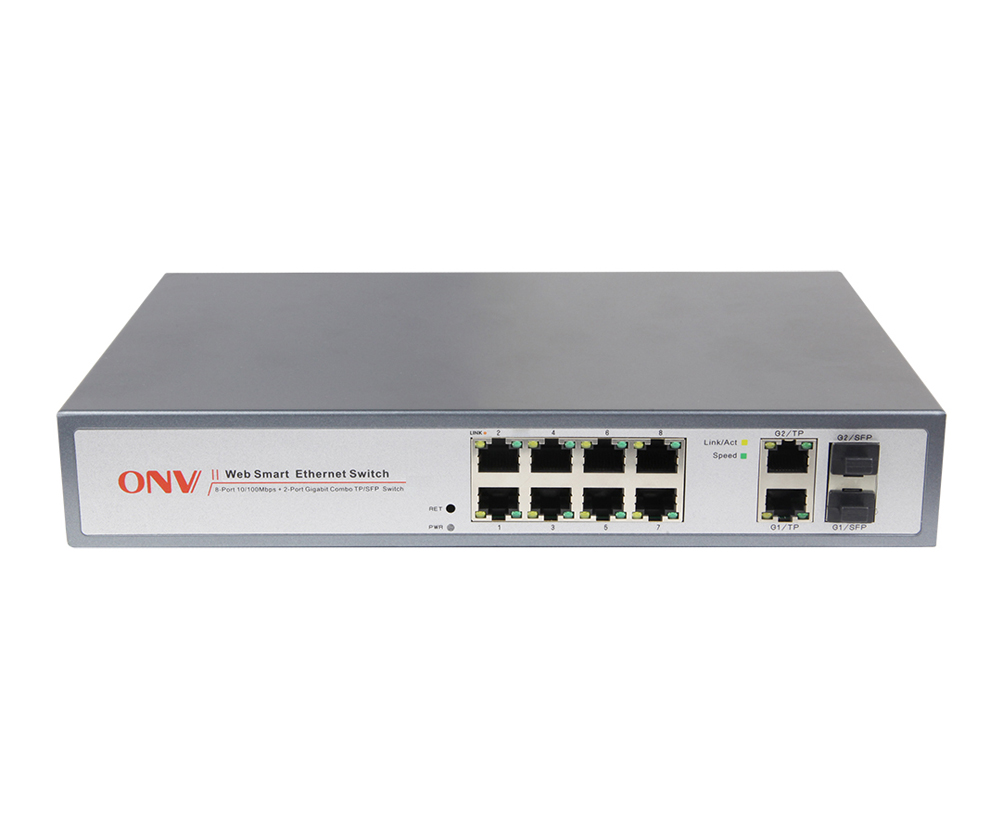

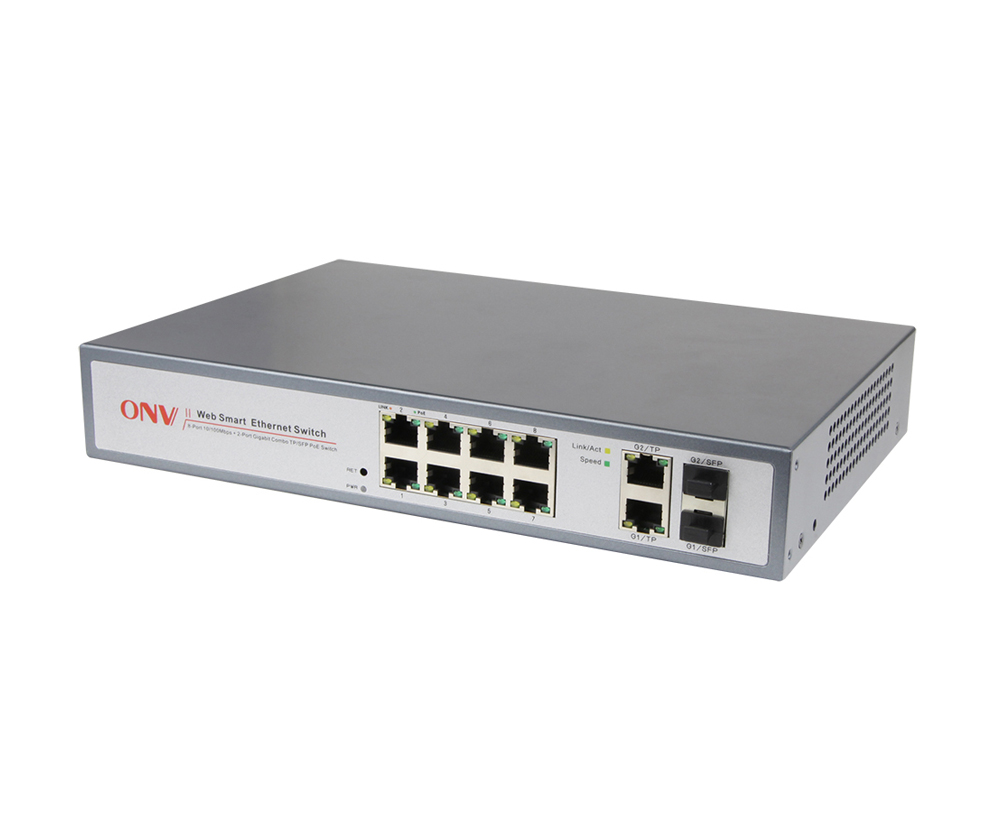

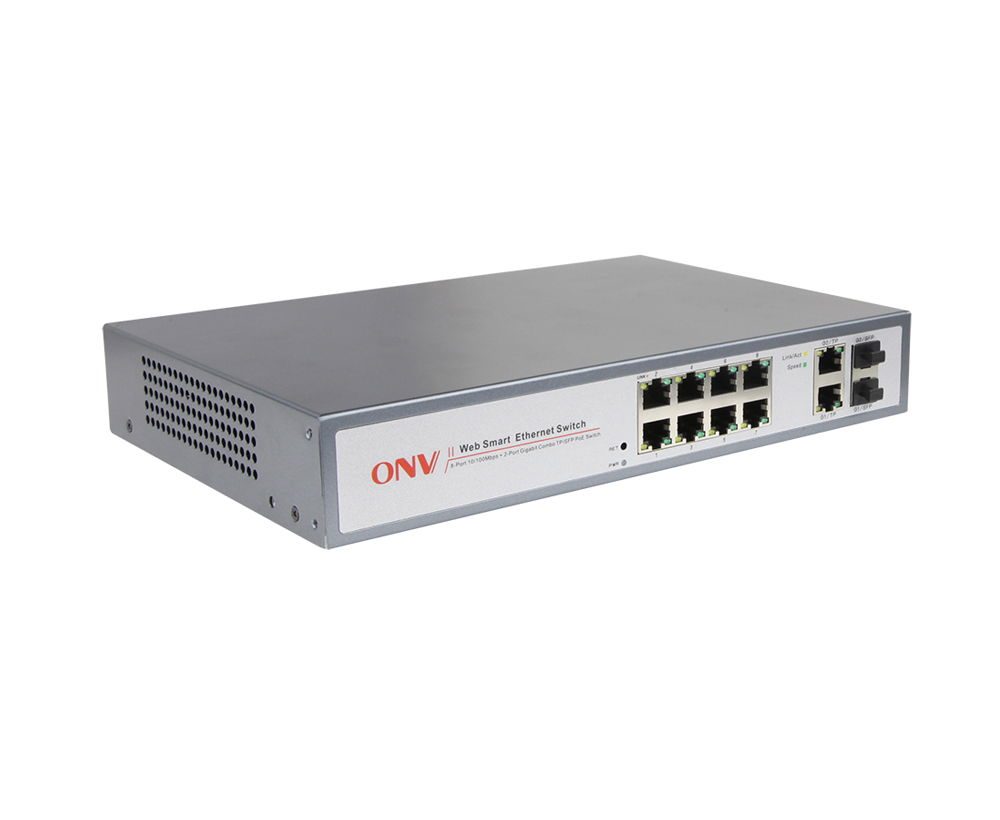

The ONV31108FM is a gigabit uplink L2 managed Ethernet fiber switch independently developed by ONV. It has 8*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports and 2*100/1000M SFP port (combo ports). Each port can support wire-speed forwarding.

ONV31108FM adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 10/100M access and uplink ports. It supports complete security protection mechanisms, comprehensive ACL / QoS policies, and flexible VLAN functions. Easy to manage and maintain, meeting users’ requirements for easy management of network equipment, high security, and low cost. At the same time, it can meet the multi-channel video intercom, monitoring, and wireless coverage network application environment. It is suitable for hotels, campuses, parks, commercial supermarkets, scenic spots, factory dormitories, and SMB small and medium-sized enterprises to form cost-effective networks.

FEATURE

10/100M access, Gigabit (TP/SFP) combo port uplink

◇ All series support “10/100M Ethernet port and Gigabit combo port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, no fan, galvanized steel metal casing.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link/Act.

Easy operation and maintenance management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

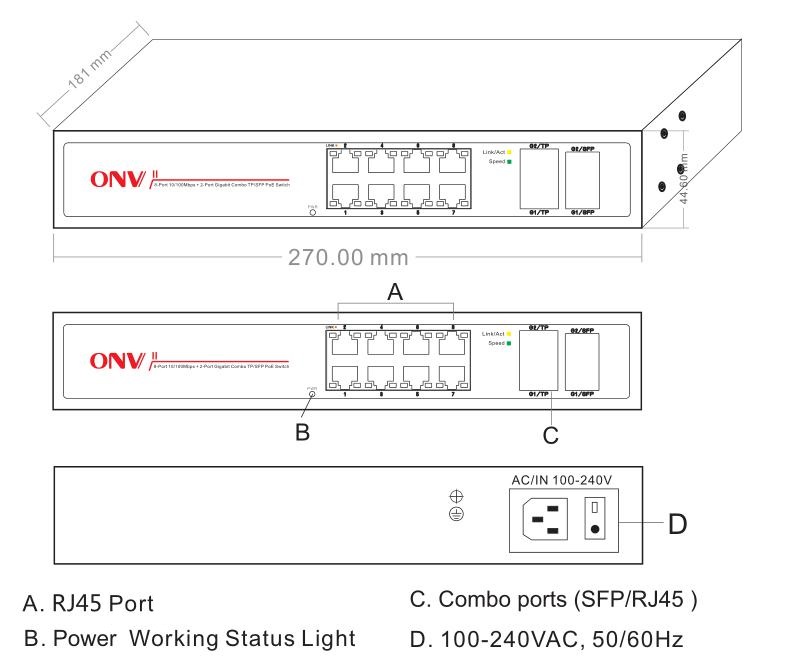

DIMENSION

ORDERING INFORMATION

PACKING LIST
