Gigabit uplink 10-port managed industrial Ethernet data switch

OVERVIEW

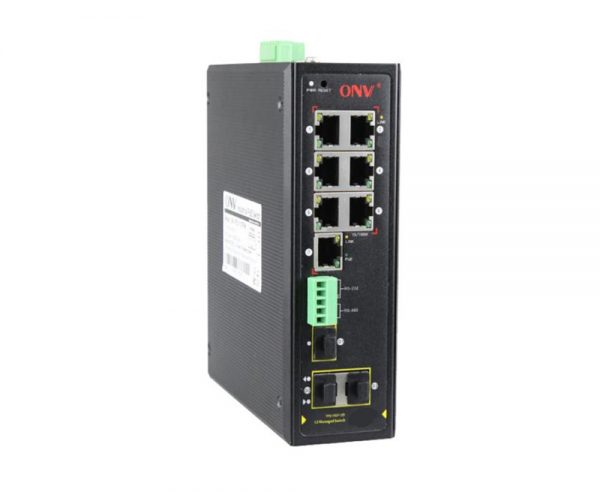

The ONV-IPS31107FM-2D is a gigabit uplink L2 managed industrial data switch independently developed by ONV. It has 7*10/100Base-TX RJ45 ports and 3*100/1000Base-X uplink SFP slot ports. Each port can support full line-rate forwarding.

ONV-IPS31107FM-2D has L2 network management function and provides a serial port to network function, which can convert RS-232 / 485 serial port to TCP / IP port, and realize bidirectional transparency of data between RS-232 / 485 serial port and TCP / IP network interface transmission. The serial device can immediately have the TCP / IP port function, connect the network for data communication, and greatly extend the communication distance of the serial device.

ONV-IPS31107FM-2D industrial data switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, It can support dual redundant power supply, low power consumption and no fan cooling technology, MTBF average trouble-free working time up to 35 years, 5-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.

FEATURE

10/100M Ethernet port access, Gigabit SFP uplink

◇ Gigabit uplink SFP fiber port, easy to achieve high switching capacity and high rate transmission.

Provide data bidirectional transparent transmission

◇ Support 1 channel RS485 serial port data to TCP/IP transparent transmission

◇ Support 1 channel RS232 serial port data to TCP/IP transparent transmission

Port lightning protection, wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input.

◇ Non-PoE DC INPUT: 12-48V.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Stable and reliable

◇ CE, FCC, RoHS.

◇ Low power consumption, No fan, aluminum shell.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link,L/A.

Easy operation and maintenance management

◇ Support web management and maintenance.

DIMENSION

ORDERING INFORMATION

PACKING LIST
