Gigabit uplink 6-port bt PoE fiber switch

OVERVIEW

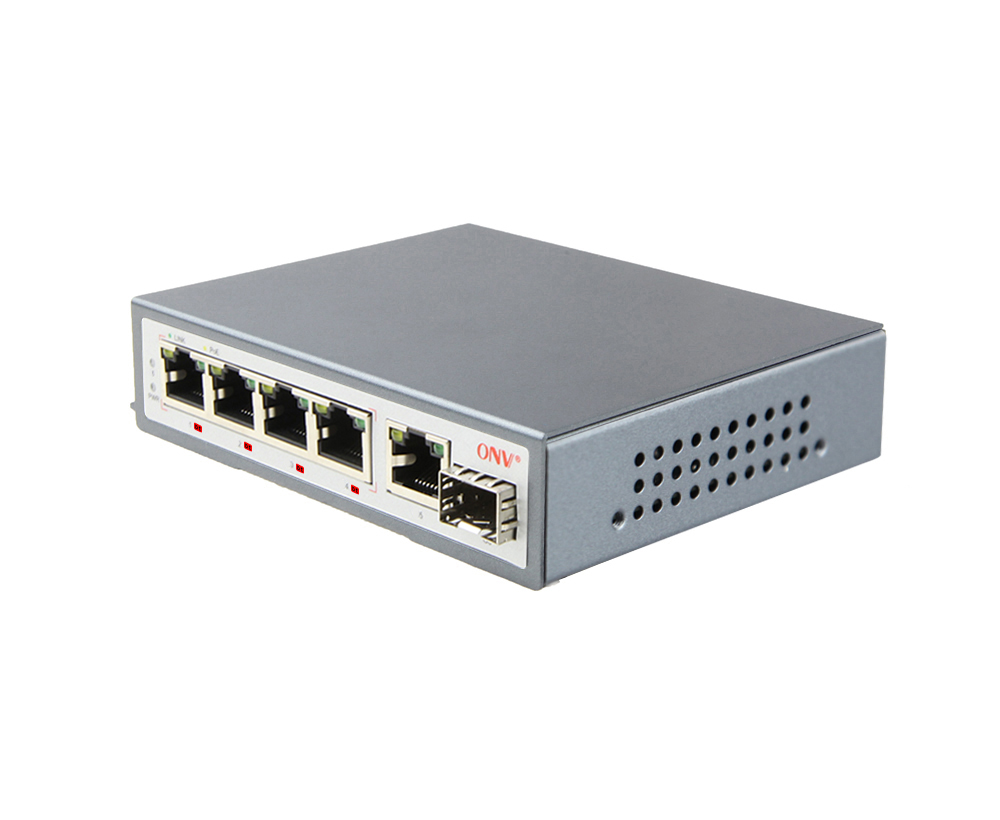

The ONV-POE31064PFG-bt is a gigabit uplink unmanaged bt PoE fiber switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 1*10/100/1000Base-T RJ45 port and 1*1000M uplink SFP slot port. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals,, factory dormitory and small and medium-sized enterprise.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps fast Ethernet access, Gigabit RJ45/SFP port uplink

◇ 4*10/100Base-TX RJ45 ports and gigabit RJ45/SFP port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE power supply function

◇ 4*10/100Base-TX RJ45 ports can support bt PoE power supply, meeting the demand for super high power PoE power supply in various scenarios.

◇ The maximum output power of single-port POE is 95W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, galvanized steel casing, No fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

DIMENSION

ORDERING INFORMATION

PACKING LIST
