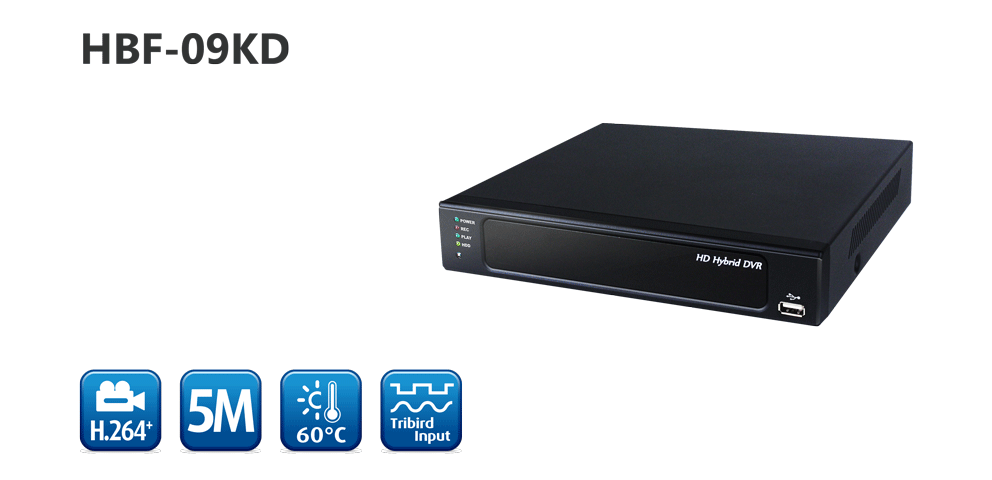

Camera IP HUNT HBF-09KD

Support 8-channel 5MP aHD/TVI/CVI, 960H, D1 cameras input

Mã: HBF-09KD Danh mục: Camera IP HUNT Từ khóa: HBF-09KD

Support 8-channel 5MP aHD/TVI/CVI, 960H, D1 cameras input
Support 3-channel IP cameras input up to 4MP
Support H.265, H.264 decoding & encoding
IPCam plug & play
Real-time Display & Playback
Audio: 4 in & 1 out
Support 10T internal HDD x1
Support CMS (Central Management System) control
Smart search
Support time-search & event-search function under Ethernet remote control mode
Up to four online clients for independent remote control; individual live-time
play-back & time-search function available
Support PPPoE/ Static/ DHCP IP & DDNS
Compliance to IEC 61000-4-5 surge level 2
Compliance to IEC 61000-4-2 ESD level 3

Model		HBF-09KD
Video&Audio	aHD/TVI Video Input	8 channel
	Analog Video Input	8 channel
	IP Camera Input	3 channel
	Audio Input	4 ch RCA
	aHD Control over Coaxial	Support
System	OS	Embedded Linux
	Codec	H.264⁺ / H.264
	Ethernet	RJ-45×1, 10/100/1000 Mbps
	Video Output	HDMIx1 VGAx1
	USB	USB2.0x2
	Video Input	BNC x 8
	Audio Input	RCA x 4
	Audio Output	RCA x 1
	GPIO	2 in / 1 out
	RS485	D+ , D-
	Power Input	DC 12 V
	Power Consumption	5.28W (without HDD)
Record&Playback	Recording Mode	Manual/Schedule/Alarm
	Searching Mode	Date/Time/Event/Smart search
	Recording Frame Rate	8x5MP@6fps 8x4MP@8fps 8x3MP@10fps 8x1080P@12fps 8x720P@30fps 8x960H@30fps 8xD1@30fps
	Playback Search	Smart search/Time search/ Event search
Storage&Backup	Internal Storage	SATA HDDx1
Storage&Backup	External Storage	USB backup, Remote broswer backup
Network Client	Browser	Windows IE 11
	Max.Online Member	6
	Remote APP	Support iPhone / iPad / Android phone
Dimensions&Operating Temparature	Dimensions	W218xH44xD202(mm)
	Weight	1kg(without HDD)
	Operating Temparature	-10~60°C / 14~139°F
