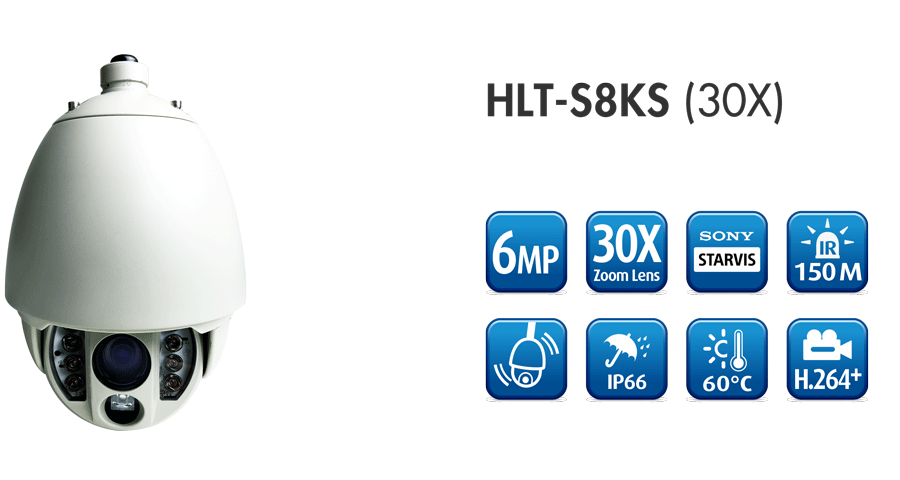

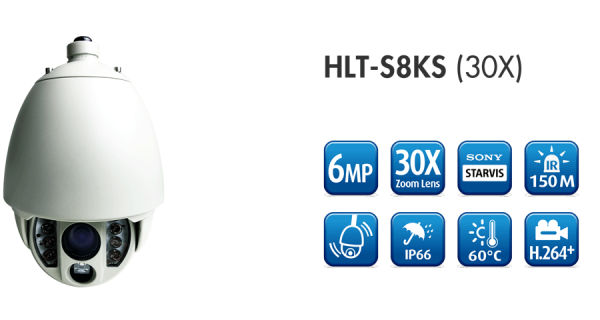

| HLT-S8KS Speed Dome Accessories | ||

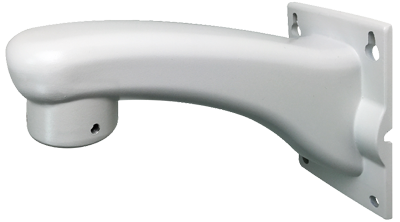

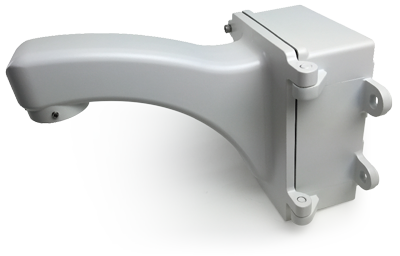

| Wall Mount Bracket | Wall Mount Bracket + Junction Box Kit |

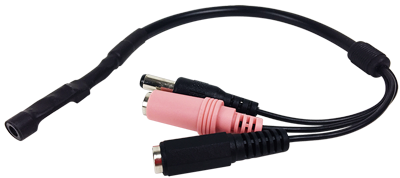

Ø3.5mm Stereo Jack Microphone |
 |
 |
 |

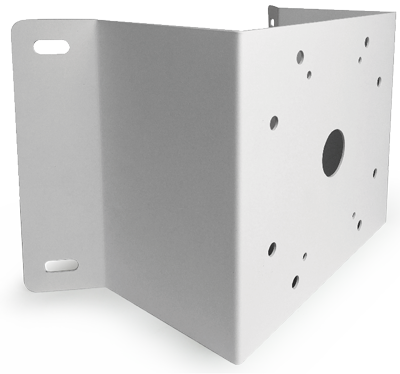

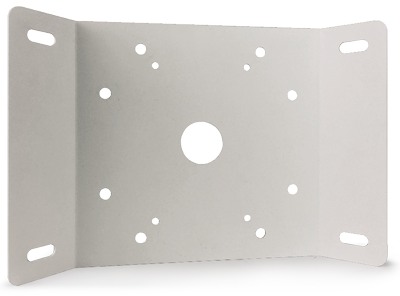

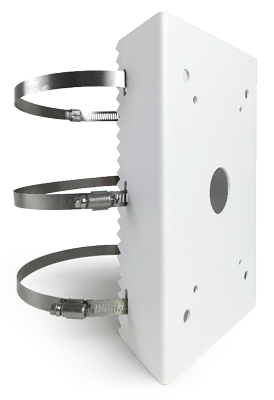

| Pole Mount Adapter | Convex Corner Mount Adapter | Concave Corner Mount Adapter |
 |
 |
 |

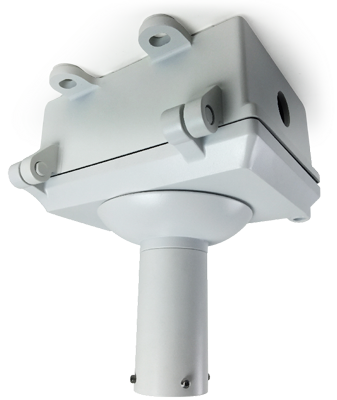

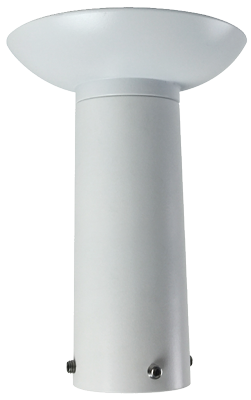

| Pendant Mount Bracket | Pendant Mount Bracket + Junction Box Kit | |
 |
 |
|

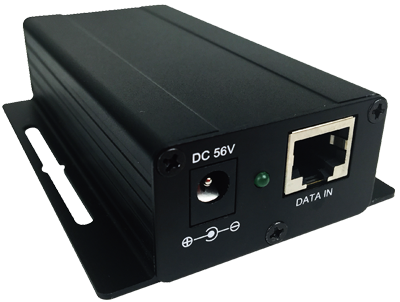

| HLT-S8KS Speed Dome PoE Injector | |
 |
|
| Model | HPS-01MP |
| Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3at Power Over Ethernet (PoE+) |
| Transmission Data | 10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5/5E, 6 UTP/STP Pin 1, 2, 3, 6 |
| RJ45 Port | 1 port 10/100 BaseT with PSE 1 port 10/100 BaseT (X) |
| Led Indicator | Ethernet Link/Act, PoE Status |
| Power Output | PoE 56V 50W |
| Power Input | DC56V, 1.07A |
| Dimension | L950 x H250 x W500 (mm) |
| Weight | 100g (not including adapter), 600g (Including adapter) |
| Operating Temperature | -20°~60°C / -4°~140°F |
| Humidity | 0~80% RH (Non-Condensing) |
