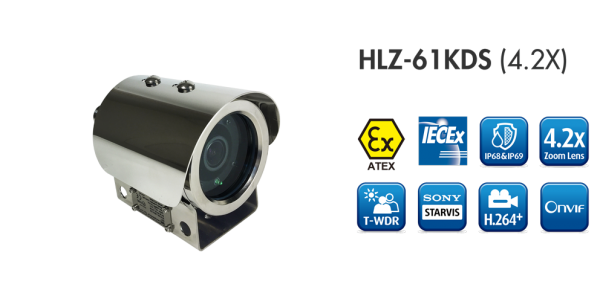

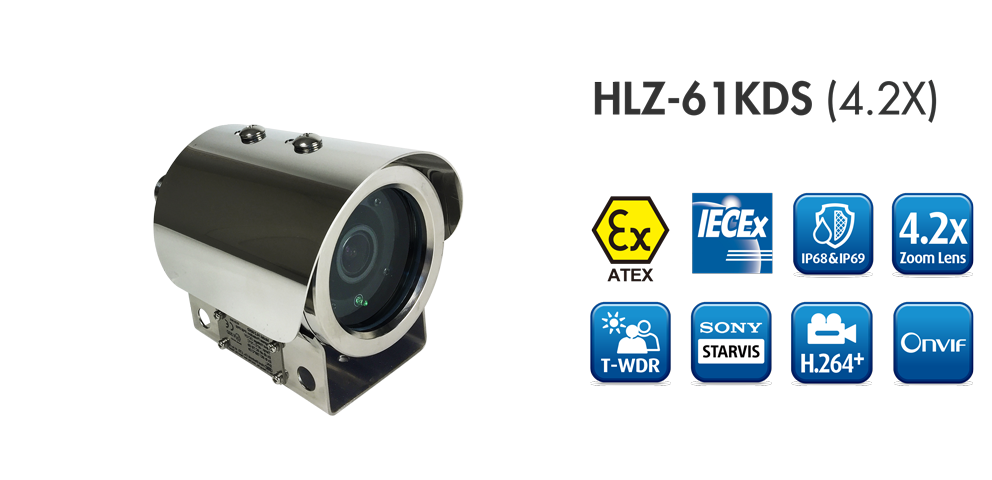

Camera IP HUNT HLZ-61KDS(4.2X)

Certification for use in Zones 1 and 2 IIC T6 Group (Gas) and Zones 21 and 22 IIIC T85ºC Group (Dust) 1080P@30FPS 4.2X Bulid-in Zoom Lens H.264+/  H.264/  M-JPEG Video Compression Smart Focus System for Remote Focus Adjustment Power over Ethernet IR Cut Filter Mechanism Day & Night Manual Switch Time Control Smart Stream ROI Function IP68,  IP69 NEMA 4X Support iPhone/  Android/  Mac SDK for Software Integration Free Bundle 36 Ch Recording Software

Product Name	Explosion-proof H.264+ 2MP 4.2X Motorized Bullet
Model	HLZ-61KDS (4.2X)
Certification	ATEX II 2G Ex d IIC T6 Gb ATEX II 2D Ex t IIIC T85ºC Db IECEx Ex d IIC T6 Gb IECEx Ext IIIC T85ºC Db
Housing Material	AISI 316L Stainless Steel
IP Rating	IP68,  IP69
Maximum Resolution	1920×1080 (2MP)
Sensor	1/2.8″ Sony True WDR Starvis CMOS Sensor
Lens	2.8-12mm 4.2X Bulid-in Zoom Lens @ F1.4
Sensitivity	Color: 0.005Lux (AGC ON)     B/W: 0.001Lux (AGC ON)
FOV	36° – 98° (H),    19.7° – 52.3° (V)
Video Format	H.264+/ H.264/ MJPEG
Video Resolution	1920×1080@30fps   1280×720@30fps   640×360@30fps
Maximum Streams	4 Simultaneous Streams
Audio Format	G.711 (64K) / G.726 (32K, 24K)
Audio	Input: External line in   Output: External line out Support 2 way audio
Interface	DIx1, DOx1, Micro SD card slot built-in (optional), RS485, RJ45
Cable Length	4M
Network Protocol	IPv6, IPv4,  HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google Drive,  Dropbox, ONVIF Profile S
Power Comsumption	PoE Max: 2.88W   DC 12V Max: 2.28W
Intelligent Feature	ROI, Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction(LDC),  Corridor Mode, Tampering Detection, Sound Detection, 3D DNR, P2P (optional), Seamless Recording, Off-site and Cloud Backup, Automatic Network Replenishment (ANR), Push Video Notification
Sunshield	Yes
Dimensions	Ø95xH45.5 (mm)
Weight	3.8kg
Working Temparature	-40°C~70°C / -40°F~158°F

Document Type Date Version Size Download Manual   20190821   5.8Mb Datesheet   20180912   6.1Mb IPScanner   20180726   1.71Mb

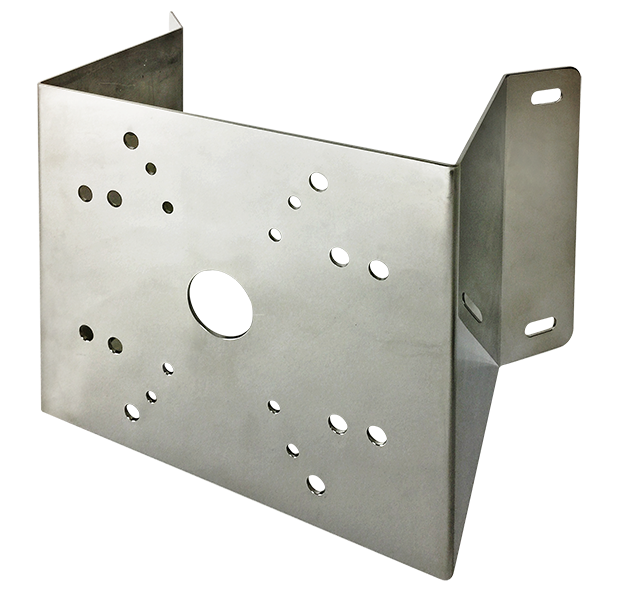

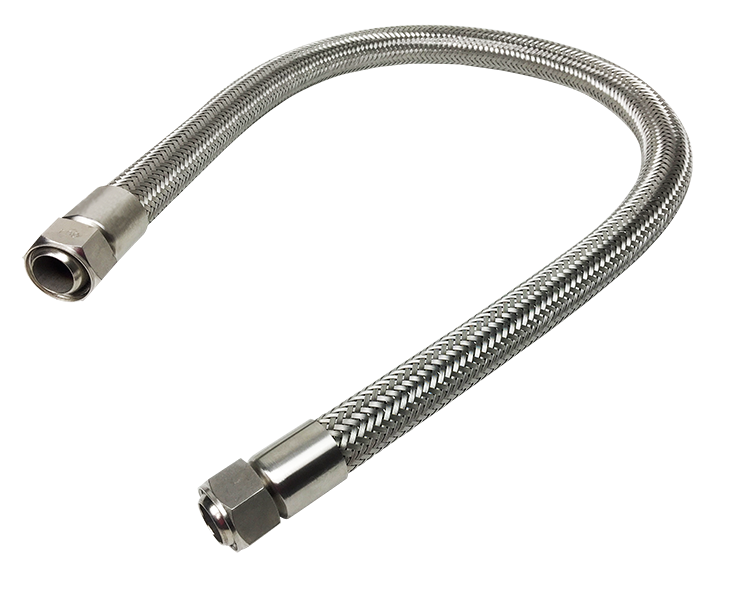

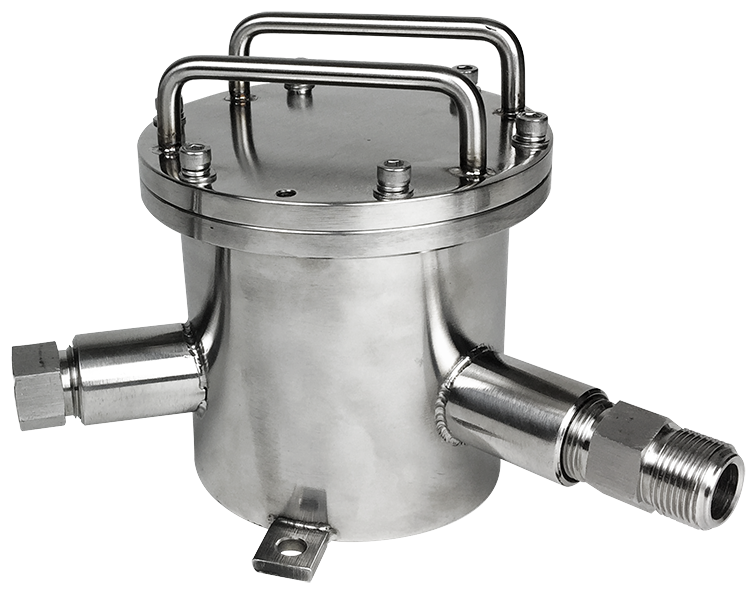

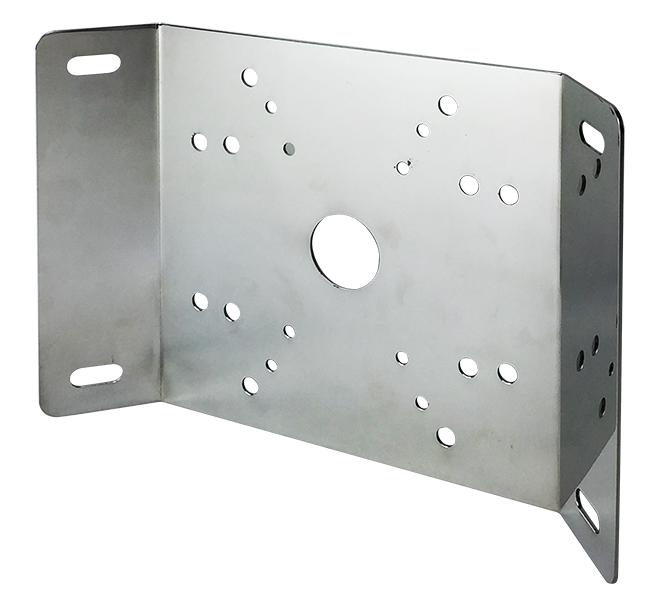

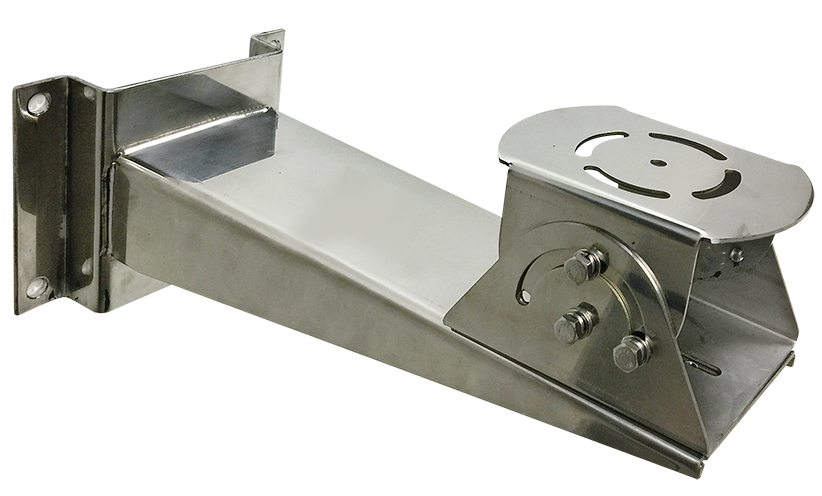

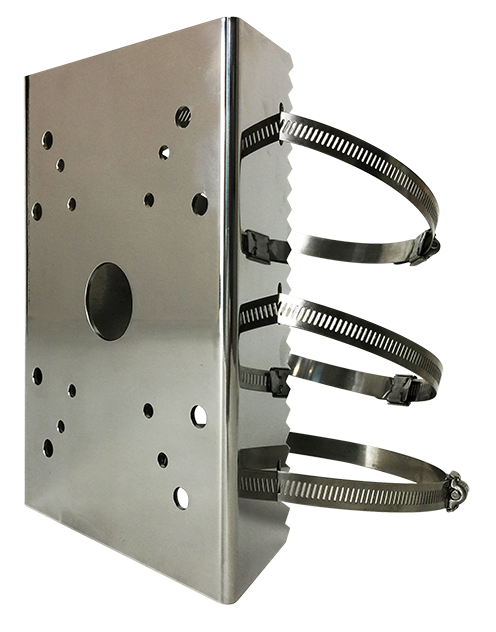

HLZ-61KDS Accessories (AISI 316L)  Wall Mount Bracket Pole Mount Adapter Convex Corner Mount Adapter   Convex Corner Mount Adapter Pipe Junction Box
