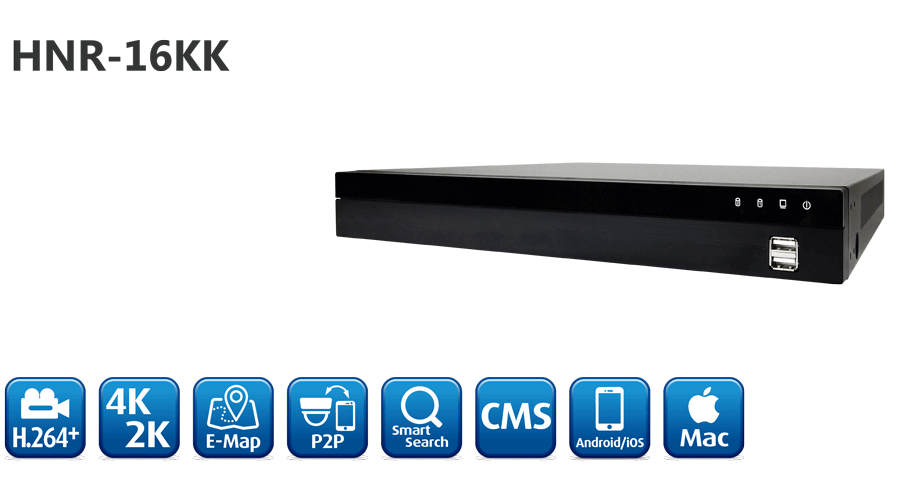

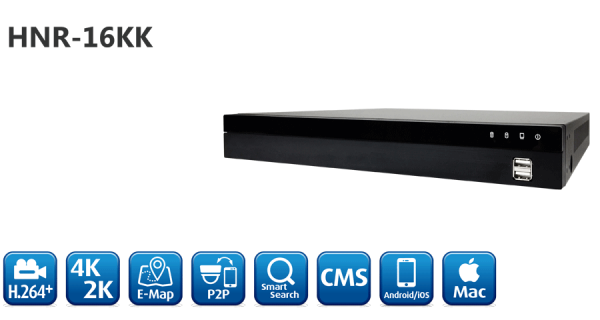

Camera IP HUNT HNR-16KK

Support 8 Megapixel IP Camera for each channel Support RAID 0/1/5 (optional) Support up to 10TB for each internal HDDx3 VGA& HDMI dual output Dual Ethernet(Dual Ethernet mode, Bridge mode, Balance mode, Backup mode) Advance Smart search E-MAP External backup to FTP/Samba/Google drive/Dropbox IEC 61000-4-5 surge level 2 IEC 61000-4-2 ESD level 3



Model HNR-16KK Video Video Input 16 Channel Video Format H.264+/H.264 IP Camera Max.Resolution Up to 8M pixel resolution Throughput 76 Mbps System OS Embedded Linux  Interface Ethernet RJ-45, 10/100/1000 Mbps x2 Video Outpu HDMI x1,  VGA x1 USB  USB2.0x3 Audio  3.5Ø  stereo jack,   Audio input x1,   Audio output  x1 GPIO/span> 2 x Alarm input / 1 x Relay output RS485 D+, D- Power Input AC100~240V Power Consumption 10.9W (Not include HDD) Record & Playback Recording Mode Manual/ Schedule/ Alarm trigger/Event/Motion/Overwrite Alarm pre Record 5-60 seconds Search Mode Smart search/ Time search/ Event search Storage & Backup  Internal Storage Internal SATA HDDx2 + e-SATA x1 or Internal SATA HDDx3 E-SATA RAID RAID 0/1/5 (optional) External Storage USB backup,  Remote browser backup,  FTP,  Samba,  Google drive,  Dropbox Network Client Browser Windows IE 11 Remote online Client Max. 10 online user Remote APP Support iOS / Android Dimensions & Operating Temparature Dimensions W360 x H44 x D301 (mm)  Weight 2kg (without HDD) Working Temparature -10~55°C / 14~131°F

Document Type Date Version Size Download Datesheet           QIG           Manual   20191213   8.2Mb Firmware           Other
