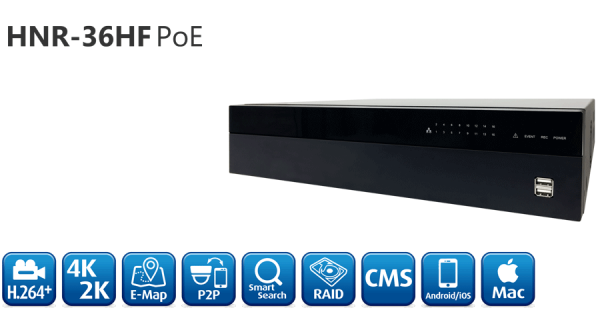

Camera IP HUNT HNR-36HF (PoE)

Support up to 36 channel H.264+ IP camera Embedded 16 channel PoE+ switch Support 8 Megapixel IP Camera for each channel Support e-SATA external storage Support RAID 0/1/5 (optional) Support up to 10TB for each internal HDD VGA& HDMI dual output, HDMI up to 4K2K Support P2P(optional) E-MAP External backup to FTP/Samba/Google drive/Dropbox Compliance to IEC 61000-4-5 surge level 2 Compliance to IEC 61000-4-2 ESD level 3



Model HNR-36HF(PoE) Video Video Input 36 Channel Video Format H.264+/H.264 IP Camera Max.Resolution Up to 8M pixel resolution Throughput 300 Mbps System OS Embedded Linux  Interface Ethernet RJ-45, 10/100/1000 Mbps x1 Video Outpu HDMI x1,  VGA x1 USB USB2.0 x3 Audio  3.5Ø  stereo jack,   Audio input x1,   Audio output  x1 GPIO/span> 4 x Alarm input / 1 x Relay output RS485 D+, D- Power Input AC100~240V Power Consumption 26W (Not include PoE output and HDD) Power Output RJ-45 x 16, PoE 802.3at,   Max. 190W Record & Playback Recording Mode >Manual/ Schedule/ Alarm Alarm pre Record 5-60 seconds Search Mode Smart search/ Time search/ Event search Storage & Backup  Storage SATA HDD x8 E-SATA x2 RAID RAID 0/1/5 (optional) External Storage USB backup,  Remote browser backup,  FTP,  Samba,  Google drive,  Dropbox Network Client Browser Windows IE 11, Mac Safari Remote online Client Max. 10 online user Remote APP Support iOS/Android Dimensions & Operating Temparature Dimensions 430 x 88 x 422 (mm)  Weight 6kg (without HDD) Working Temparature -10~55°C / 14~131°F

Document Type Date Version Size Download Datesheet           QIG           Manual   20181119   395K Firmware           Other
