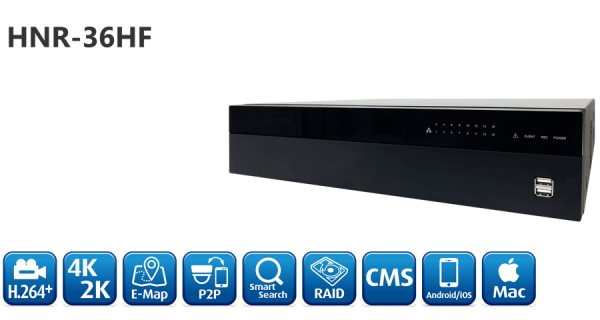

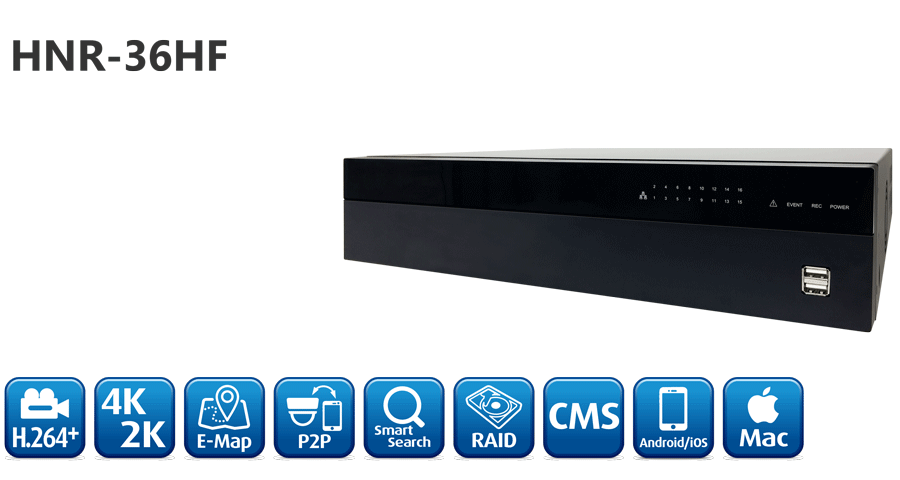

Camera IP HUNT HNR-36HF

Support up to 36 channel H.264+ IP camera Embedded 16 channel PoE+ switch/span> Support 8 Megapixel IP Camera for each channel Support e-SATA external storage Support RAID 0/1/5 (optional) Support up to 10TB for each internal HDD VGA& HDMI dual output, HDMI up to 4K2K Support P2P(optional) E-MAP External backup to FTP/Samba/Google drive/Dropbox Compliance to IEC 61000-4-5 surge level 2 Compliance to IEC 61000-4-2 ESD level 3



Model HNR-36HF Video Video Input 36 Channel Video Format H.264+/H.264 IP Camera Max.Resolution Up to 8M pixel resolution Throughput 300 Mbps System OS Embedded Linux  Interface Ethernet RJ-45, 10/100/1000 Mbps x2 Video Outpu HDMI x1,  VGA x1 USB USB3.0 x1 , USB2.0x2 Audio  3.5Ø  stereo jack,   Audio input x1,   Audio output  x1 GPIO/span> 4 x Alarm input / 1 x Relay output RS485 D+, D- Power Input AC100~240V Power Consumption 9.84W (Not include HDD) Record & Playback Recording Mode Manual/ Schedule/ Alarm trigger/Event/Motion/Overwrite Alarm pre Record 5-60 seconds Search Mode Smart search/ Time search/ Event search Storage & Backup  Storage SATA HDD x9 E-SATA x2 RAID RAID 0/1/5 (optional) External Storage USB backup,  Remote browser backup,  FTP,  Samba,  Google drive,  Dropbox Network Client Browser Windows IE 11 Remote online Client Max. 10 online user Remote APP Support iOS / Android Dimensions & Operating Temparature Dimensions 430 x 88 x 422 (mm)  Weight 6kg (without HDD) Working Temparature -10~55°C / 14~131°F

Document Type Date Version Size Download Datesheet           QIG           Manual   20180202   431K Firmware           Other
