Camera IP HUNT HPS-04TQ

1 x 10/100/1000 Base-T RJ45

Mã: HPS-04TQ Danh mục: Camera IP HUNT Từ khóa: HPS-04TQ

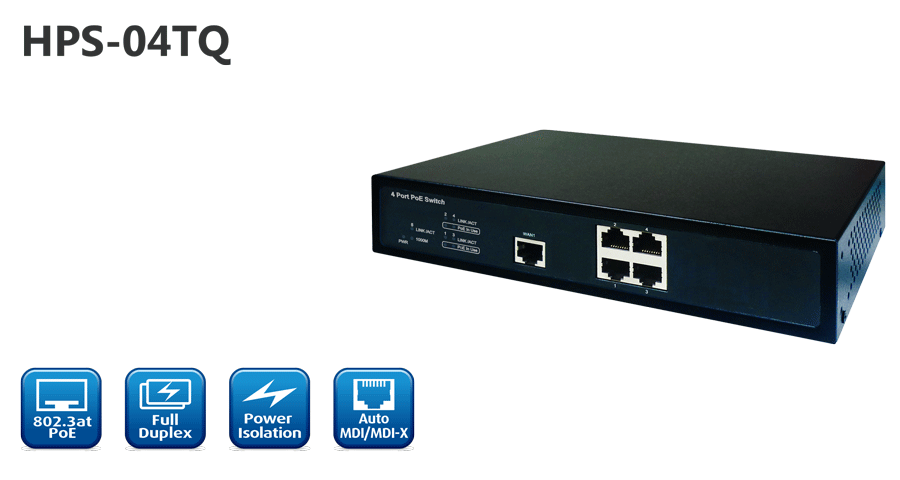

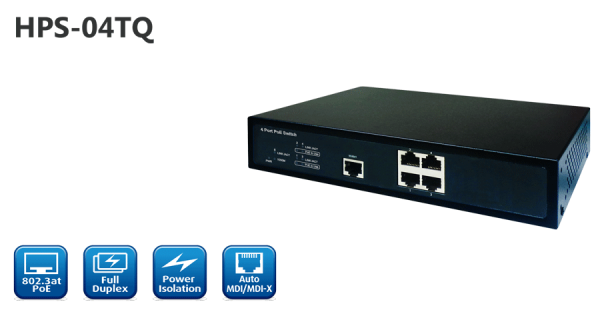

Product Name	4-Port PoE+ Switch
Model	HPS-04TQ
Network Connecter	8 Port 10/100 BaseT With PSE 2 port10/100/1000 BaseT (X)
LED	Network Connect/Act., PoE status
Security	MAC Address bounding, TCP/UDP Filter
VLAN	IEEE802.1Q VLAN, Port-Based, Tag-Based
Flow Control	GMP Snooping, Port Trunk,Qos/Cos(TCP/UDP port number, IP TDS/DS, 802.1p priority tag and physical port)
Network Standard	IEEE 802.3 10BaseT, IEEE802.3u 100BaseTX IEEE 802.3ab 1000Base-T, IEEE802.3z Gigabit fiber IEEE 802.3x flow control and Back Pressure, IEEE802.3ad Link Aggregation Control Protocol IEEE 802.1D Spanning tree Protocol, IEEE802.1AB LLDP IEEE 802.1x Port based Neteork Access Protocol, IEEE802.3at Power Over Ethernet(PoE+) IEEE802.1p Class of Service, IEEE 802.1Q VLAN
Transmission	10BaseT cAT/3, 4, 5 UTP/STP, 100BaseTX Cat/ 5 UTP/STP, 1000BaseT Cat. 5/5e, 6 UTP/STP
Power Output	PoE 802.3at compliant Each power max.30W Max.power supply:60W
Power Input	100~240V/AC, 50~60Hz
Operating Temparature	-20~60°C/-4~140°F
Humidity	0~80% RH(Non-condensing)
Dimensions	W219xH44XD159(mm)
Weight	-40°C~70°C / -40°F~158°F
