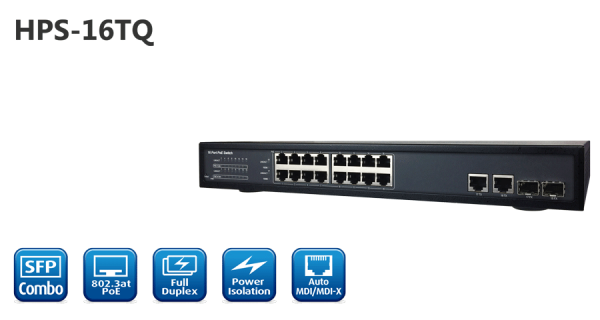

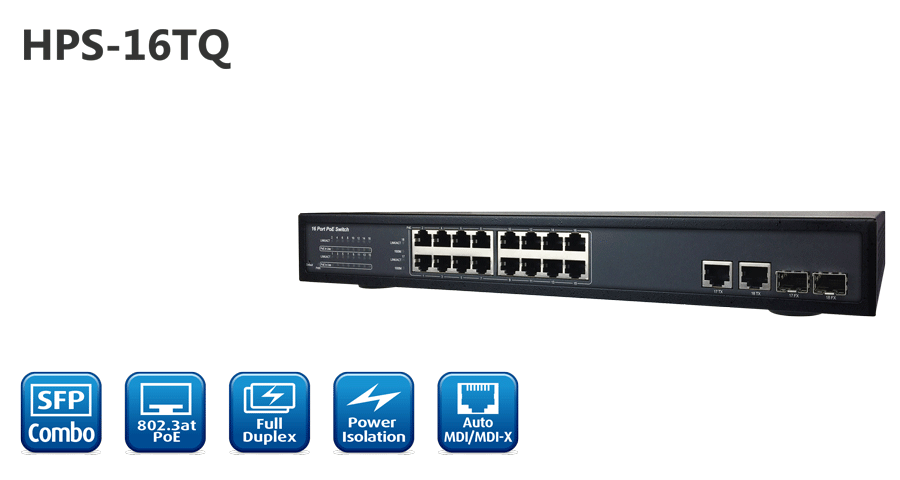

Camera IP HUNT HPS-16TQ

2 x 10/100/1000 Base-T RJ45/ SFP Combo ports 16 x 10/100 Base-T RJ45 ports Support 802.3at PoE+ Power isolation to ensure the equipment stability Working temperature: -20~60℃ Plug& play with smart NVR series L2 Network management Support MDI / MDI II automatic identification Compliance to IEC 61000-4-5 surge level 2 Compliance to IEC 61000-4-2 ESD level 3



Product Name 16-Port PoE+ Switch Model HPS-16TQ Network Connecter 16×10/100 BaseT With PSE 2×10/100/1000 BaseT RJ45/SFP Combo LED Network Connect/Act.,PoE status Security MAC Address bounding,TCP/UDP Filter VLAN IEEE802.1Q VLAN,Port-Based, Tag-Based Flow Control IGMP Snooping, Port Trunk,Qos/Cos(TCP/UDP port number IP TDS/DS, 802.1p priority tag and physical port) Network Standard IEEE 802.3 10BaseT, IEEE802.3u 100BaseTX IEEE 802.3ab 1000Base-T, IEEE802.3z Gigabit fiber IEEE 802.3x flow control and Back Pressure, IEEE802.3ad Link Aggregation Control Protocol IEEE 802.1D Spanning tree Protocol, IEEE802.1AB LLDP IEEE 802.1x Port based Neteork Access Protocol, IEEE802.3at Power Over Ethernet(PoE+) IEEE802.1p Class of Service, IEEE 802.1Q VLAN Transmission 10BaseT cAT/3, 4, 5 UTP/STP, 100BaseTX Cat/ 5 UTP/STP, 1000BaseT Cat. 5/5e, 6 UTP/STP Power Output PoE 802.3at compliant  Each power max.30W Max.power supply:240W Power Input 100~240V/AC, 50~60Hz Operating Temparature -20~60°C/-4~140°F Humidity 0~80% RH(Non-condensing) Dimensions W360xH44XD258.8(mm) Weight 2.9kg

Document Type Date Version Size Download Datesheet           QIG           Manual   20180625   1.7Mb Firmware           Other
