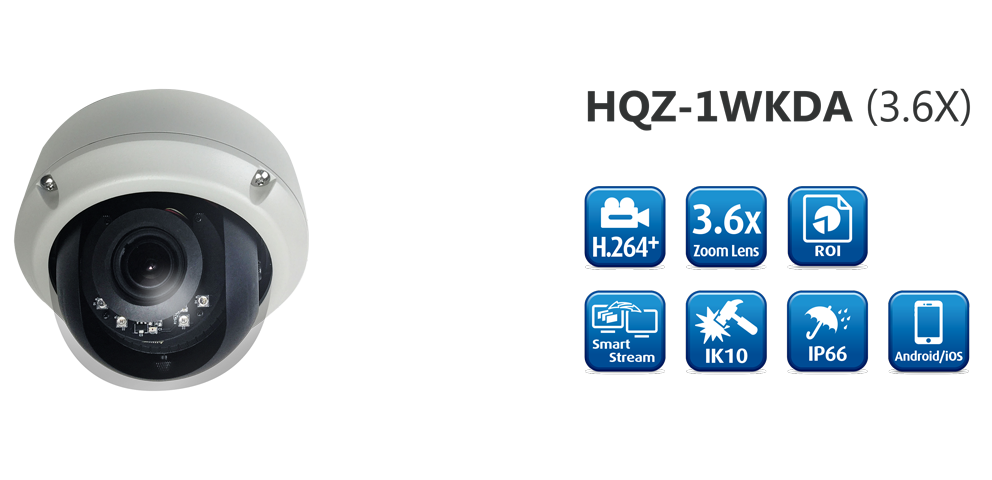

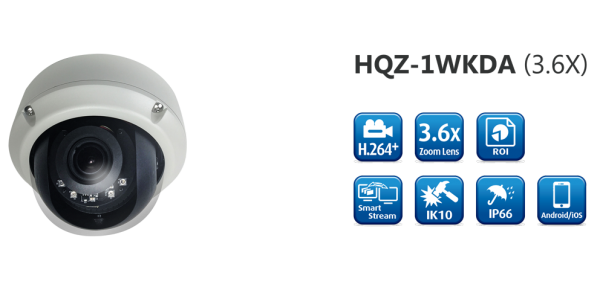

Camera IP HUNT HQZ-1WKDA (3.6X)

2 Megapixel IR Vandal Dome IP Camera H.264+/ H.264/ M-JPEG Compression Sony Starvis Sensor Face Detection / Tracking / Capture Facial attribute recognition Liveness Detection Face Recognition Group management Face Snapshot & Event management Face Recognition with built-in database for 20,000 faces True Wide Dynamic Range 120dB ROI Function Digital Noise Reduction Power over Ethernet Day & Night Manual Switch Time Control Wide Temperature Range IR LED Built-in 30M IR Cut Filter Mechanism Micro SD Card Backup 2-way Audio IP66, IP68, IK10 Support iPhone/Android/Mac SDK for Software Integration including Face Detection & Capture Free Bundle 36 Ch Recording Software



Product Name H.264+ Vandal Dome Model HQZ-1WKDA(3.6X) Maximum Resolution 1920×1080 (4MP) Sensor 1/2.8″  Sony True WDR Starvis CMOS Sensor Lens 6-22mm 3.6X Bulid-in Zoom Lens @ F1.6 Sensitivity Color: 0.005Lux     B/W: 0.001Lux (AGC ON) FOV 8° – 44° (H),    6.5°- 24° (V) IR Distance 40M Video Format H.264+/ H.264/ MJPEG Video Resolution 1920×1080@60fps   1920×1080@30fps  1280x1720@30fps  640×360@30fps 320×240@30fps Maximum Streams Triple Streaming Audio Format G.711 (64K) / G.726 (32K, 24K) Audio Input: 3.5Ø sterer jack   Output: 3.5Ø sterer jack  Support 2 way audio Interface DIx1, DOx1, Micro SD card slot (optional),3 Axis management bracket,RJ45 Network Protocol IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP,  ARP, SNTP, QoS/DSCP, COS,IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP,  UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP,  SAMBA,  Bonjour, Google Drive, Dropbox, ONVIF Profile S Power Comsumption DC 12V Max:7.8W PoE Max:9.6W Feature ROI,Motion Detection,Privacy Mask, Anti Fog,Tampering Detection,Corridor Mode,Push Video,P2P(Optiona),Face recognition,Face Detection & Capture,Face attribute recognition,Face tracking Artificial Intelligence Feature Integration System Facial Recognition NVR,iOS and Android APP,SDK Liveness Detection Accuracy Rate 97.2% Face Detection/ Tracking/ Capture Detection Frame Rate Up to 20FPS Maximum Faces Number 16 Minimum Face Size 60X60 pixels Face Orientation Angle Yaw Angle:-60°~+60°C, Pitch Angle:-30°~+30°C, Roll Angle:-45°~+45°C Accuracy Rate 99% False Alarm Rate <0.5% Repeated capture Rate <10% Facial Attribute Recognition Recognition Frame Rate Up to 20FPS Accuracy Rate Age:±5 gender:96%; False Alarm Scenarios Overexposure,Low lighting,Serious backlighting scenarios,Exaggerated expression Attribute Type Gender,Age,Glasses,Mask,Ethnicity,Beard,Expression Face Recognition Recognition Frame Rate Up to 9FPS Minimum Face Size 100X100 Pixels Face Orientation Angle Yaw Angle:-30°~+30°C, Pitch Angle:-30°~+30°C, Roll Angle:-30°~+30°C  Accuracy Rate Library of 1000 faces;>98.4%@1%FPR,Library of 10000 faces:>96.7%@1% FPR False Alarm Scenarios Overexposure,Low lighting,Serious backlighting scenarios,Exaggerated expression Face Database 20,000 Faces Dimensions Ø137xH102(mm)  Weight 1kg Working Temparature -20~60°C / -4~140°F

Document Type Date Version Size Download Manual   20191002   6.7Mb Datesheet           IPScanner   20180726   1.71Mb

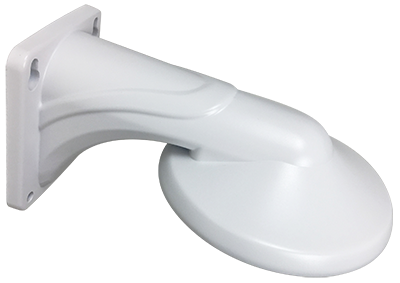

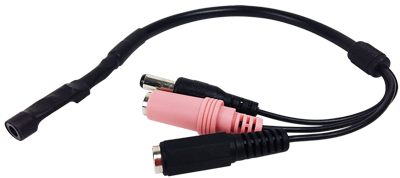

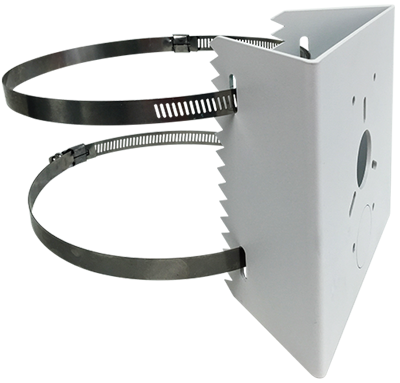

HQZ-1WKDA Accessories Pole Mount Adapter L-shape Bracket Ø3.5mm Stereo Jack Microphone
