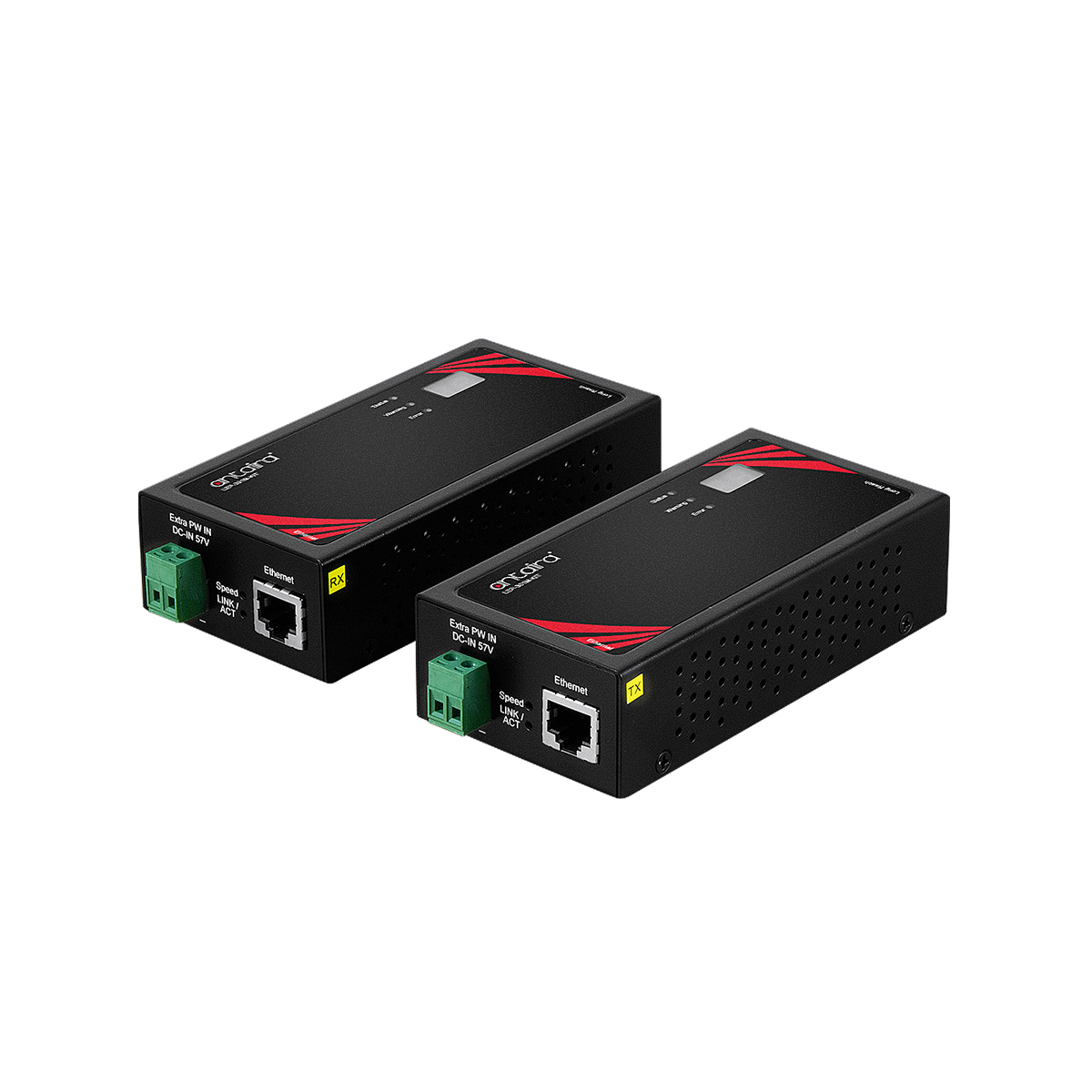

Antaira LEP-301M-KIT

Antaira Technologies’ LEP-301M-KITcontains both LEP-301M-TX and LEP-301M-RX. The former is an long reach transceiver with one PoE PD Ethernet port and one PoE Long Reach injector port, and the latter is an long reach receiver with one PoE Long Reach Extender
port and one PoE PSE Ethernet port.

LEP-301M-KIT is greatly beyond 100 meters distance limitation of RJ45 cable. Up to 1km the data and power can be transmitted simultaneously over the UTP cable. This kit is fully compliant with IEEE 802.3, 802.3u, 802.3af/at standards. Operation status can
be locally monitored through a set of diagnostic LEDs located in the front and rear panels.

• Supports Standard IEEE 802.3af/at PoE output
• Provide IEEE 802.3af/at for the remote PD (powered device)
• Support MDI/MDI-X Auto-Crossover
• Support Auto-Negotiation
• Dual Power Input Design for either PoE (IEEE 802.3af/at),
• PoE++ (60W), or DC power supply input (54~57V)
• Support Auto & Manual mode configuration for the Ethernet port
• Provide the 7-segment digital LED to display current
• PoE output and diagnostic ID
• IP30 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature Range: 0° to 60°C
• 5-Year Warranty
