Antaira LMP-0702G-SFP-24-V2

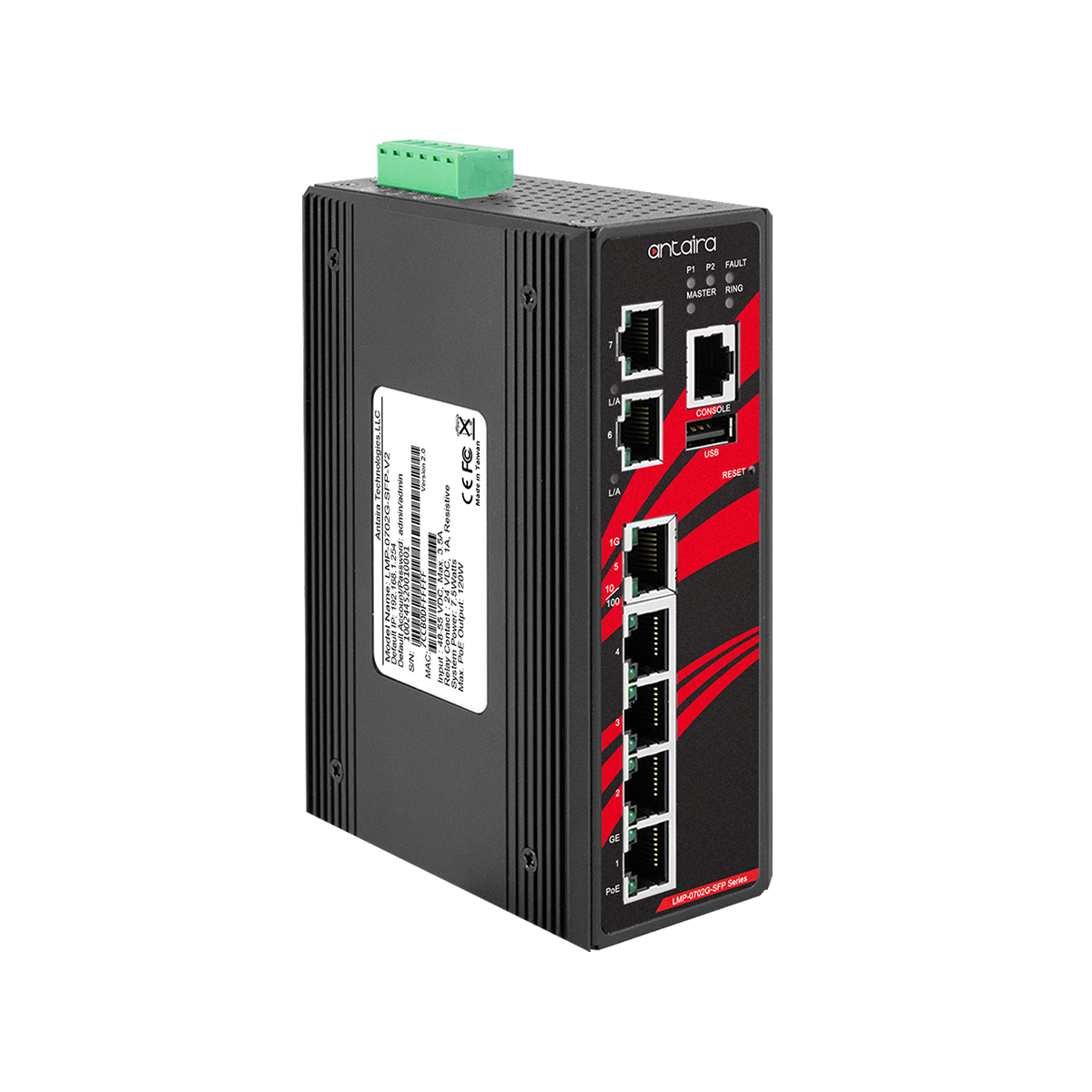

Antaira Technologies’ LMP-0702G-SFP-24-V2 is a 7-port industrial Gigabit PoE+ managed Ethernet switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, 1*10/100/1000Tx Gigabit Ethernet port, and 2*100/1000 dual
rate SFP slots for fiber connection. This model can operate in industrial standard temperatures from -10° to 65°C. It is a fully manageable Light Layer 3 Ethernet switch pre-loaded with a user-friendly web management console design. It supports the ring network
redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP,
and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

LMP-0702G-SFP-24-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any
other outdoor or harsh environment.

• Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, 1*10/100/1000Tx RJ45 Port, and 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2/v3, up to 1024 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c

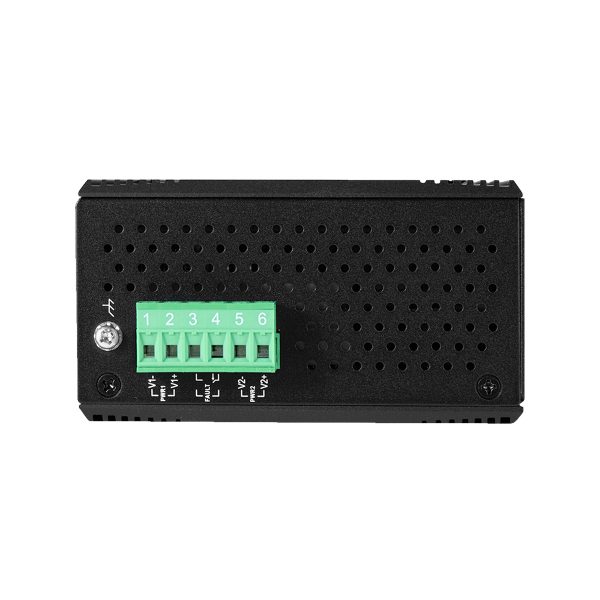

• Power Input: 12~55VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP30 Protection

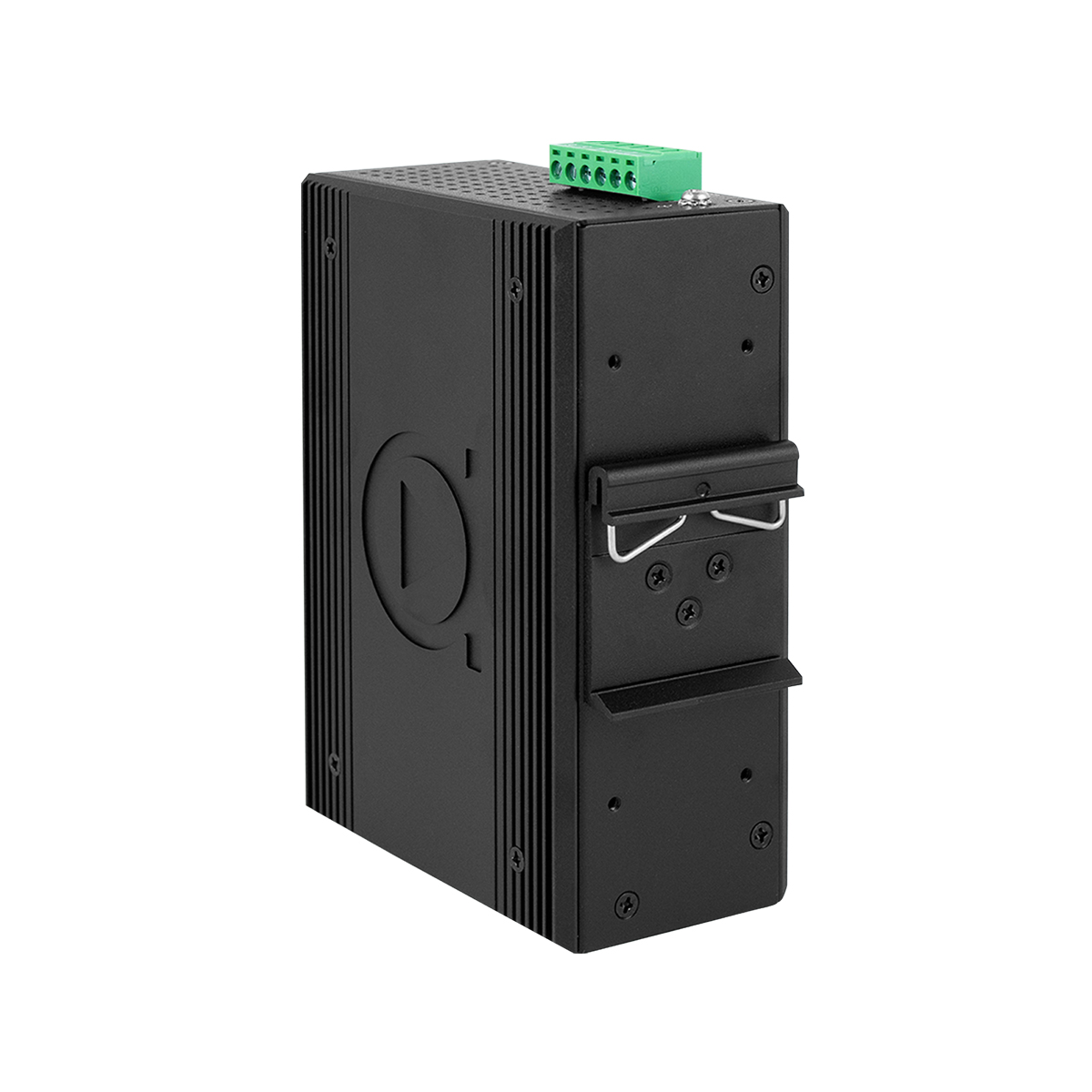

• DIN-Rail or Wall Mountable
• Operating Temperature Range
• STD: -10° to 65°C
• 5-Year Warranty
