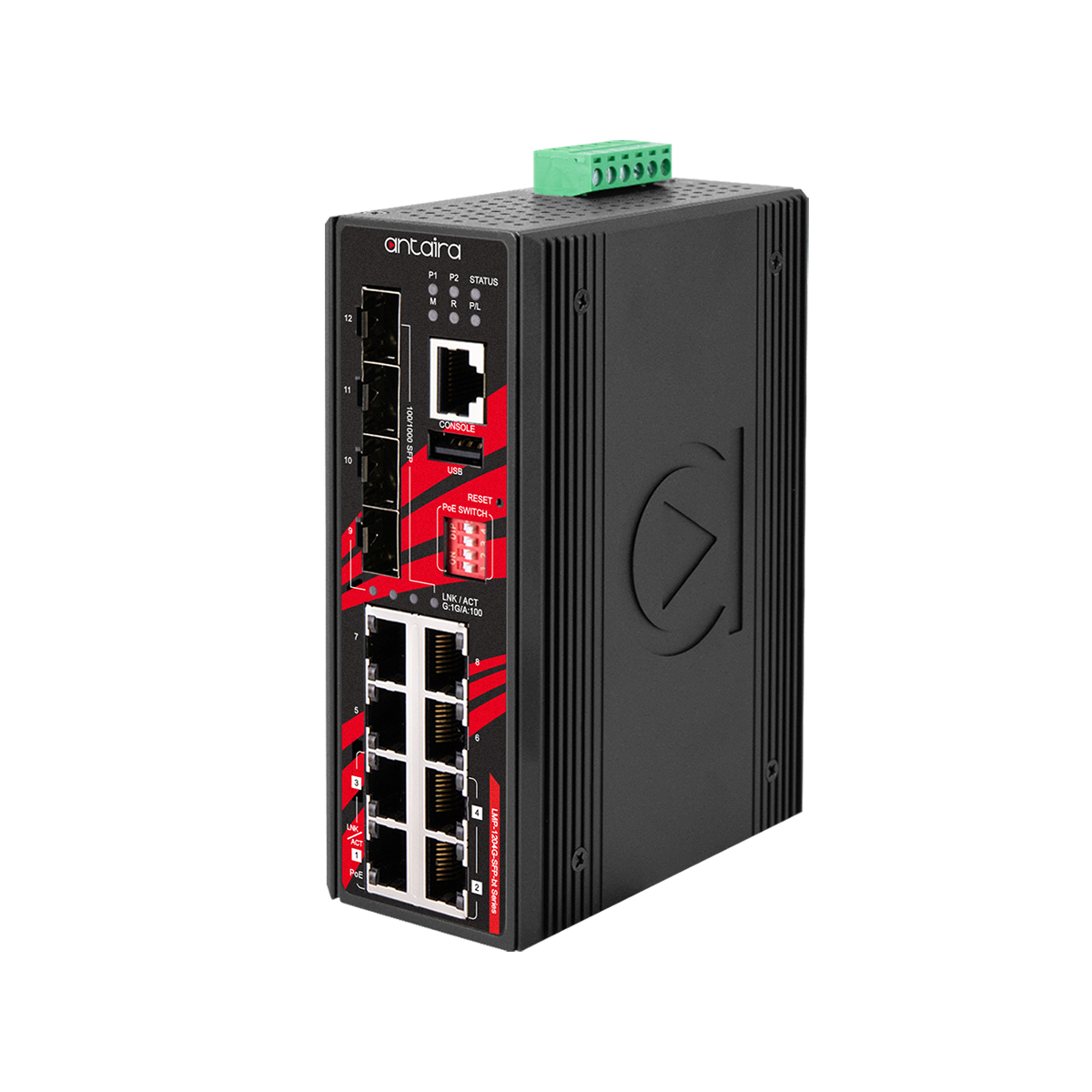

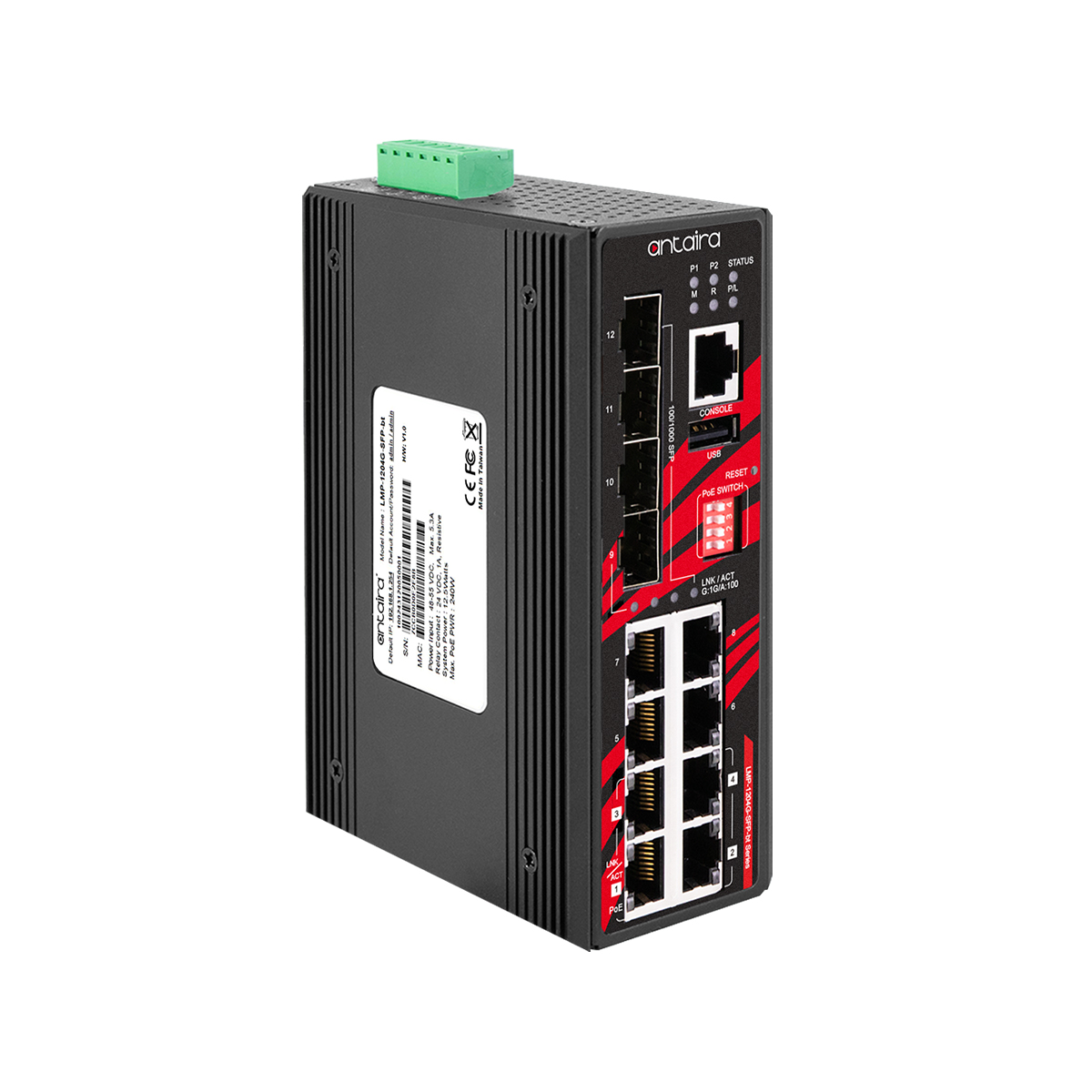

Antaira LMP-1204G-SFP-bt

Antaira Technologies’ LMP-1204G-SFP-bt is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support
for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt is a fully-manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network
redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP,
and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMP-1204G-SFP-bt is IP30 rated and DIN-rail mountable. It supports operating temperature range from -10°C to 65°C (STD). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining,
factory automation, security surveillance, ITS and any other outdoor or harsh environment.

• Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port, 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, and 4*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2/v3, up to 1024 Groups
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c

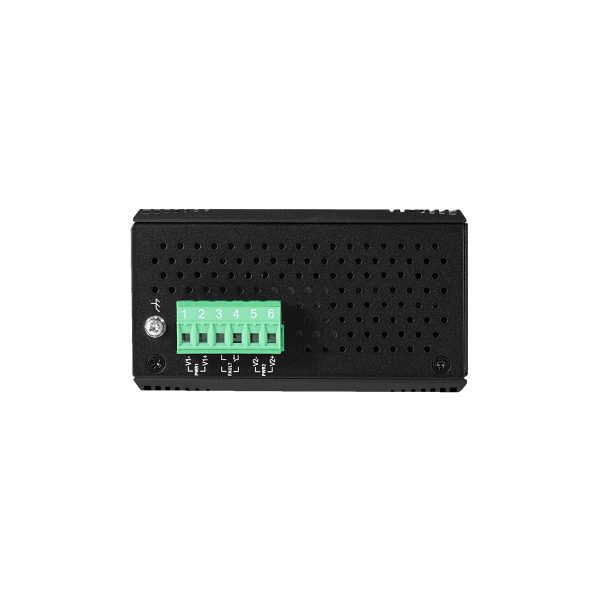

• Power Input: 48~55VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP30 Protection

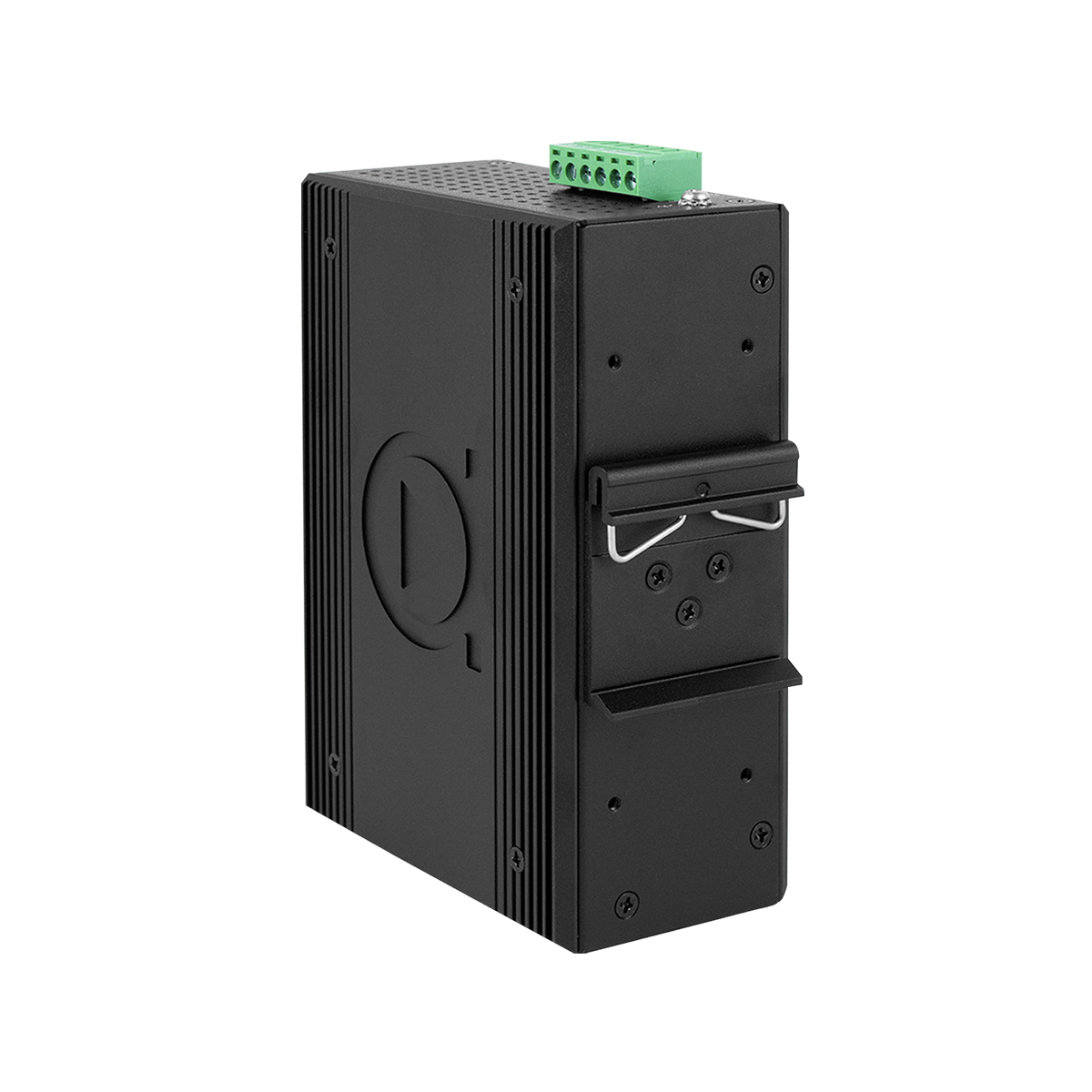

• DIN-Rail or Wall Mountable
• Operating Temperature Range (STD): -10° to 65°C
• 5-Year Warranty
