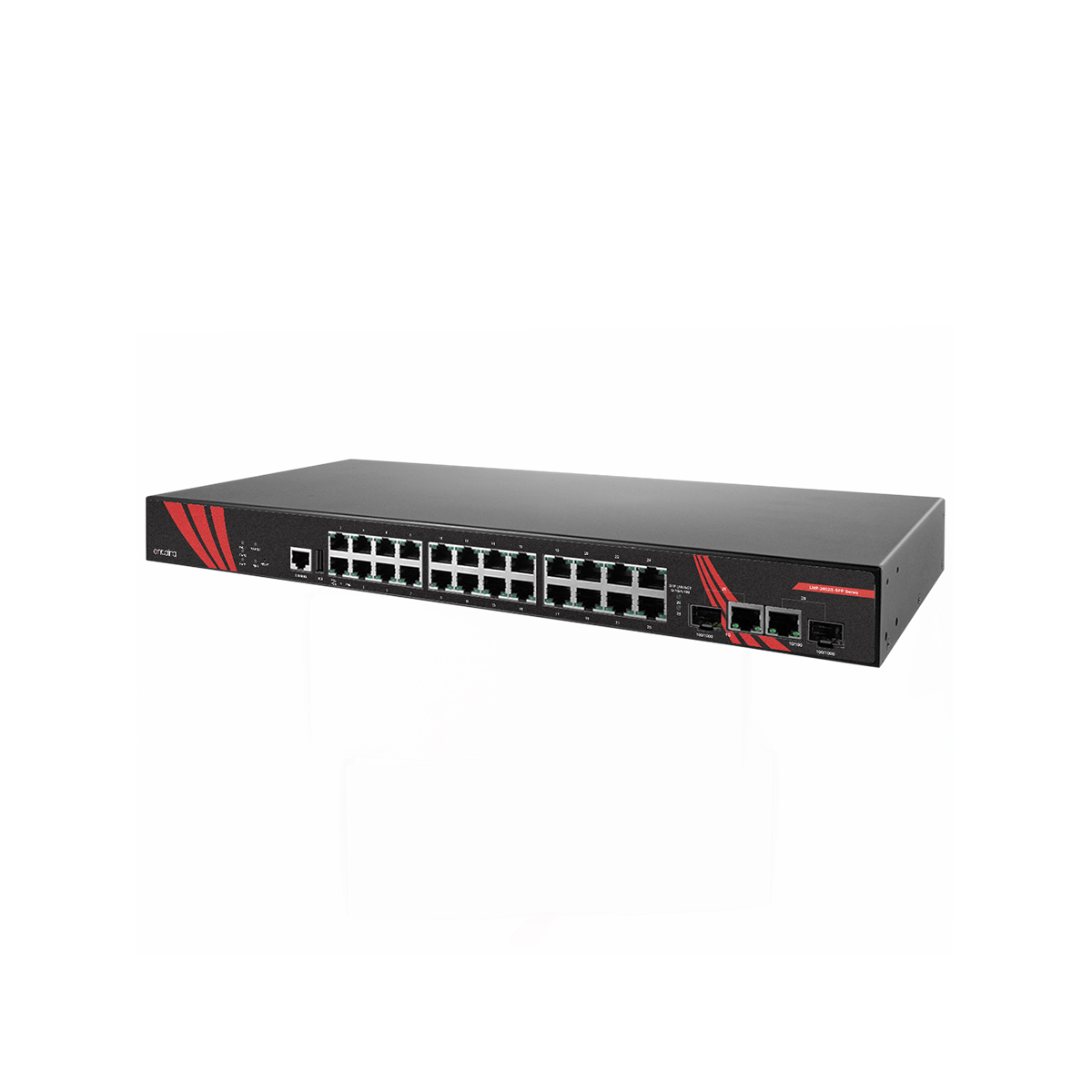

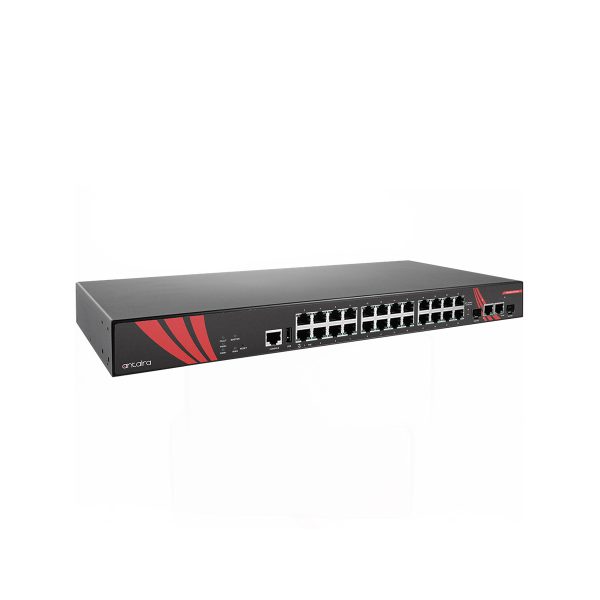

Antaira LMP-2602G-SFP

Antaira Technologies’ LMP-2602G-SFP series is a 26-port industrial gigabit PoE+ managed Ethernet switch, supporting operating temperatur of -10° to 65˚C. It features 24*10/100/1000Tx Ethernet ports with IEEE 802.3at high power PoE (30W/Port) and also provides
2*gigabit combo ports with 2*10/100/1000Tx RJ45 and 2*100/1000Fx SFP slots for fiber or twisted pair connections. This makes the product ideal for applications that demand high density of PoE+ port connectivity, wide bandwidth, and long-distance communication.

The LMP-2602G-SFP series is a fully manageable, Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring
Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management
for remote SCADA systems or control networks.

The LMP-2602G-SFP series is designed with IP40 rated 1U 19” rackmount and provides high EFT and ESD protection to prevent any unregulated voltage.

Supporting the two wide operating temperature models with the standard version in -10° to 65˚C or extended version in -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as, power/utility,
transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

• 24-port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
• 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
• System Power Input: 48~55VDC
• Built-in Relay Output Warning for Power Failure
• IP40 Rugged Metal Case Design
• Rack Mounting
• Operating Temperature Range – STD: -10°C to 65°C
• 5-Year Warranty
