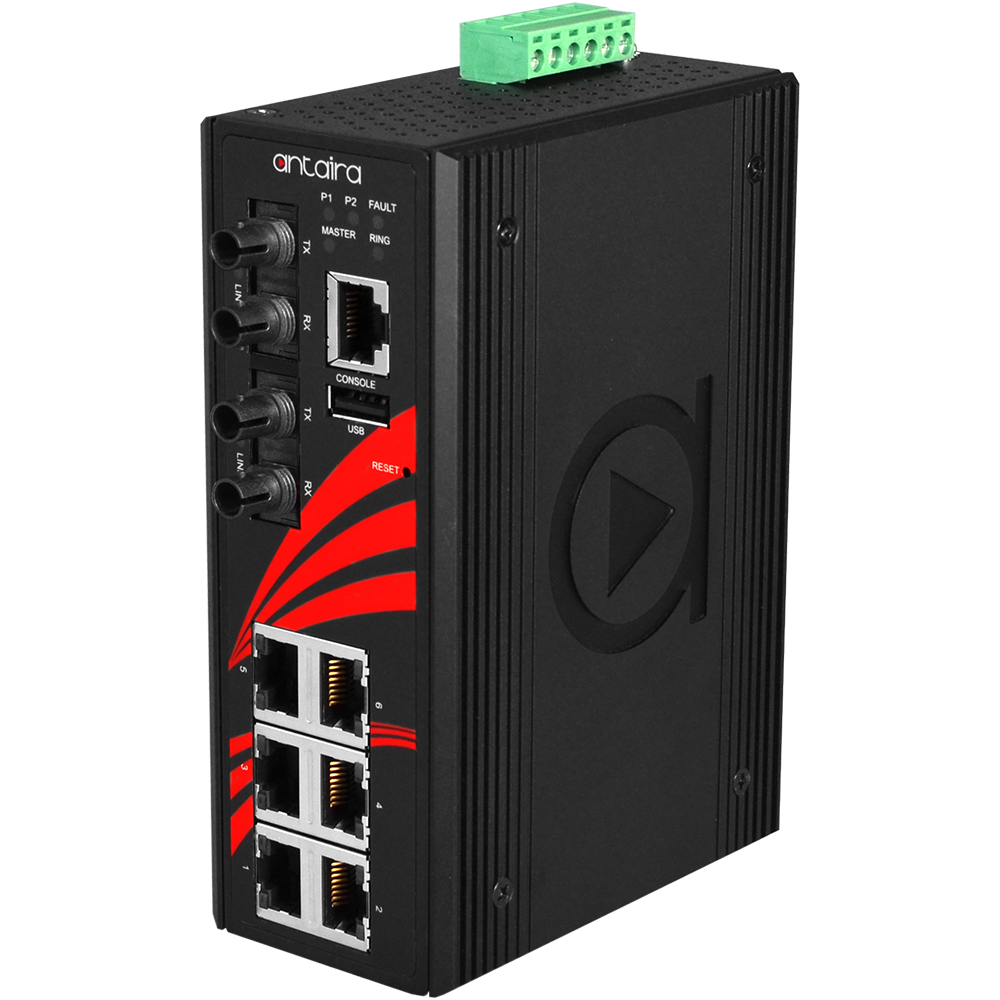

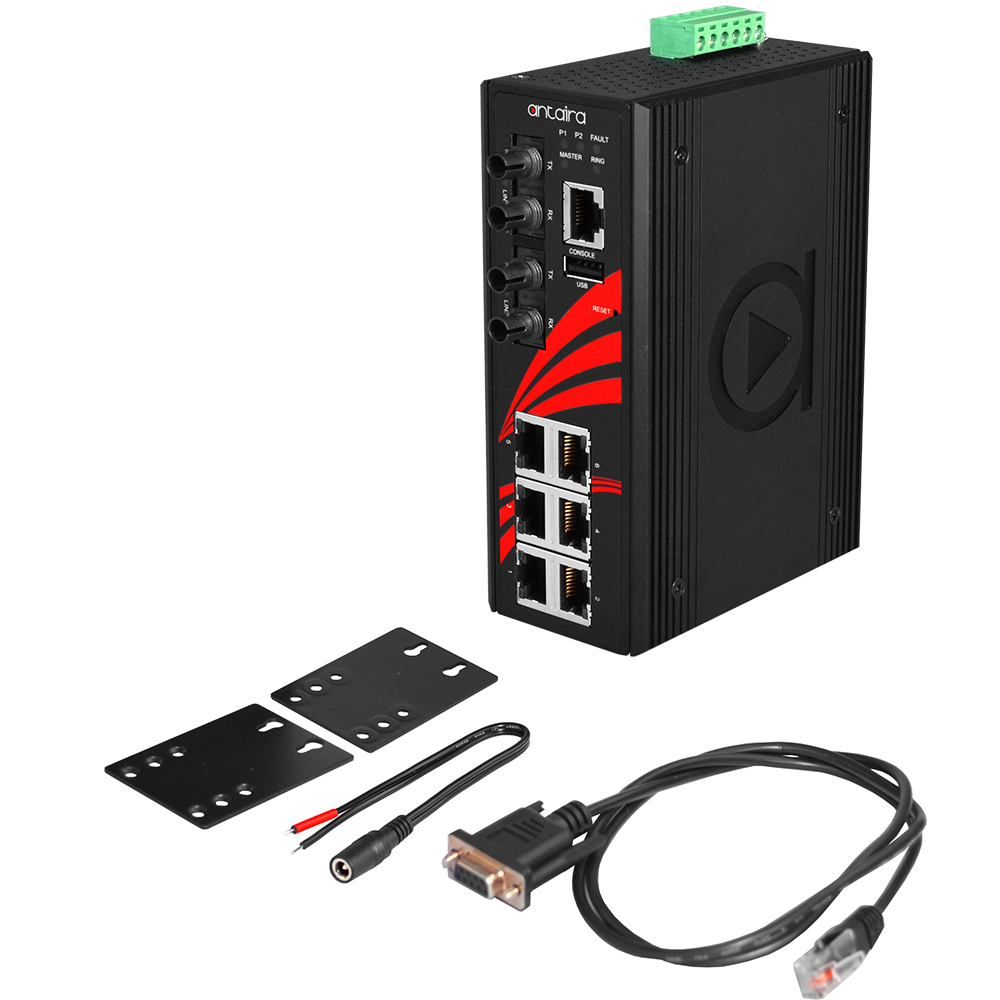

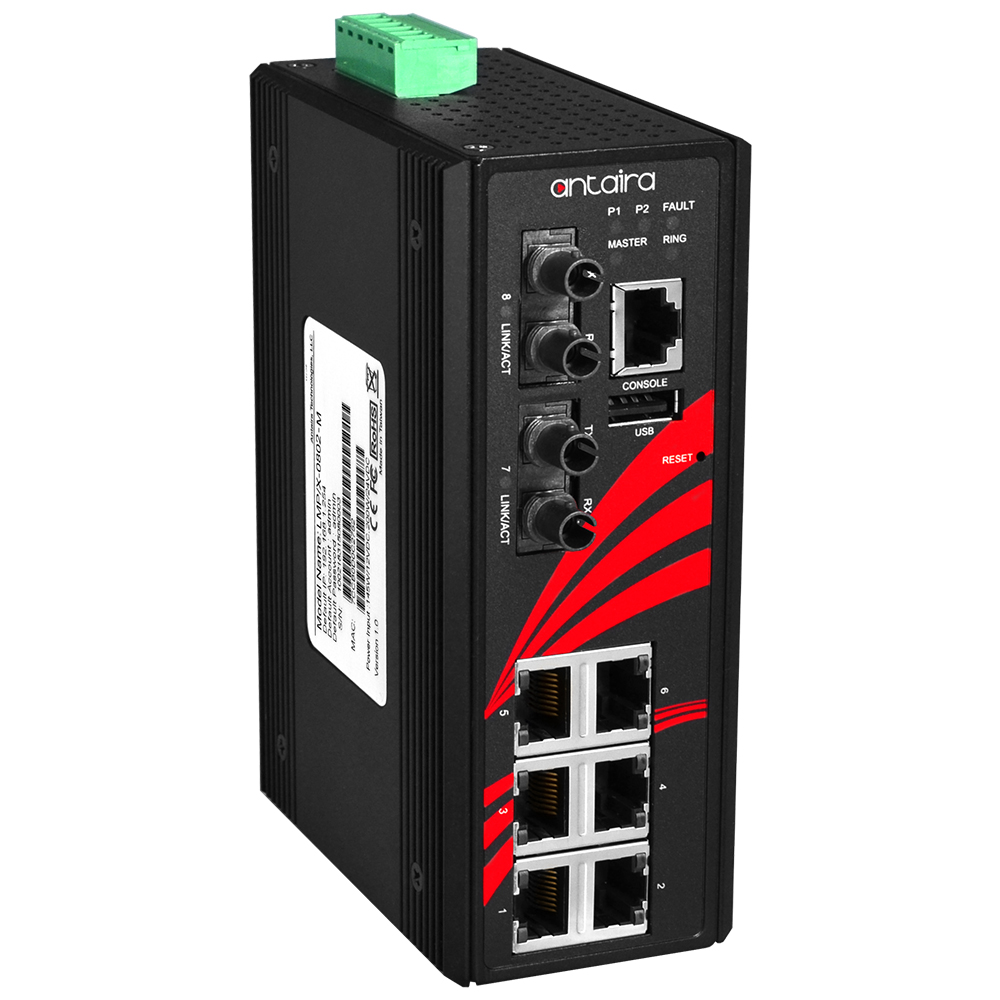

Antaira LMX-0802-ST-M

Antaira’s LMX-0802-ST-M is a 8-port industrial managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx multi-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2
network management software.

The LMX-0802-ST-M has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation,
ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.

• Network Broadcast Storm Protection
• Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Multi-Mode ST Fiber Ports
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
• Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
• System Warning Setting for Automatic Warning through E-mail

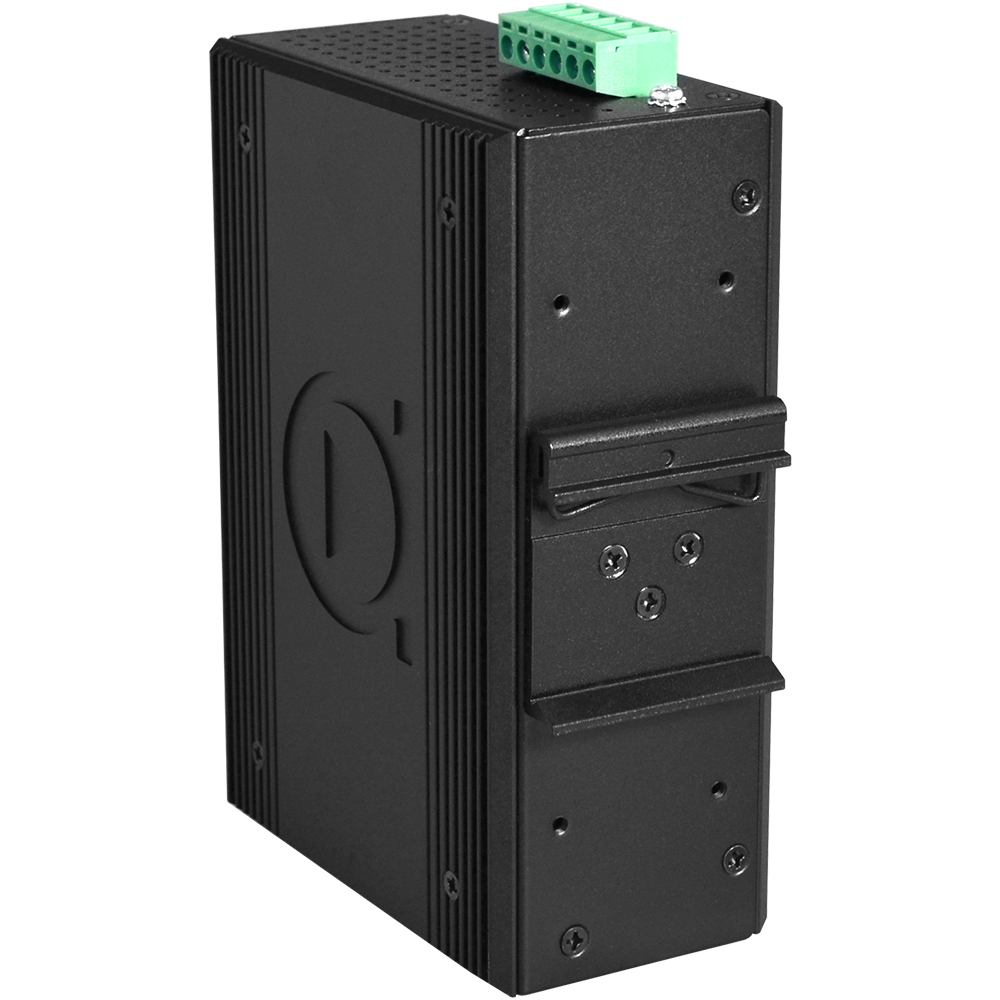

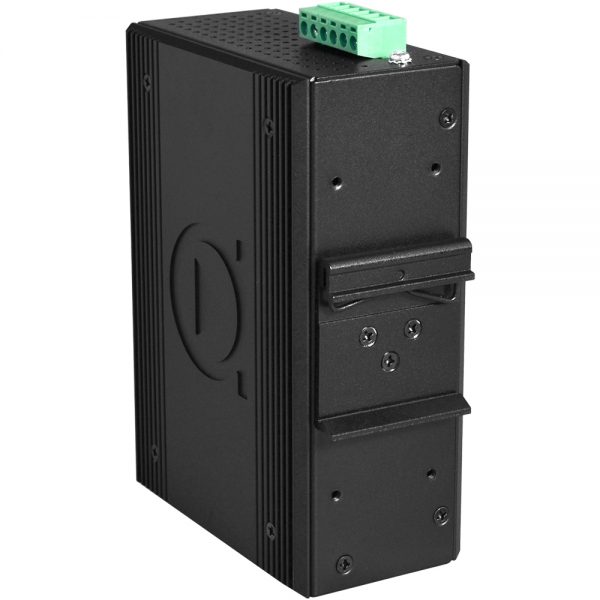

• DIN-Rail and Wall Mount Support
• Operating Temperature Range – STD: -10° to 70° C
• 5-Year Warranty
