Antaira LMX-0804G-SFP-T

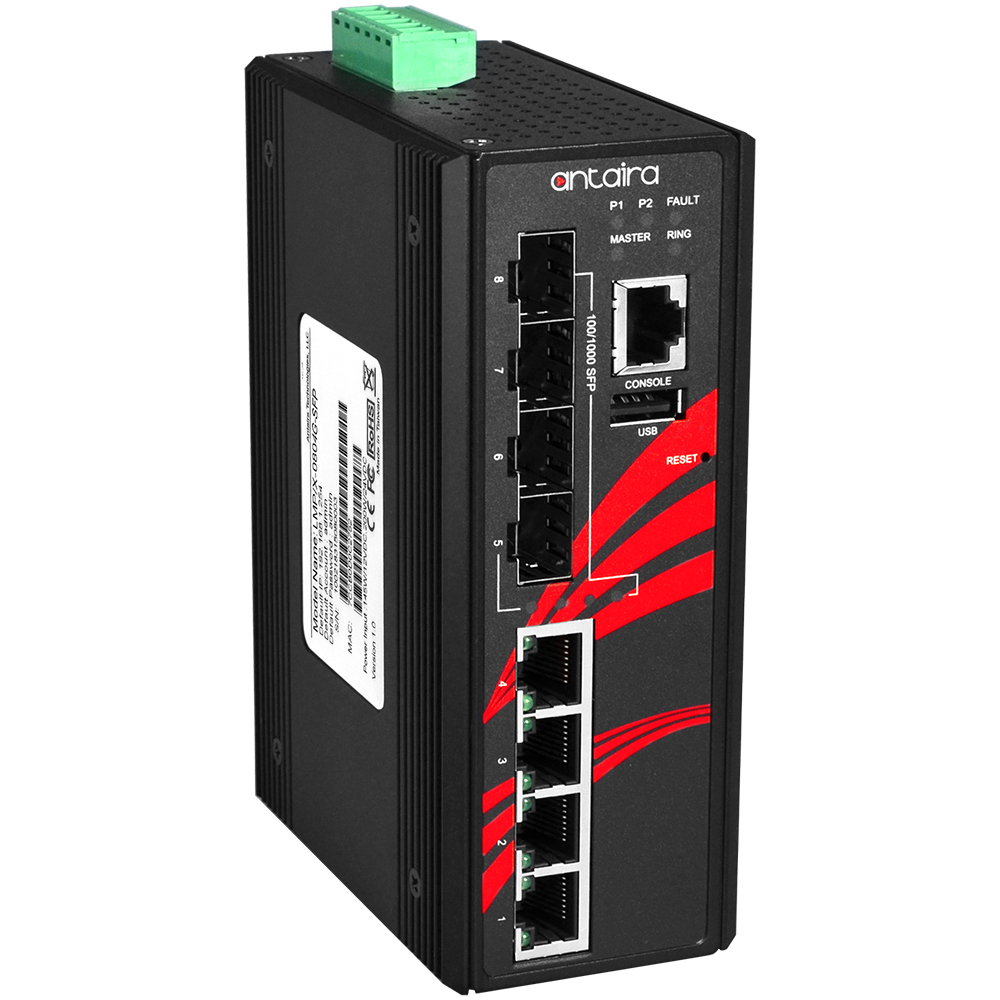

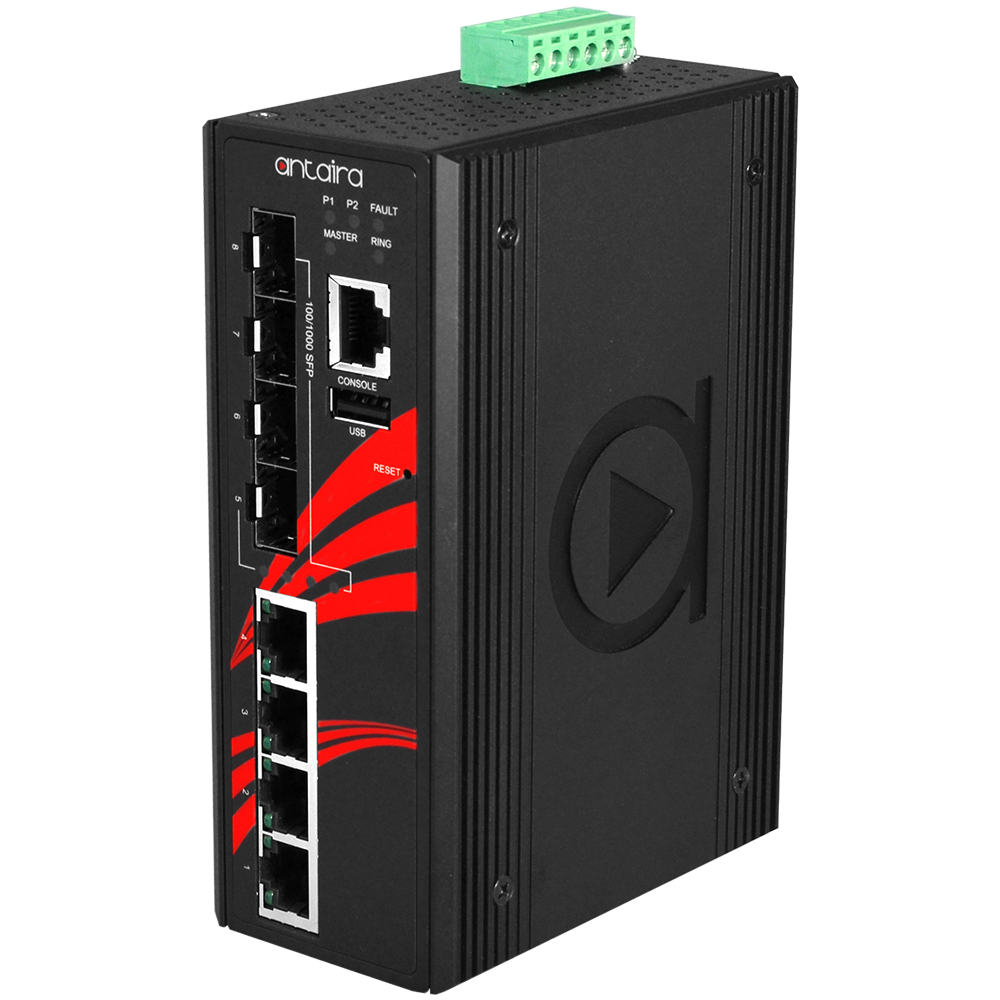

Antaira’s LMX-0804G-SFP is a 8-port industrial Gigabit Managed Ethernet switch that is embedded with 4*10/100/1000Tx Gigabit ports + 4*100/1000Fx SFP ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network
management software.
The LMX-0804G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation,
ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.
- Network Broadcast Storm Protection
- Supports 4*10/100/1000Tx Gigabit Ports + 4*100/1000Fx SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range – EOT: -40° to 75° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation (LACP) IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch) IEEE 802.1Q Virtual LANs (VLAN) IEEE 802.1x Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization |
| Processing Type | Store and Forward |
| Protocol | IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 4 ports |
| 10/100 BASE-T(X) | 4 ports |
| Fiber Interface | |
| Fiber Port Count | 4 ports |
| 100/1000 BASE-(F)X SFP | 4 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 4 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 16Gbps |
| Software | |
| Configuration | Web Console, Telnet, CLI |
| VLAN Group | 1~4094 groups |
| IGMP Group | Up to 256 groups |
| Ethernet Redundancy | STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2( |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 15 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

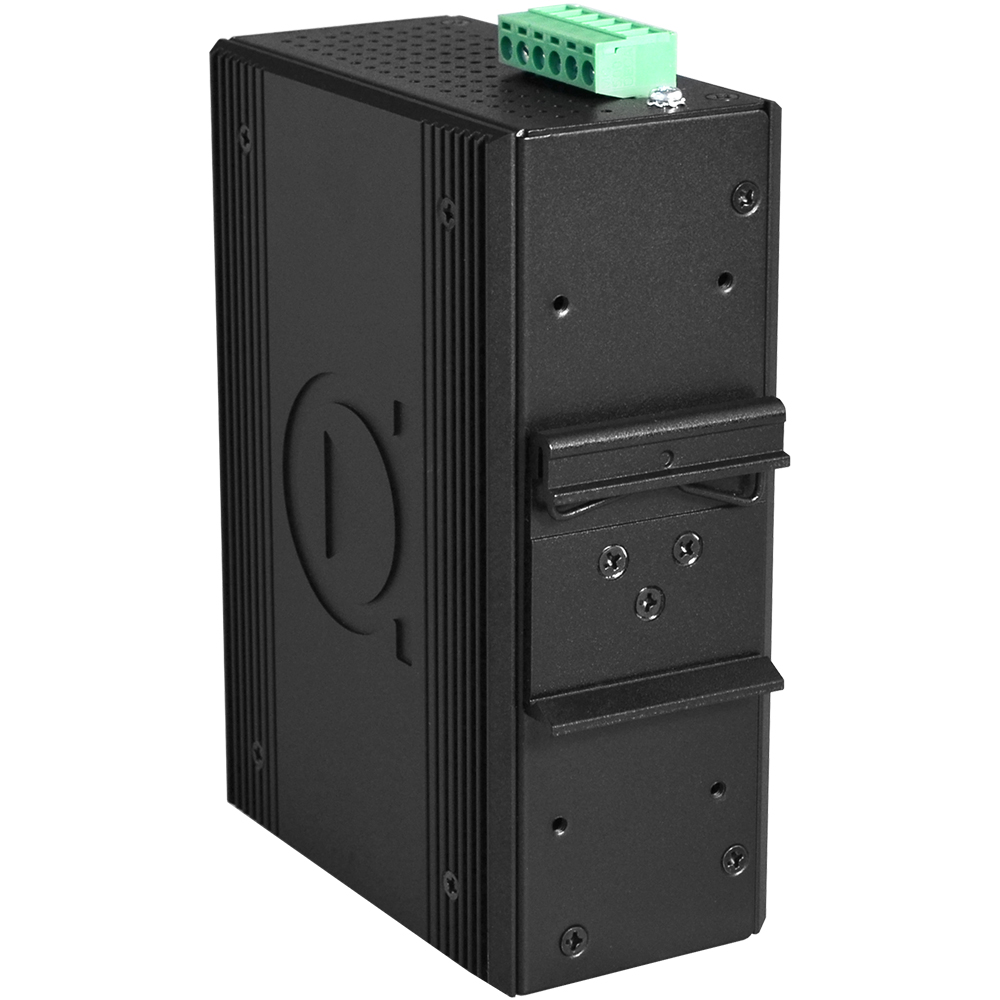

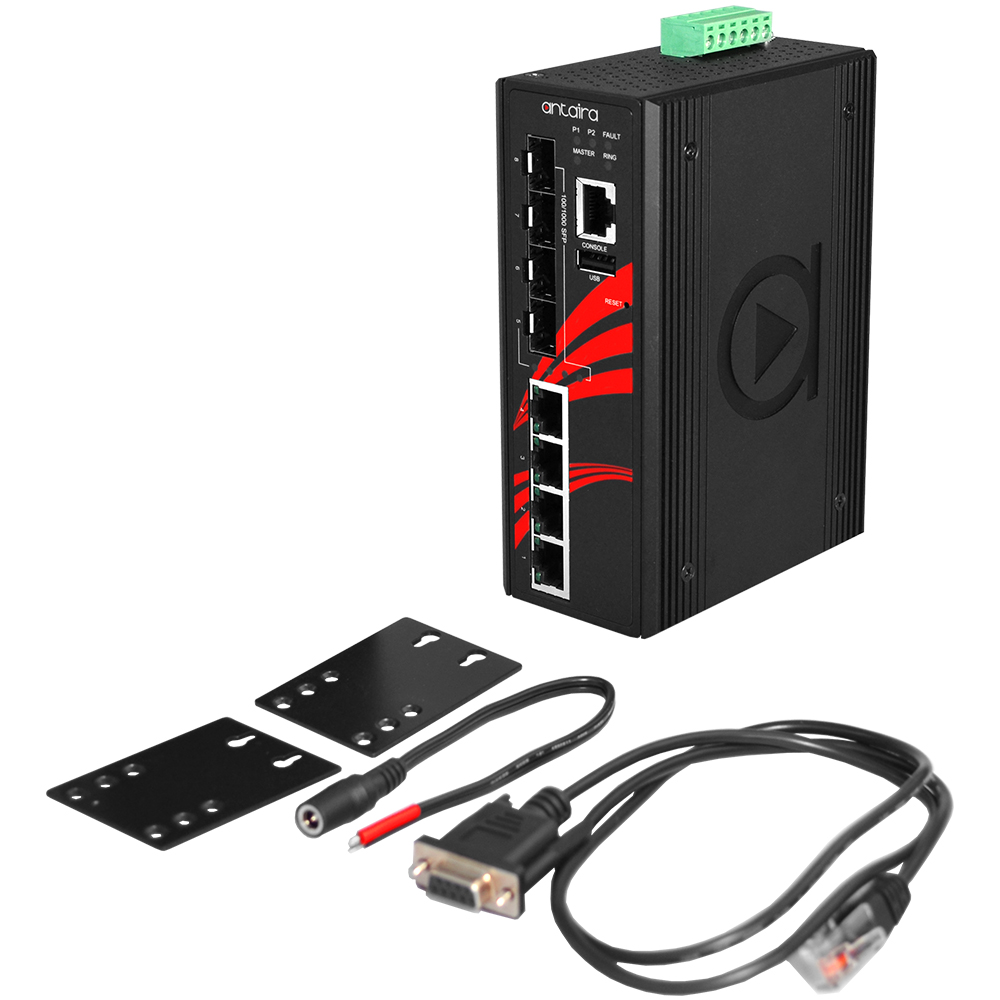

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 2.5 lbs Shipping weight : 3.0 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 60950-1 | ✔ |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
