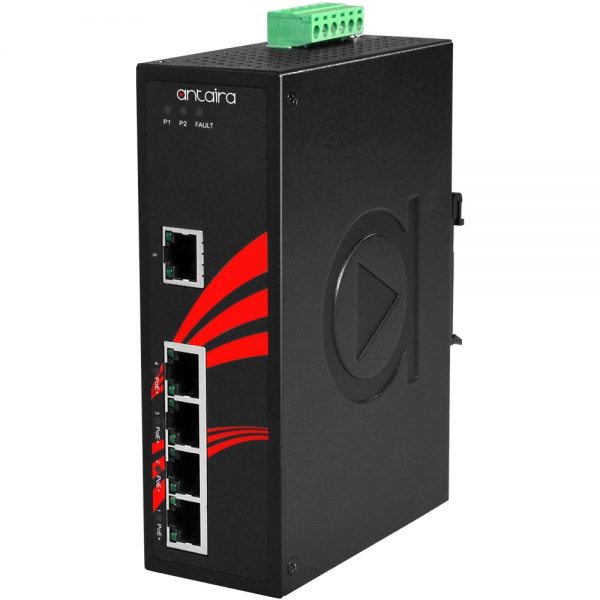

Antaira LNP-0500G-24-T

5-Port Industrial PoE+ Unmanaged Gigabit Ethernet Switch w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx. 12~36V DC Power Input Support. EOT: -40° ~ 75°C

Mã: LNP-0500G-24-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-0500G-24-T

Mô tả
Sản phẩm liên quan

Antaira Technologies’ LNP-0500G-24-T is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. LNP-0500G-24 is an ideal
solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.

LNP-0500G-24-T is IP30 rated and DIN-rail mountable and has an extended temperature range -40° to 75° C. This product also supports a low voltage power input range of 12~36VDC. It also provides Ethernet connectivity with PoE functions for outdoor or harsh
industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory
automation.

Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Port, Auto MDI
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection 2,000 VDC Support
ESD Protection 6,000 VDC Support
Redundant Power Input Design: 12~36VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design

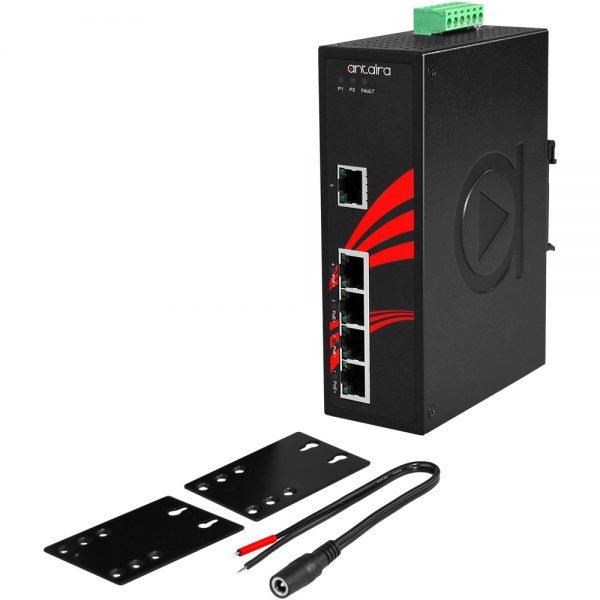

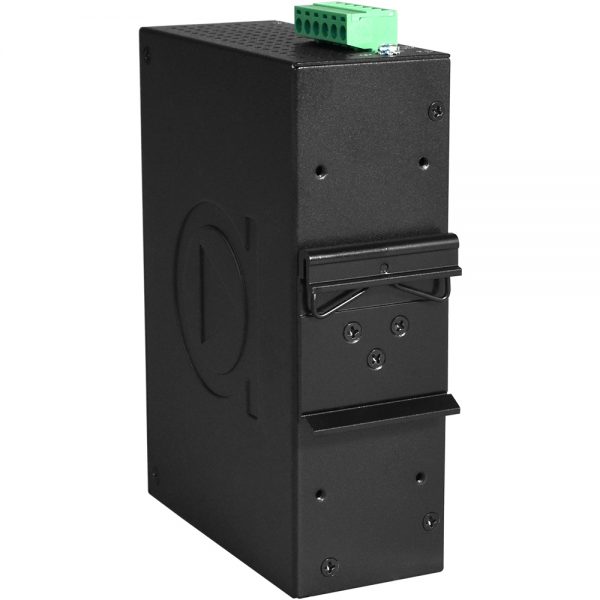

DIN-Rail and Wall Mount Support Included
Operating Temp. – EOT: -40~75C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	5 ports
10/100/1000 BASE-T(X)	5 ports
PoE Port	4 ports (30W/port)
PoE Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Performance
MAC Table Size	8K
Jumbo Frame	10 Kbytes
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 10Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–36V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	25 Watts
Max. PoE Power Budget	120 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	46 × 142 × 99 mm
Weight	Unit weight : 1.6 lbs Shipping weight : 2.1 lbs
Regulatory Approvals
Certifications	FCC, CE
UL 61010-1 / UL 61010-2-201	✔
ISA 12.12.01 (UL C1D2)	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHs Compliant
Warranty	5 years
