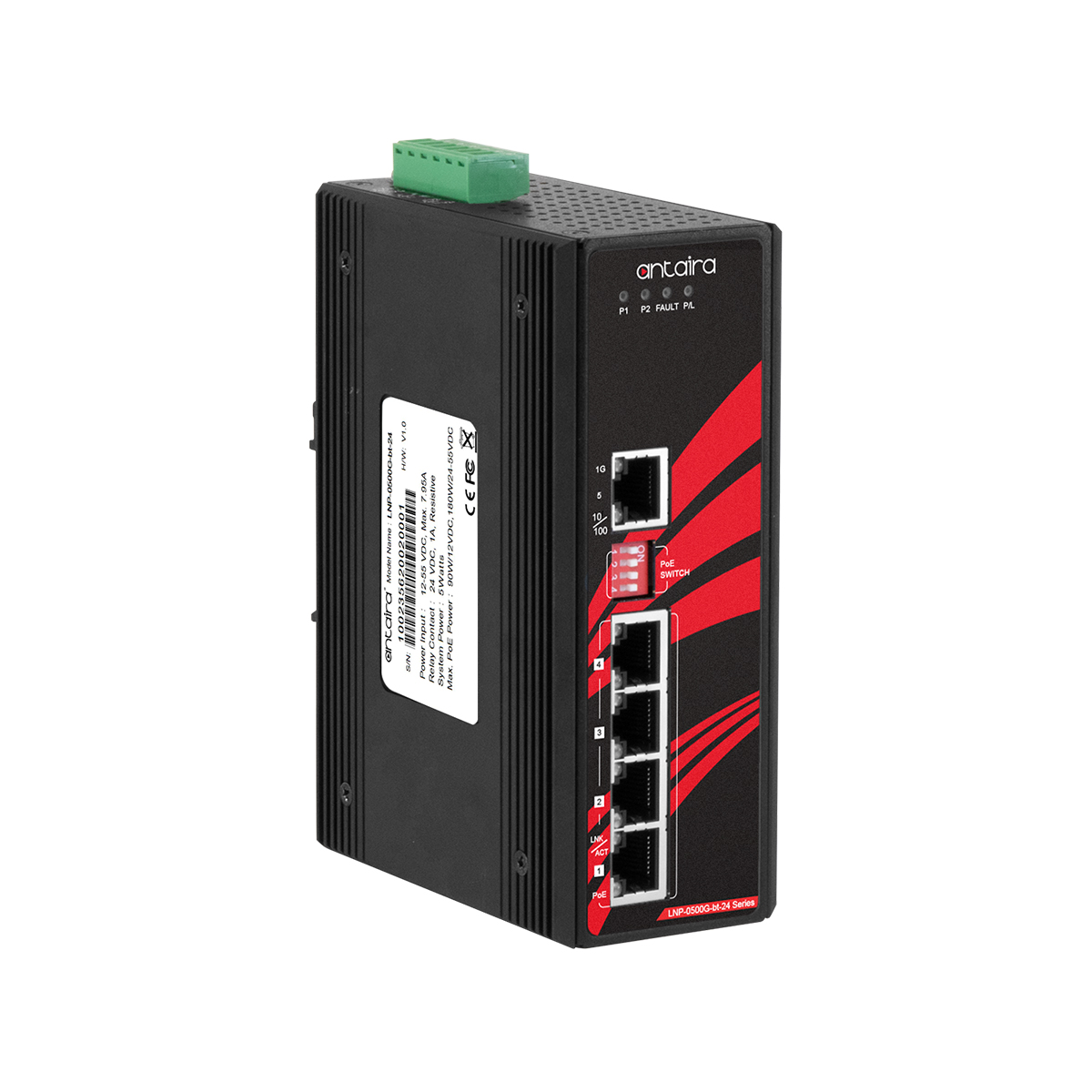

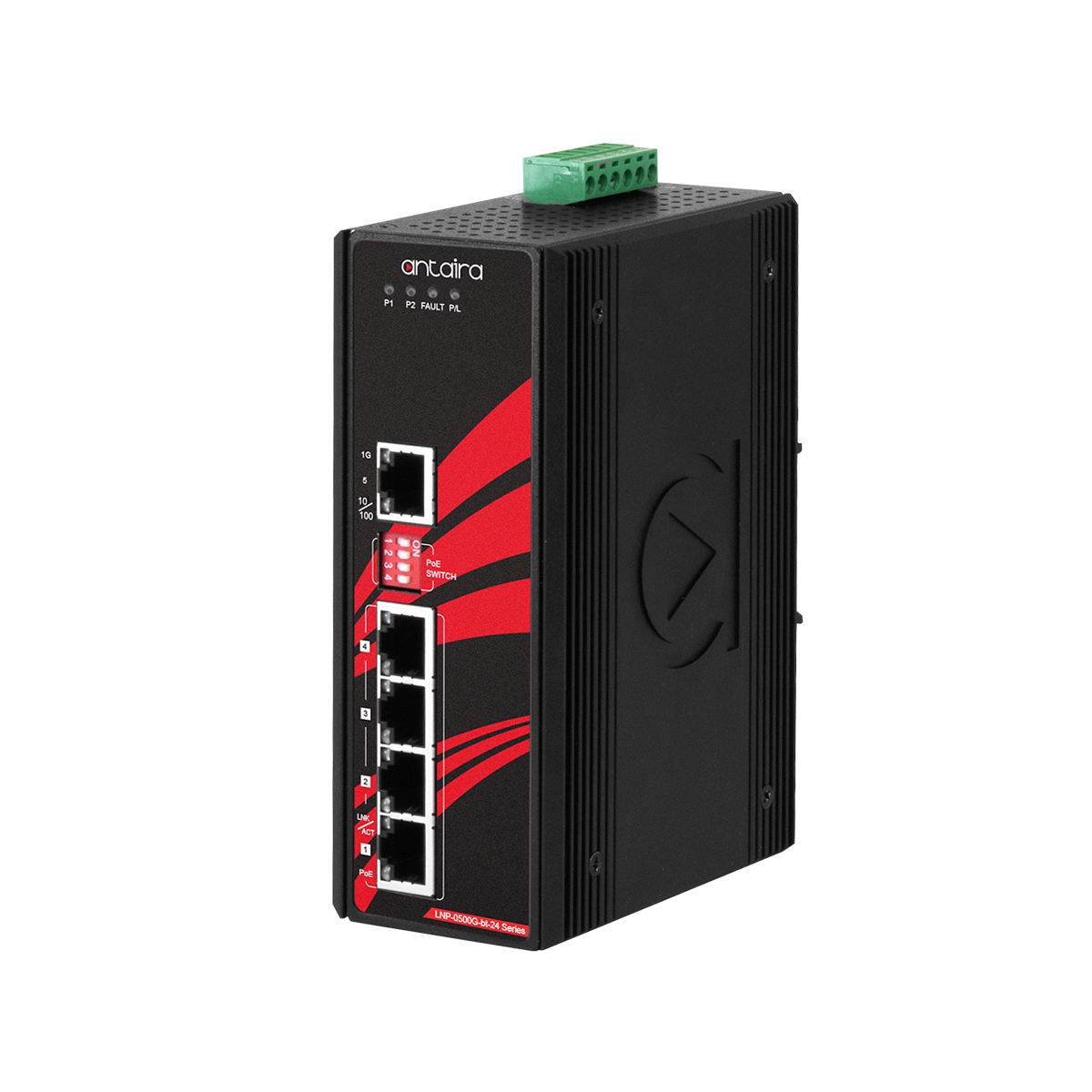

Antaira LNP-0500G-bt-24

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx. 12~55VDC Power Input

Mã: LNP-0500G-bt-24 Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-0500G-bt-24

Mô tả
Sản phẩm liên quan

Antaira Technologies’ LNP-0500G-bt-24 is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. It supports industrial standard
temperatures range from -10°C to 65°C and low voltage power input from 12 to 55V DC. It is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities.

LNP-0500G-bt-24 is IP30 rated and DIN-rail mountable. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and
mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
10.0Kbytes Jumbo Frame Support
Redundant Power Input Design: 12~55VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design

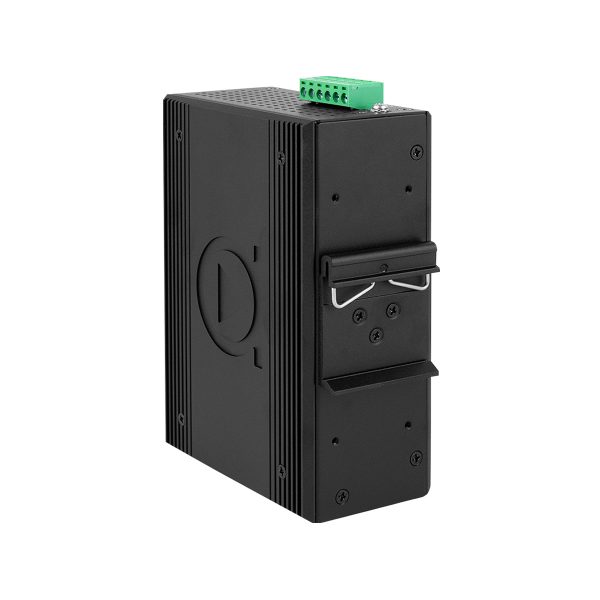

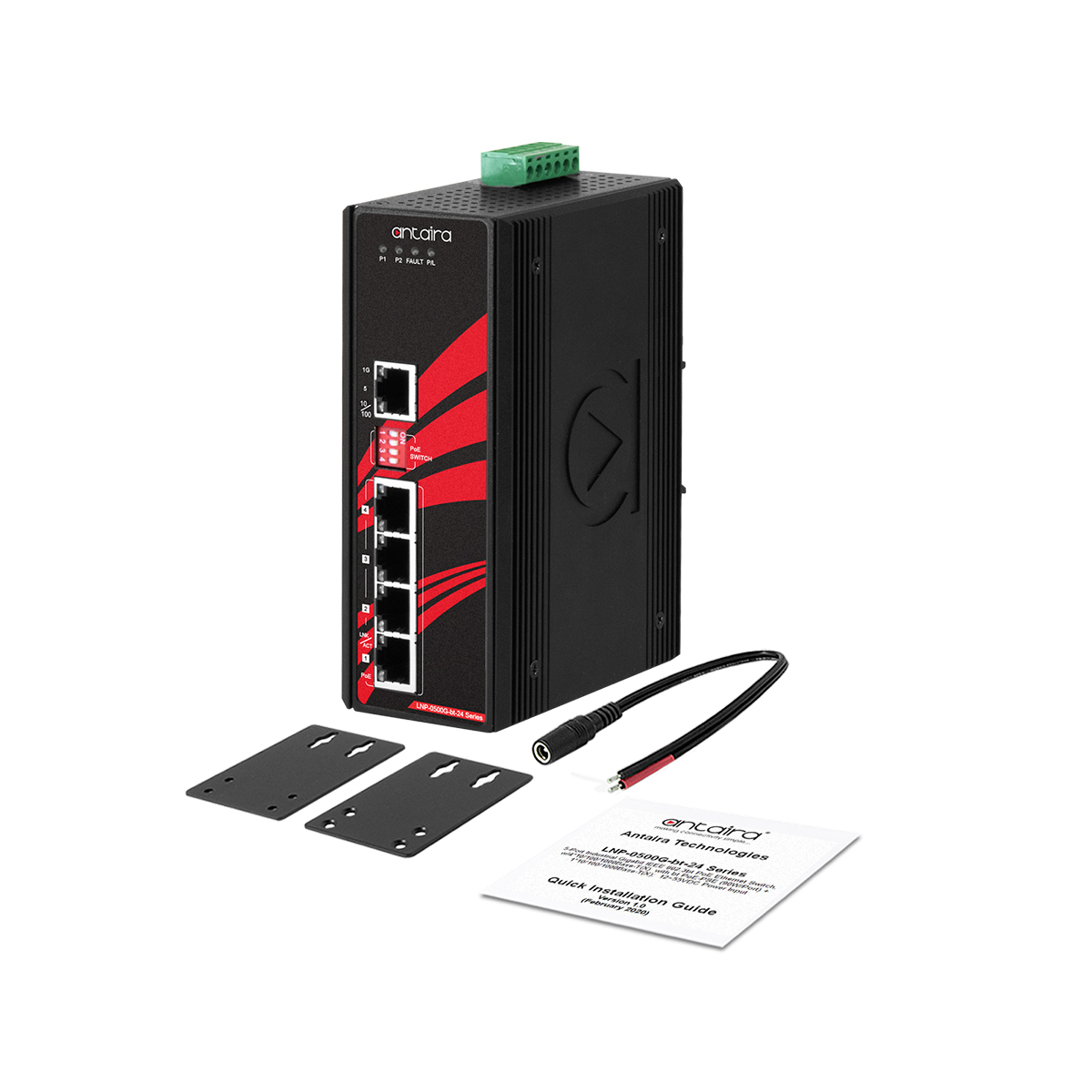

DIN-Rail and Wall Mount Support Included
Operating Temperatures (STD): -10°~65°C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3at/af/bt Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x back pressure flow control
Ethernet Interface
Ethernet Port Count	5 ports
10/100/1000 BASE-T(X)	5 ports
PoE Port	4 port (90W/port)
PoE Pin Assignment	V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8
Other Interface
DIP Switch	Control PoE Function by Port
LED Indicator	System: Power 1, Power 2, Fault, PoE Load (P/L) Ethernet Ports: Speed/Link/Active PoE: On-connected to PD device
Performance
MAC Table Size	8K
Jumbo Frame	10K bytes
Memory Buffer	1Mbit
Transfer Rate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet port
Switching Architecture	Back-Plane (Switching Fabric): 10Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–55V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	5 Watts
Max. PoE Power Budget	Max. 90 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 65° C (14° to 149° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	54 x 142 x 99 mm
Weight	Unit weight : 1.85 lbs Shipping weight : 2.51 lbs
Regulatory Approvals
Certifications	FCC, CE
EMI	FCC Part 15 Subpart B Class A, CE EN55032 Class A EN61000-6-4 Class A
EMS	CE EN55035/EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6
Green	RoHS Compliant
Warranty	5 years
