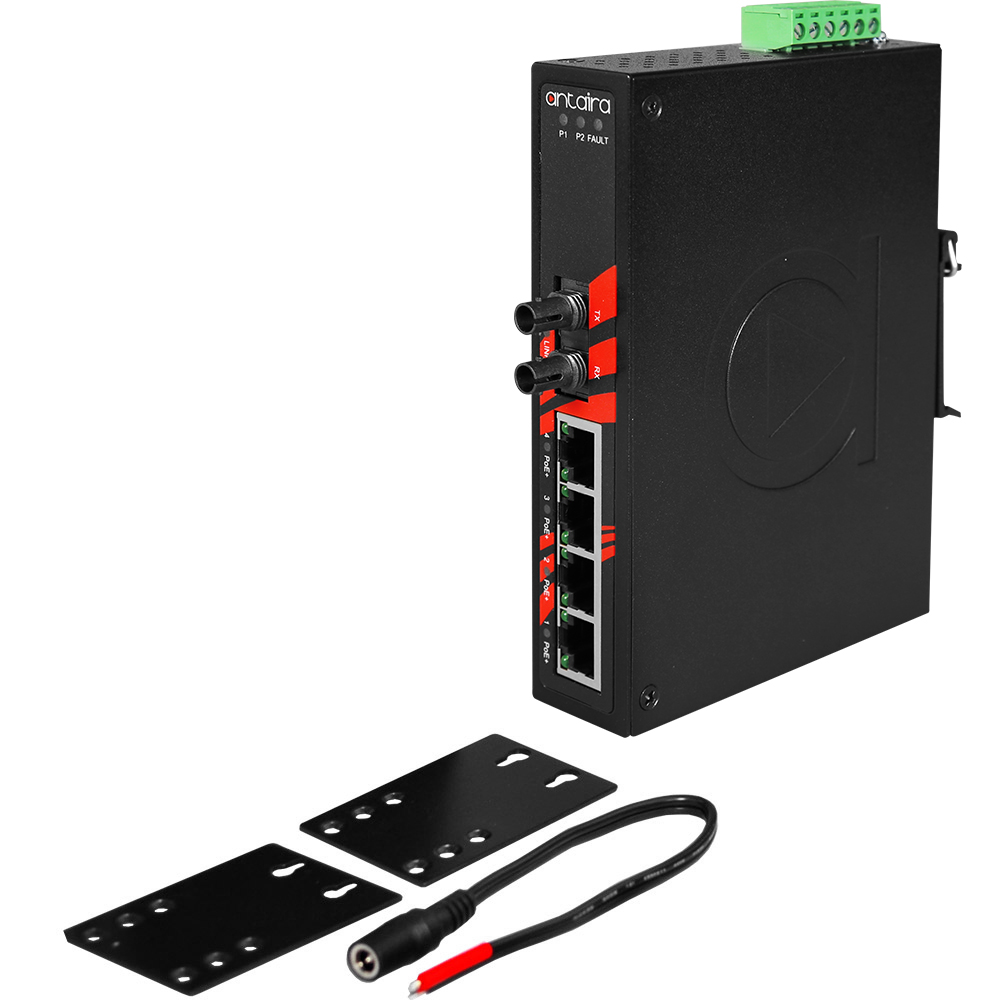

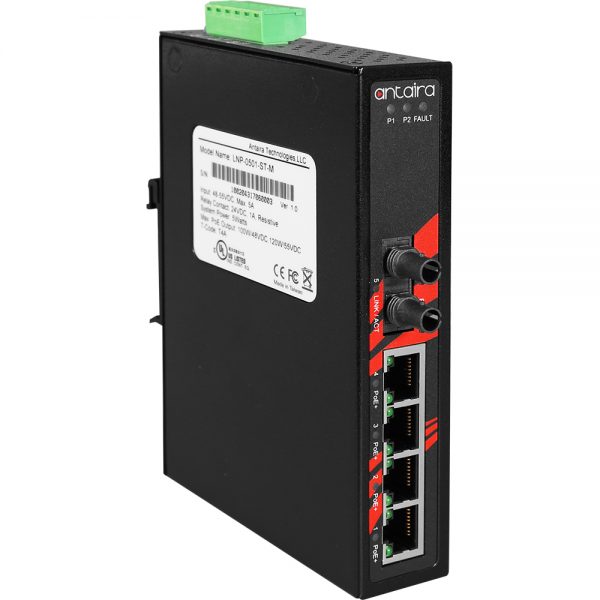

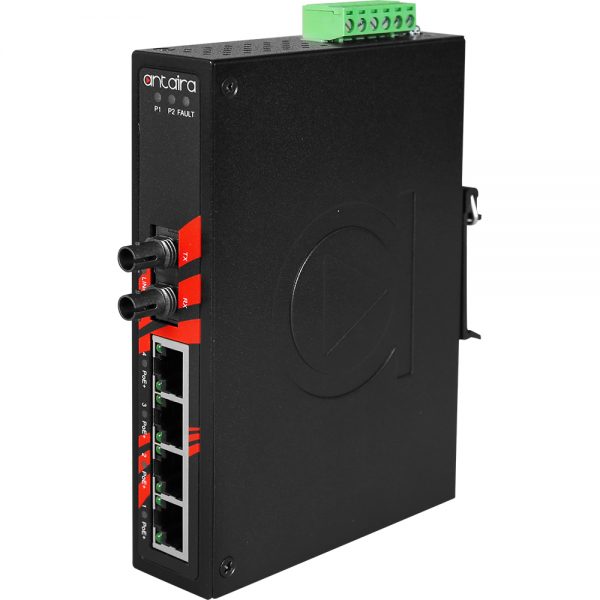

Antaira LNP-0501-ST-M-T

Antaira Technologies’ LNP-0501-ST-M-T is an industrial PoE+ unmanaged Ethernet switch featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with ST connectors for multi-mode 2Km. Each Ethernet port supports an IEEE 802.3at high power PoE+
output up to 30W per port, making it ideal for applications that demand a PoE power source. This model provides a low voltage input range of 12~36VDC with an internal voltage booster to support a 48VDC PoE power output.

LNP-0501-ST-M-T is IP30 rated and DIN-rail mountable, supporting operating temperature from -40° to 75° C. It also provides Ethernet connectivity with PoE functions and a fiber connection for mobile surveillance applications utilizing a low voltage power
source as a battery, and for any other industrial automation field sites needing a 24VDC power source, such as, security surveillance, traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants,
and lastly, automated production lines in factory automation.

• Network broadcast storm protection
• 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
• 1-Port 100Fx SC/ST type connector (Multi / Single mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• Redundant Power Input Design – 48~55VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design

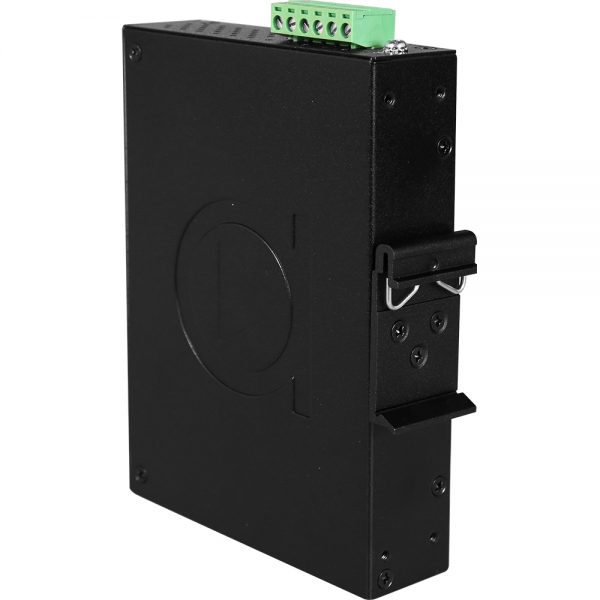

• DIN-Rail and Wall Mount support
• Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty
