Antaira LNP-0702G-SFP

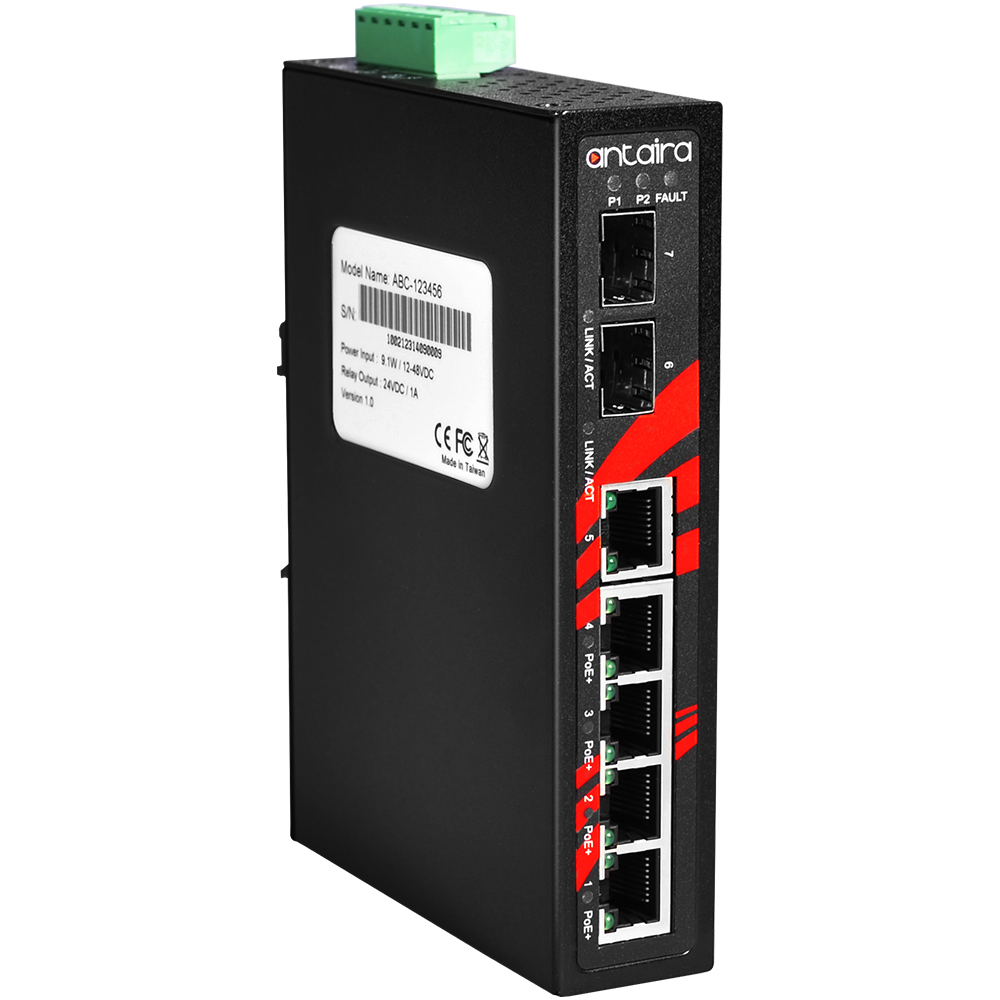

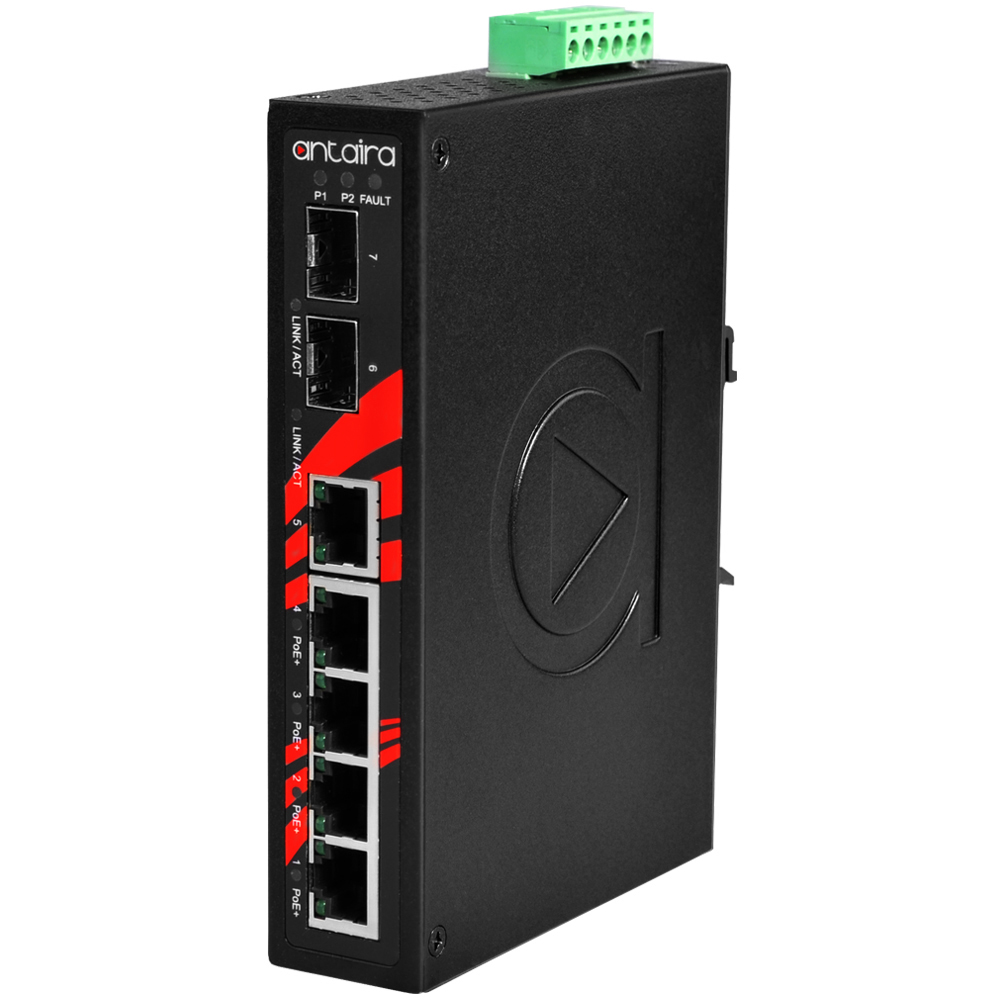

Antaira’s LNP-0702G-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with five gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two
dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.
This model provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in
relay warning function alerts maintainers when power failures occur.
LNP-0702G-SFP has an operating temperature range of -10 to 70° C, and is a perfectly designed product to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.
- Supports 4-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per port, 1-Port 10/100/1000Tx + 2-Port 100/1000 SFP
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 14Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Aluminum Case Design

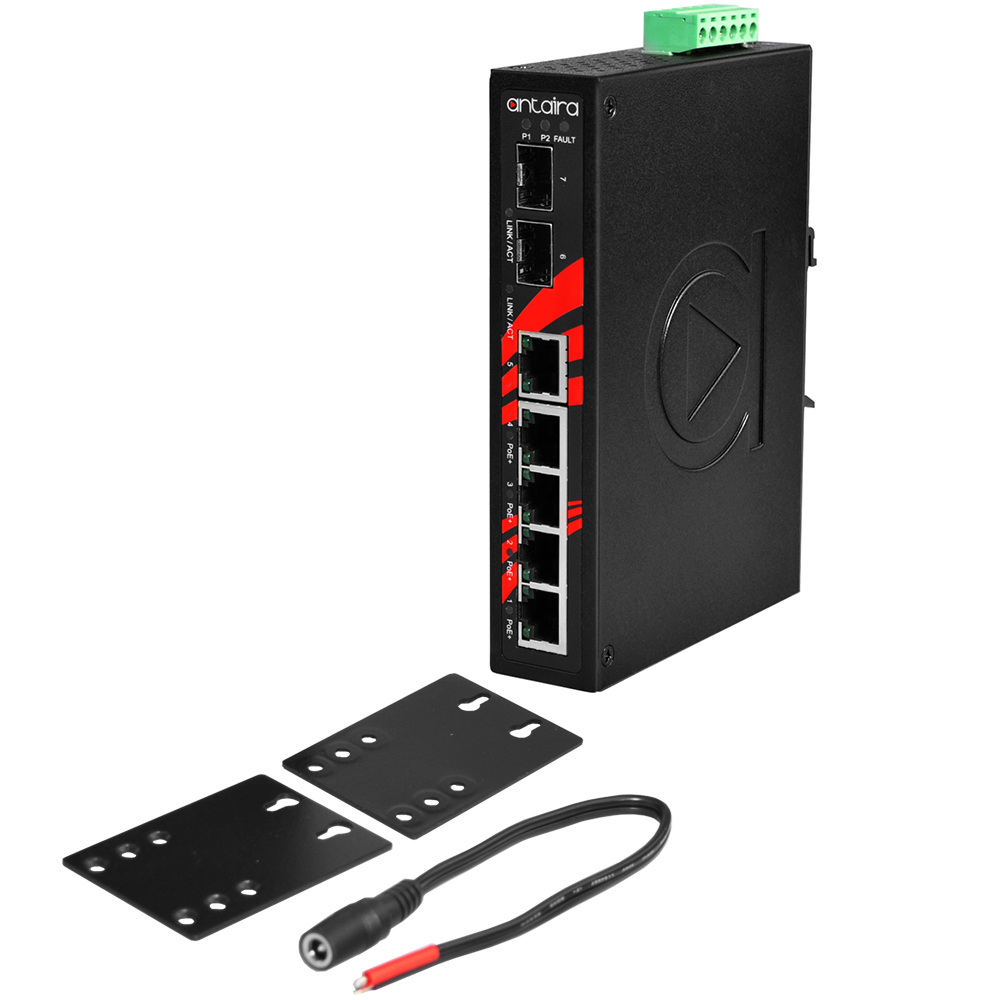

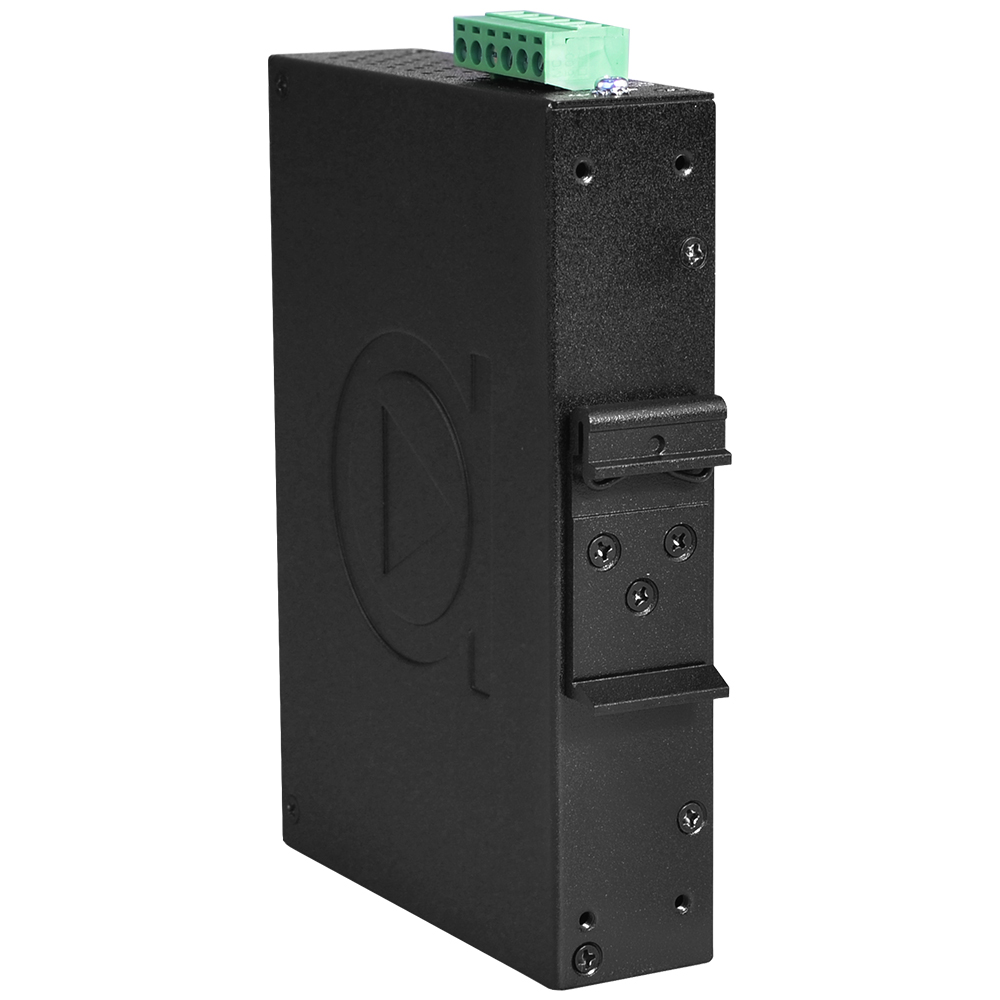

- DIN-Rail and Wall Mount Support
- Operating Temperature Range – STD: -10° to 70° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet IEEE 802.3az EEE Power Management |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 5 ports |
| 10/100/1000 BASE-T(X) | 5 ports |
| PoE Port | 4 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 100/1000 BASE-(F)X SFP | 2 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 14Gbps |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 48V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 10 Watts |
| Max. PoE Power Budget | 120 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 30 × 142 × 99 mm |
| Weight | Unit weight : 1.0 lbs Shipping weight : 1.5 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
