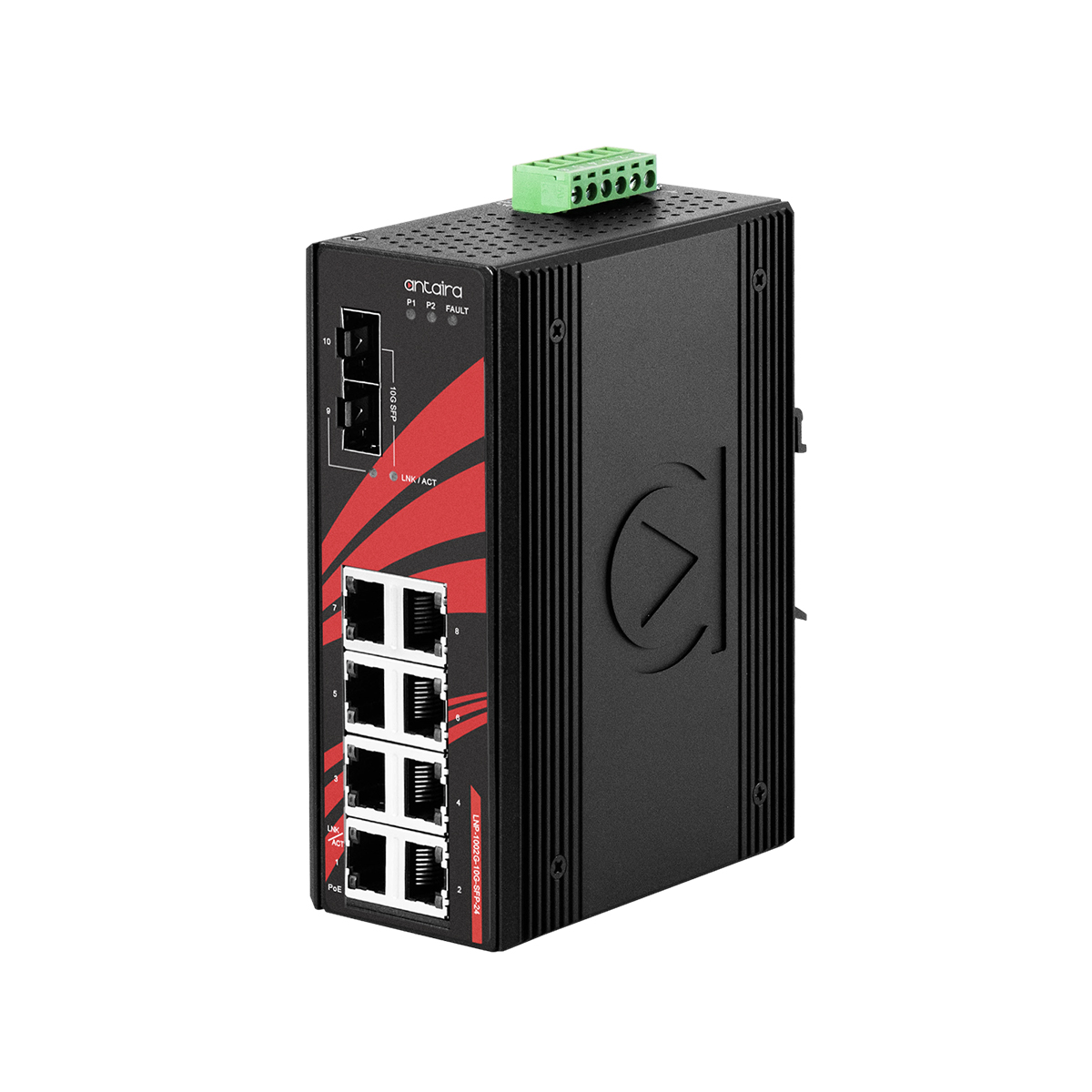

Antaira LNP-1002G-10G-SFP-24
Antaira Technologies’ LNP-1002G-10G-SFP-24 is industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. It is designed with 2*10G SFP+ slots which provide options
for long-distance fiber connections. It is designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C.
LNP-1002G-10G-SFP-24 is IP30 rated and DIN-rail mountable. Its is designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, it provides connectivity for outdoor or harsh
industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 56Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 9,216bytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design

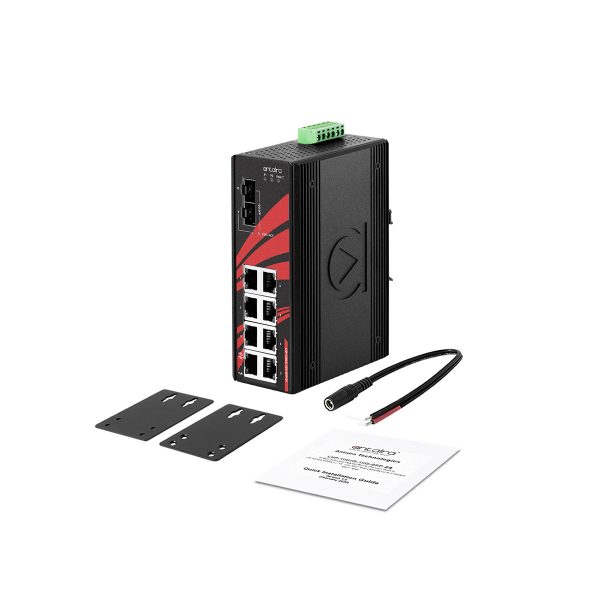

- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°~65°C
- 5-Year Warranty Antaira
| Technology | |
| IEEE Standards | IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 10G SFP+ | 2 ports |
| Wavelength | Refers to SFP module |
| Other Interface | |
| LED Indicator | System: Power 1, Power 2, Fault Ethernet Ports: On-Link/Flash-data transmitting PoE: On-connected to PD devices SFP: Link/Active |
| Performance | |
| MAC Table Size | 16K |
| Jumbo Frame | 9,216 bytes |
| Memory Buffer | 8 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port 14,880,000pps for 10 Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 56Gbps |
| Power Requirements | |

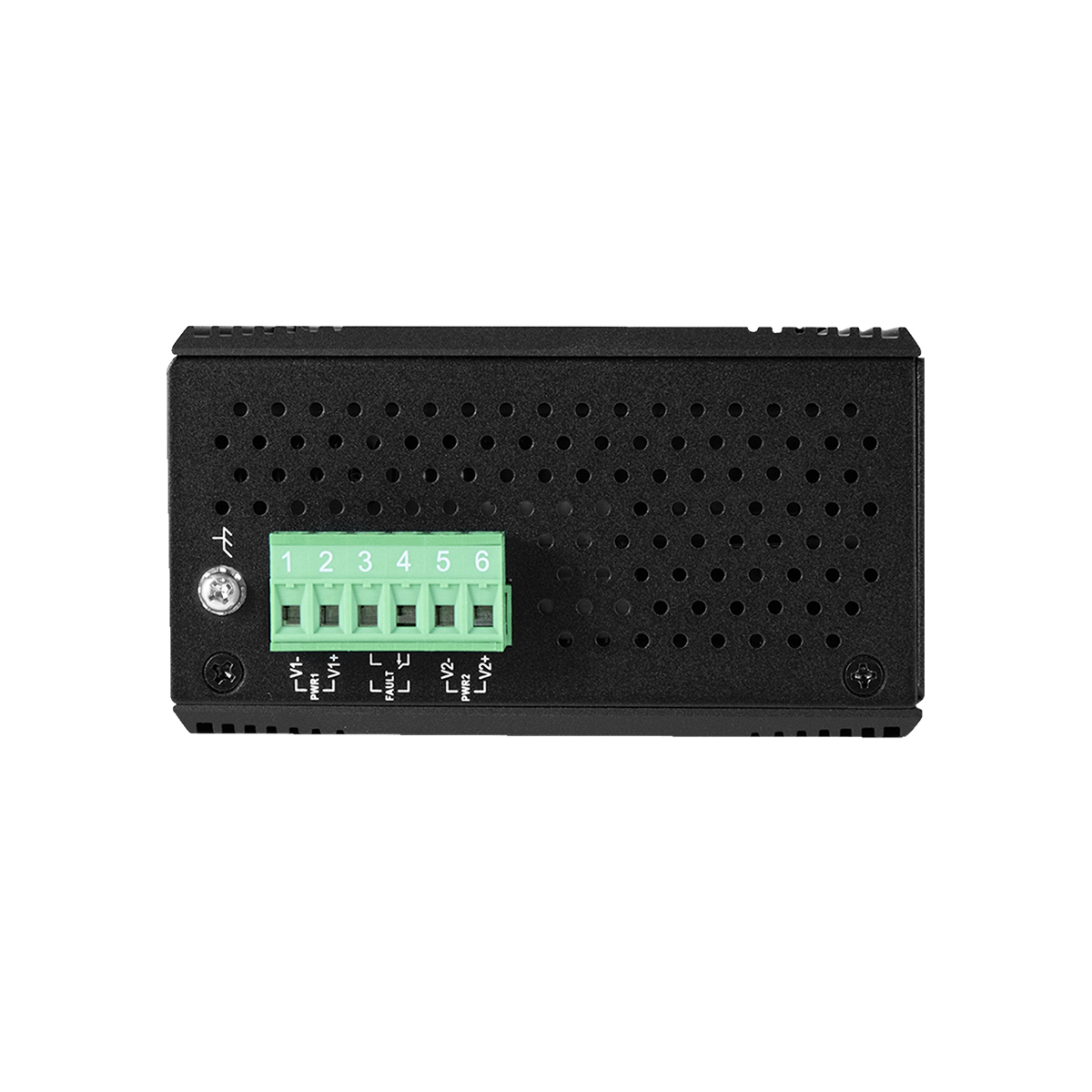

| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 10.2 Watts |
| Max. PoE Power Budget | 240 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 65° C (-40° to 149° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 2.5 lbs Shipping weight : 3.12 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55035 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
