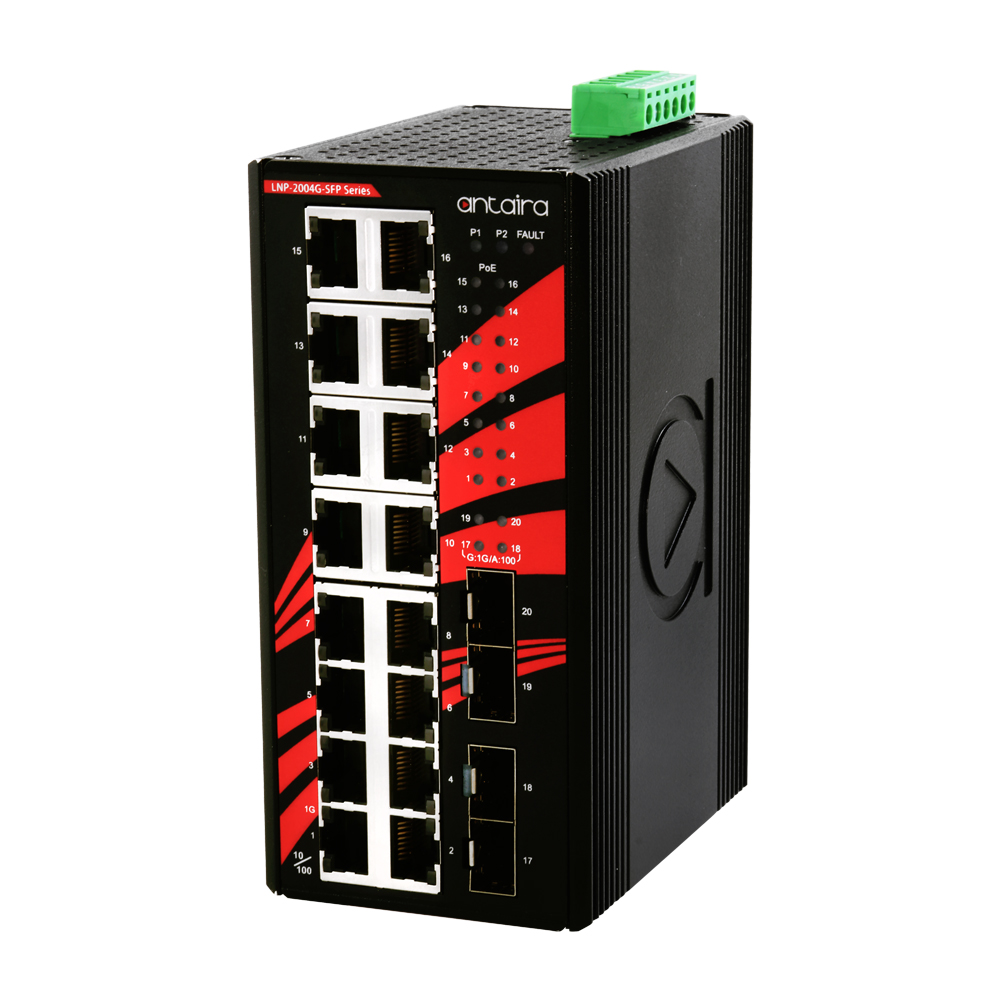

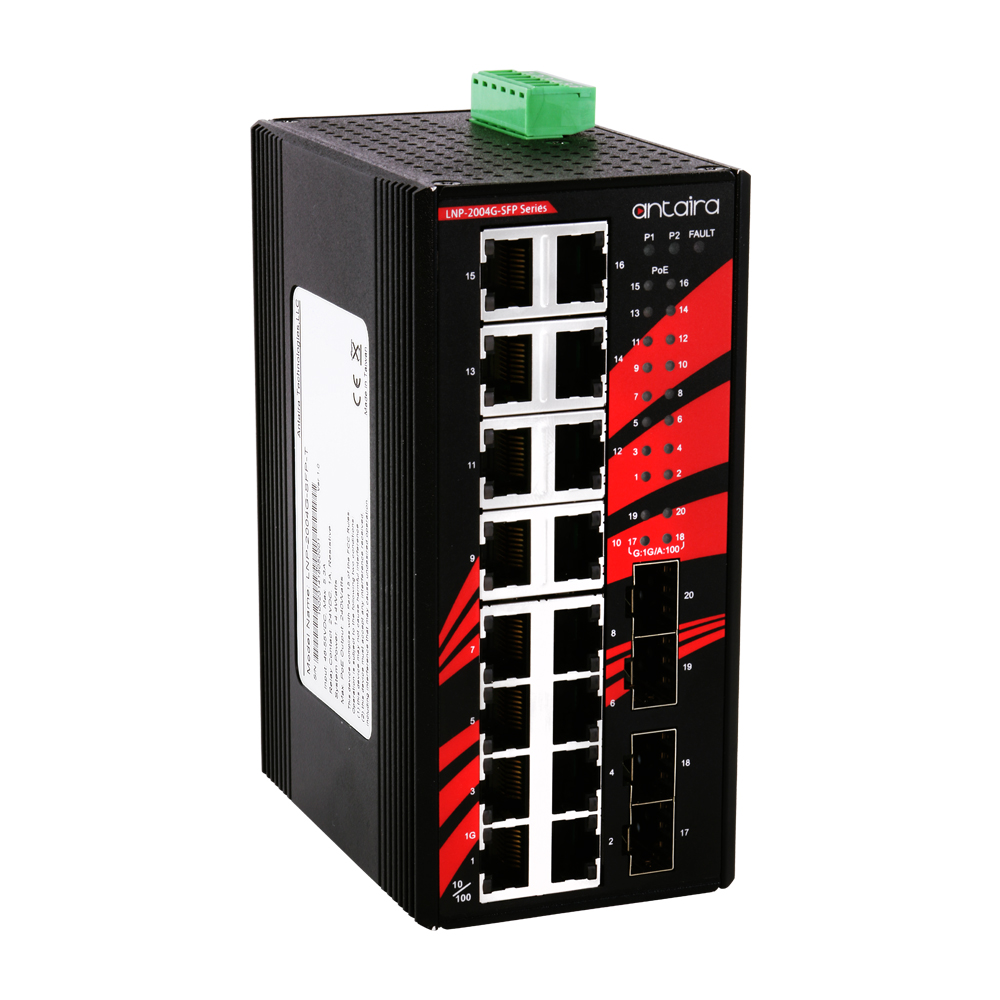

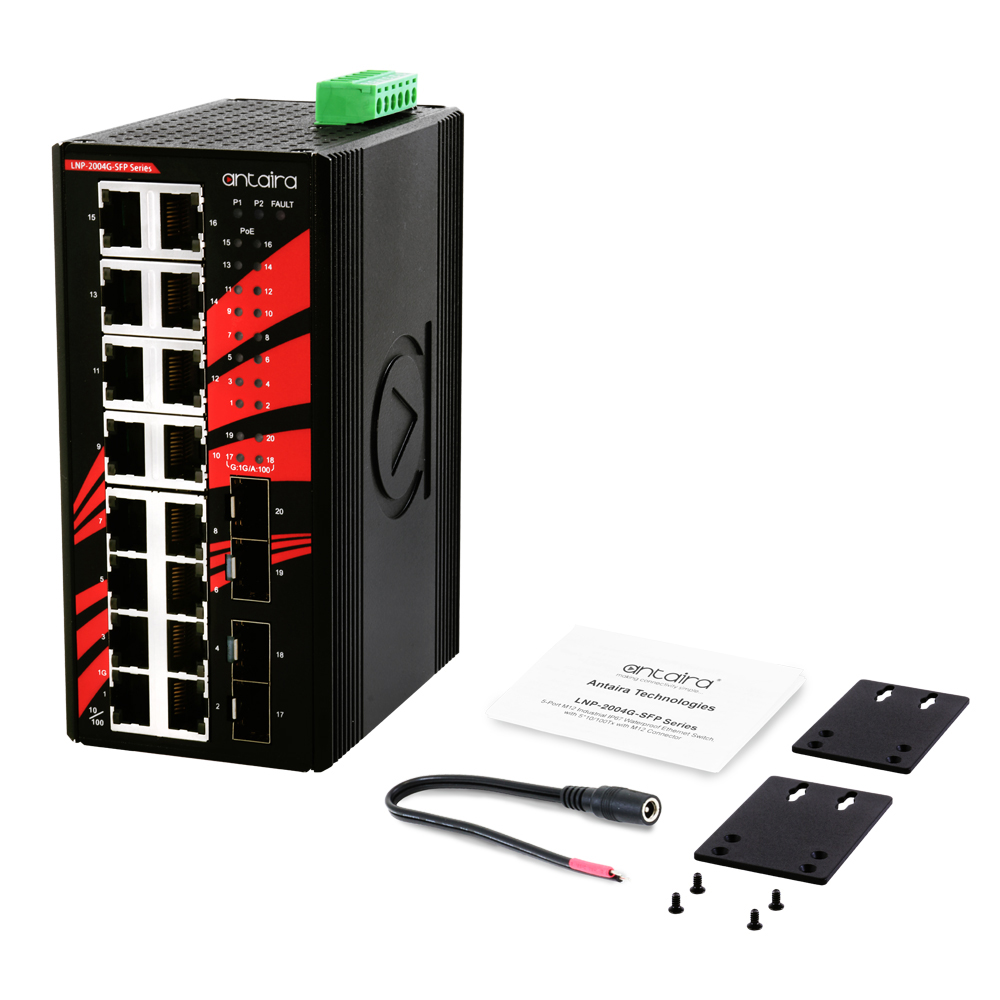

Antaira LNP-2004G-SFP-T

20-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/ 16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots. 48~55V DC Power Input Support. EOT: -40° ~ 75°C.

Mã: LNP-2004G-SFP-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-2004G-SFP-T

Mô tả
Sản phẩm liên quan

Antaira’s LNP-2004G-SFP-T industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 16 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with a maximum of 30W/Port; and has four dual rate (100/1000)
SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.

This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in
relay warning function alerts maintainers when power failures occur.

LNP-2004G-SFP-T has an operating temperature range of -40° to 75° C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.

Supports 16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP ports
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 48~55VDC
Built-in 1 Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range: -40° to 75°C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	16 ports
10/100/1000 BASE-T(X)	16 ports
PoE Port	16 ports (30W/port)
PoE Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Fiber Interface
Fiber Port Count	4 ports
100/1000 BASE-(F)X SFP	4 ports
Wavelength	Refers to SFP module
Performance
MAC Table Size	8K
Jumbo Frame	9,216 bytes
Memory Buffer	512Kbytes
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 40Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	16.5 Watts
Max. PoE Power Budget	240 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	67 × 142 × 99 mm
Weight	Unit weight : 2.65 Ibs. Shipping: 3.09 Ibs.
Regulatory Approvals
Certifications	FCC, CE
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHs Compliant
Warranty	5 years
