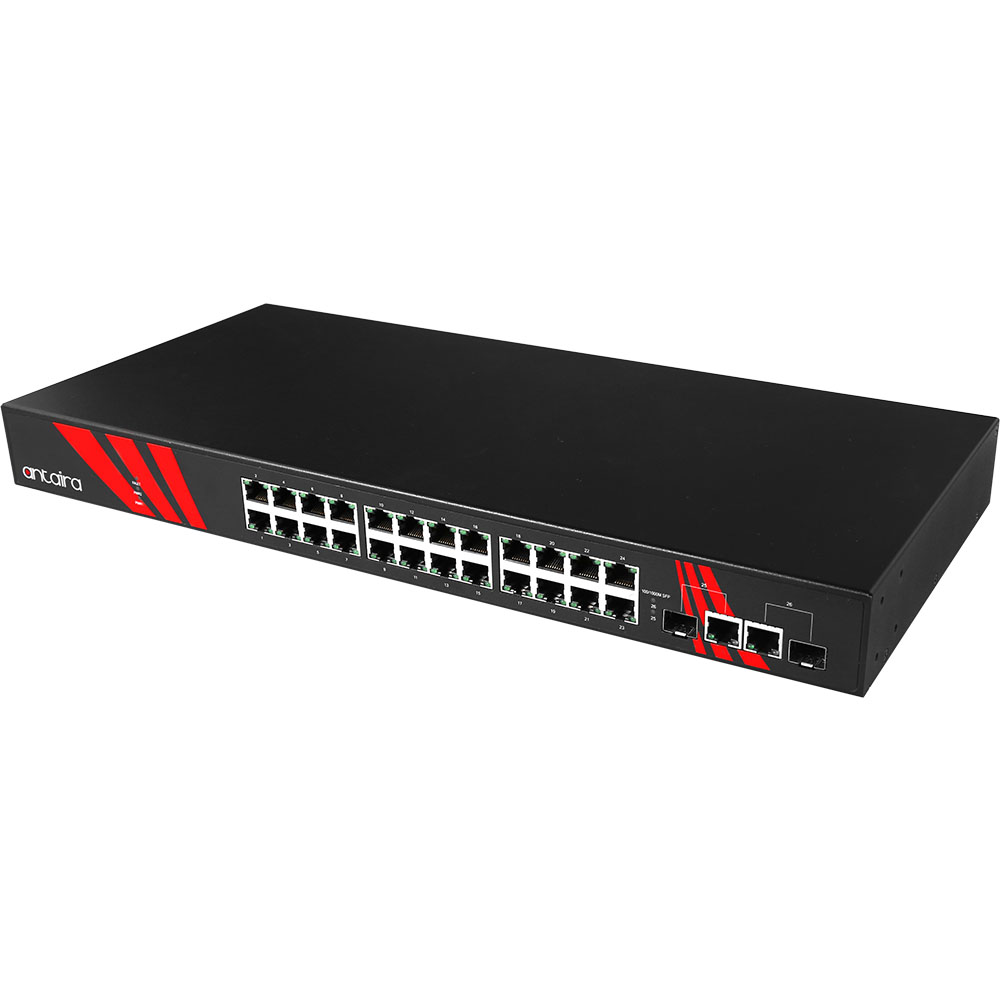

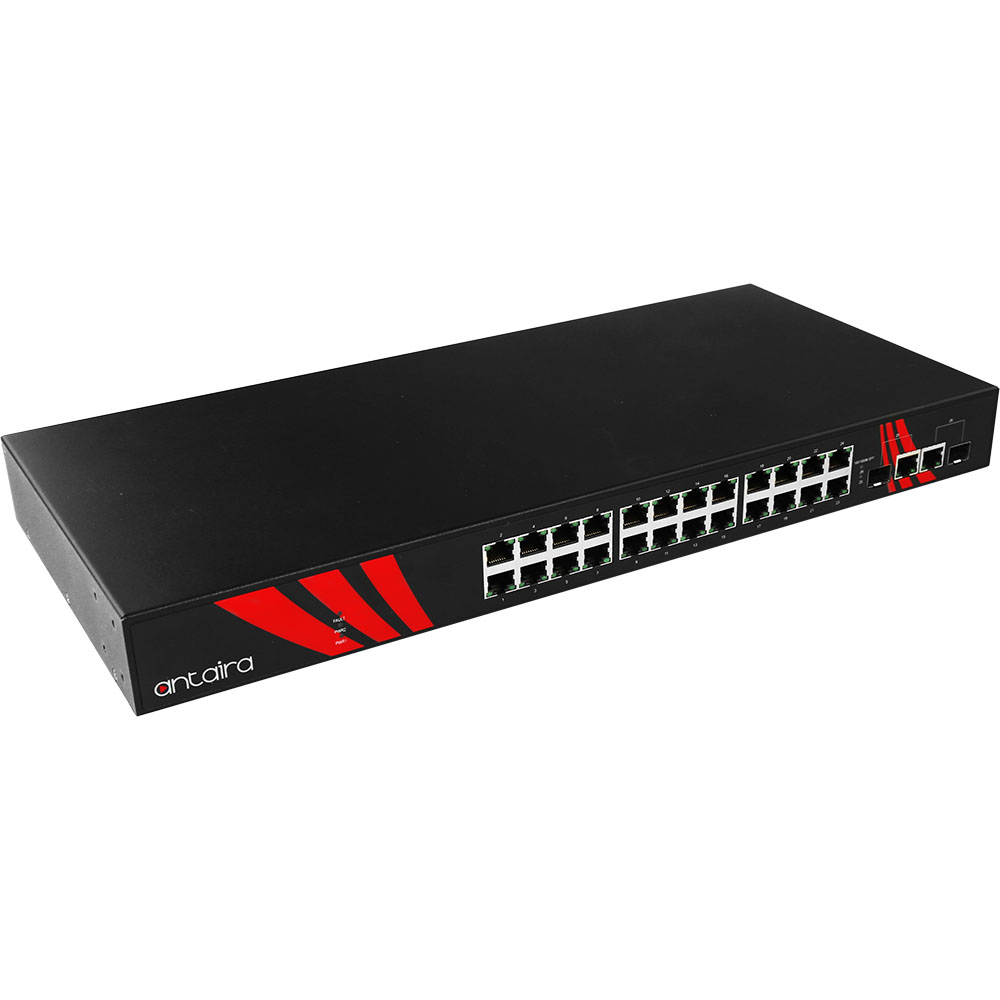

Antaira LNP-2602G-SFP-T

Antaira Technologies’ LNP-2602G-SFP industrial gigabit PoE+ unmanaged Ethernet switch features twenty four Gigabit ports with IEEE 802.3at high power PoE (30W/Port). LNP-2602G-SFP also provides two gigabit combo ports with two 10/100/1000 Twisted pair and
two dual rate 100/1000Fx SFP ports for fiber or twisted pair connections to support any applications that demand high PoE power support, high bandwidth and long distance communication within any harsh and extreme ambient weather environment. It also provides
high EFT and ESD protection to prevent any unregulated voltage, and provides two wide operating temperature models with standard version in -10 to 70 ̊C, or extended version in -40 to 75 ̊C.

LNP-2602G-SFP product is ideal for supporting applications that require high density PoE+ port connections, such as, security surveillance, traffic monitoring systems, facility management in power/utility, water wastewater treatment plants and oil/gas/mining.

• Supports 24*10/100/1000Tx (30W/Port) + 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• 9.6Kbytes Jumbo Frame Support
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support

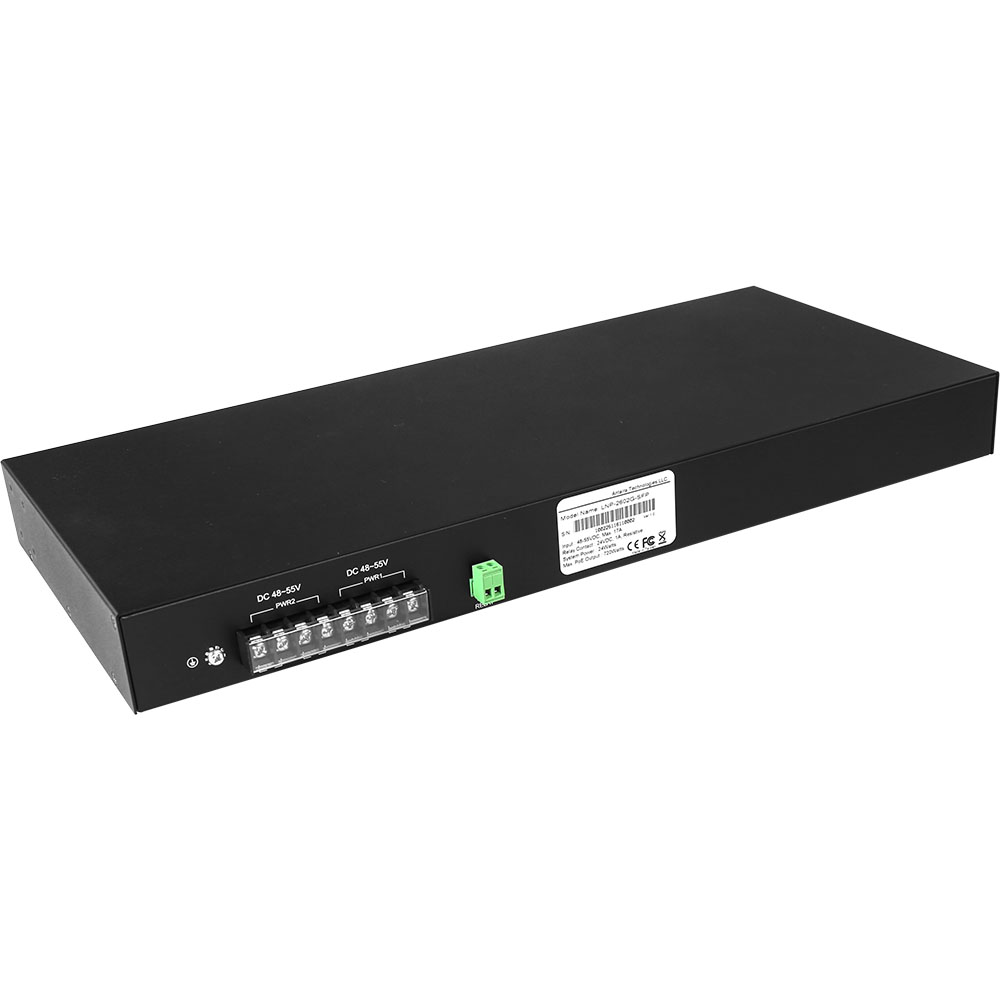

• Redundant Power Input Design: 48~55VDC
• Built-in 1 Relay Output for Power Failure Detection
• IP40 Rugged Metal Case Design

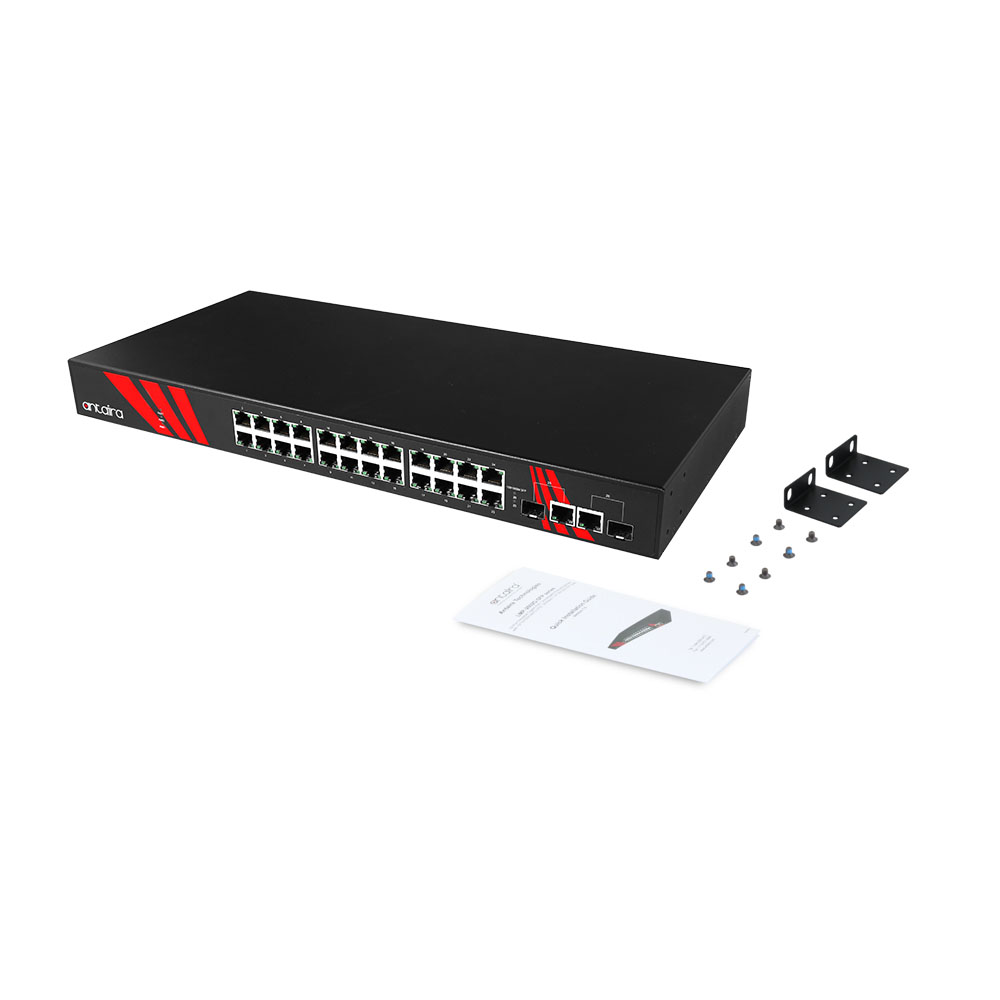

• 1U 19″ Rackmount design Support
• Operating Temperature Range: -40° to 75° C
• 5-Year Warranty
