Antaira LNX-0500-M12-67-T

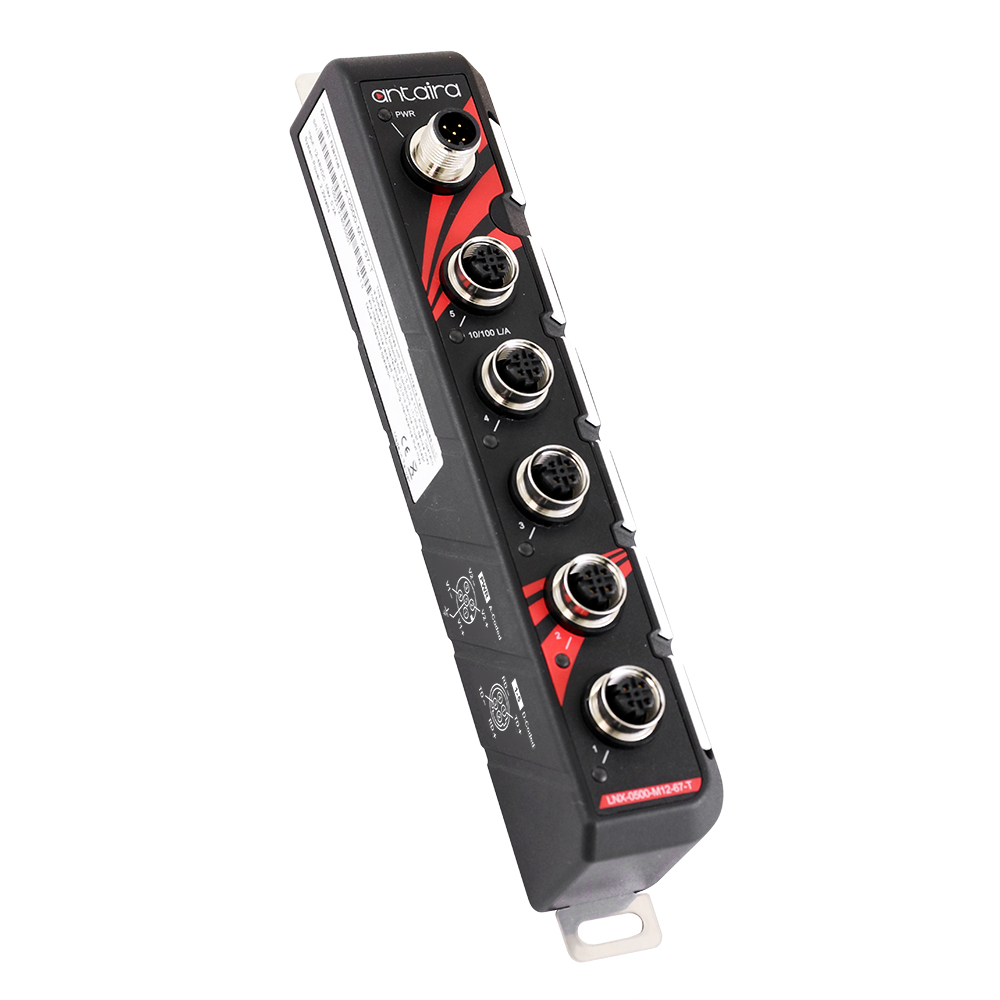

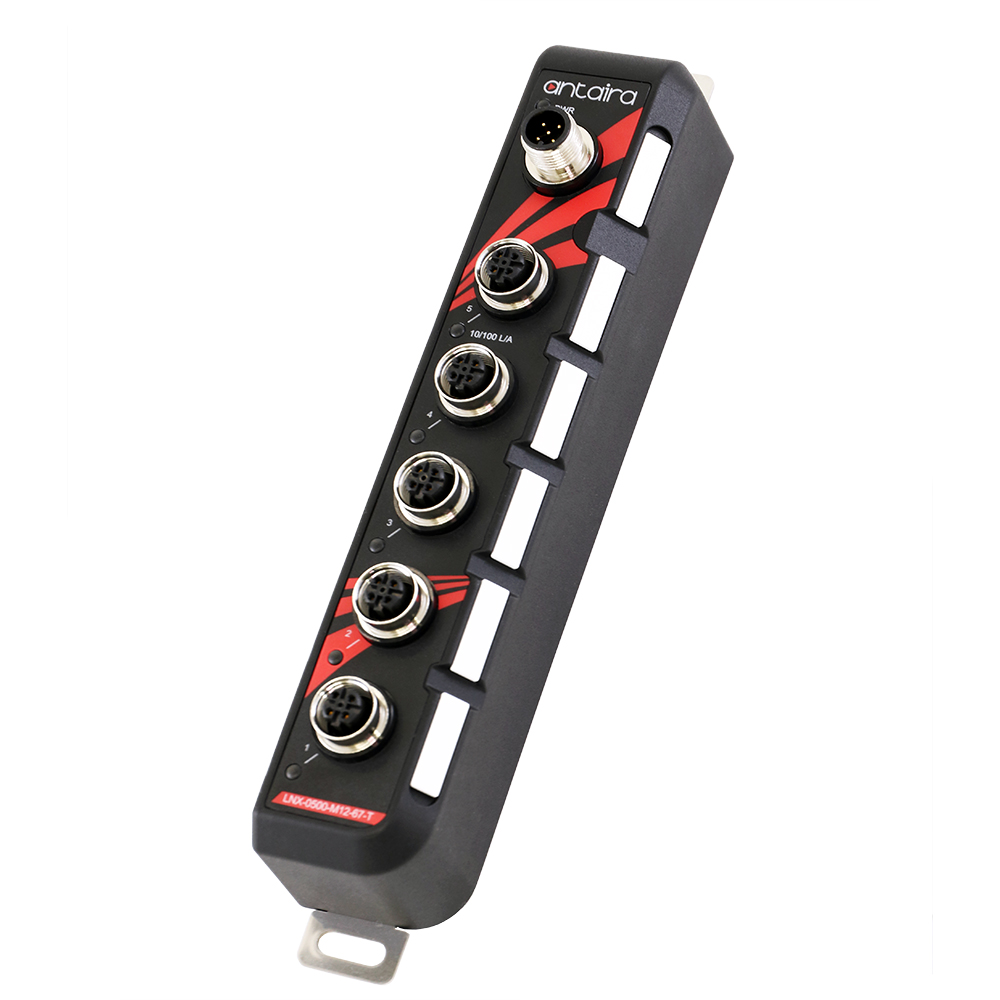

Antaira Technologies’ LNX-0500-M12-67-T is a 5-port 10/100Tx M12 IP67 industrial switch that meets the highreliability requirements demanded by industrial applications. It features operating temperature of -40° to 70° C, which allows this device to be used
in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas.
- 5*10/100Tx Fast Ethernet
- M12 (A-coded) connector with IP67 Rated Protection
- IP67 Rugged Plastic Case Design
- M12 FE Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Redundant Power Input: 12~48VDC
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 5 ports |
| 10/100 BASE-T(X) | 5 × 10/100T(X) M12 connectors |
| M12 Connector | 5 × D-Coded M12 Connectors |
| Performance | |
| MAC Table Size | 1K |
| Memory Buffer | 448kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric) |
| Power Requirements | |
| Power Connection | M12, 5-pin A-Coded male connector |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 500m Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Plastic, IP67 protection |

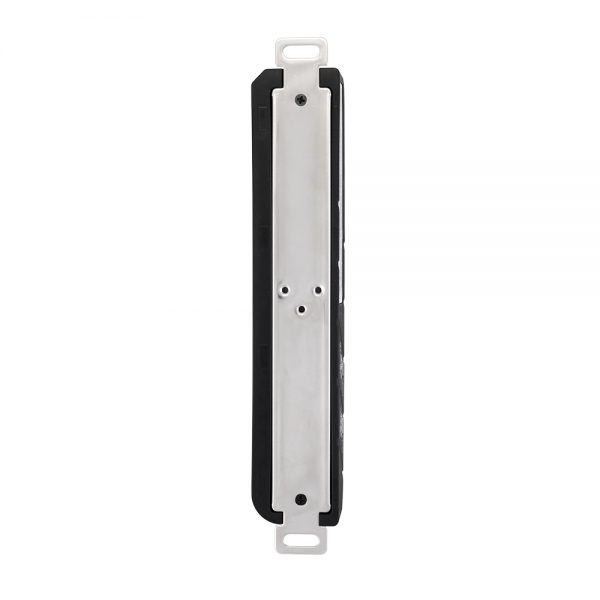

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 37.13 × 215.73 × 32.8 mm |
| Weight | Unit weight : 0.749 lb Shipping: 1.322 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
