Antaira LNX-0802C-SFP

Antaira’s LNX-0802C-SFP industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with six 10/100Tx Fast Ethernet ports and two gigabit combo ports with two 10/100/1000 fast Ethernet ports or two dual rate (100/1000)
SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This model provides high EFT and ESD protection to prevent any unregulated voltage and the dual power input as redundancy feature with reverse polarity
protection; plus the built-in relay warning function alerts maintainers when power failures occur. It supports operating temperature from -10° to 70°C. It is a perfectly designed product to fulfill special needs within industrial automation, outdoor applications
and harsh weather environments.

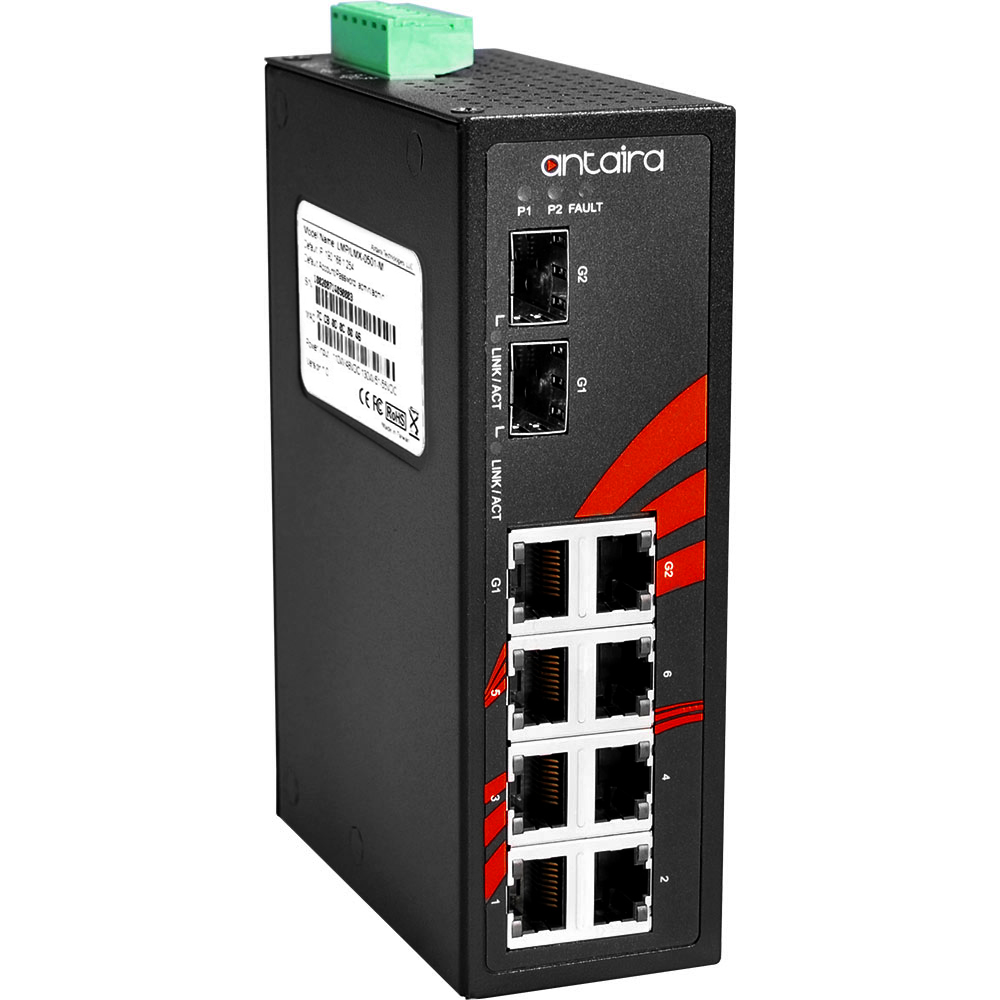

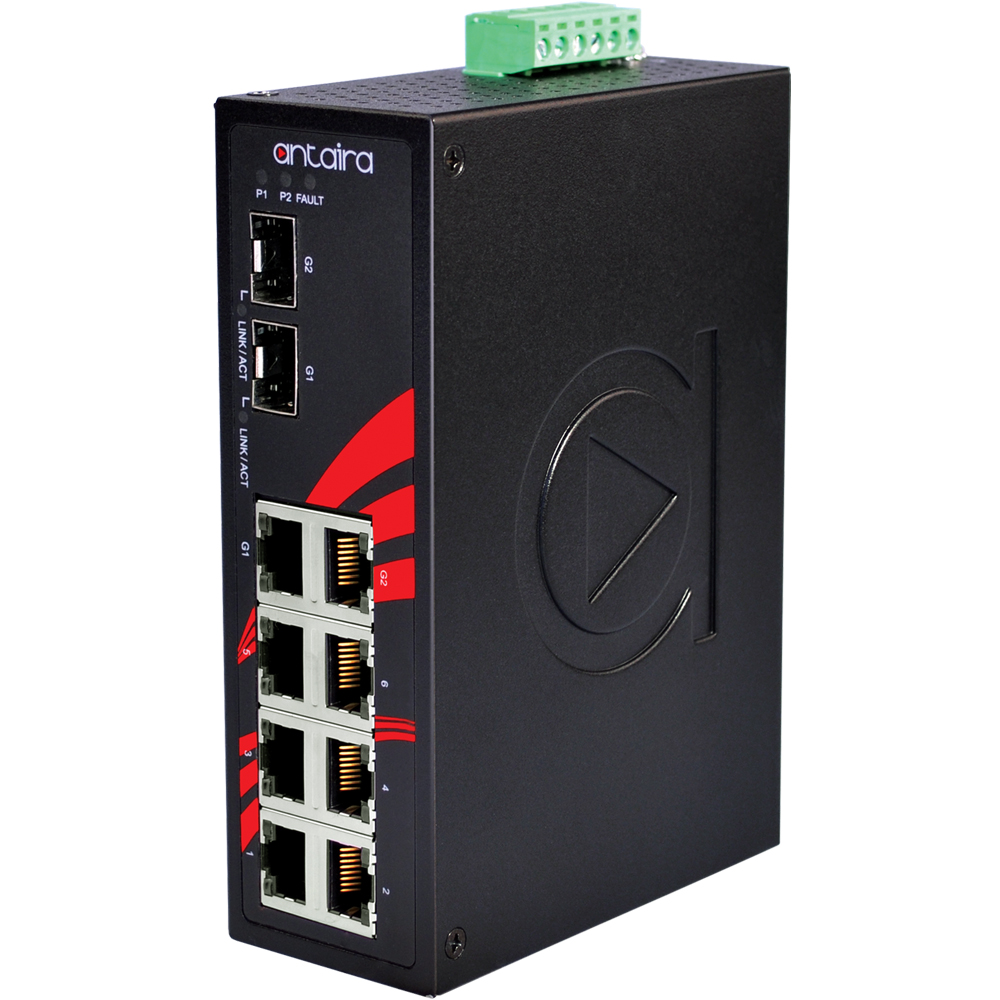

• Supports 6-Port 10/100Tx and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 12~48VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design

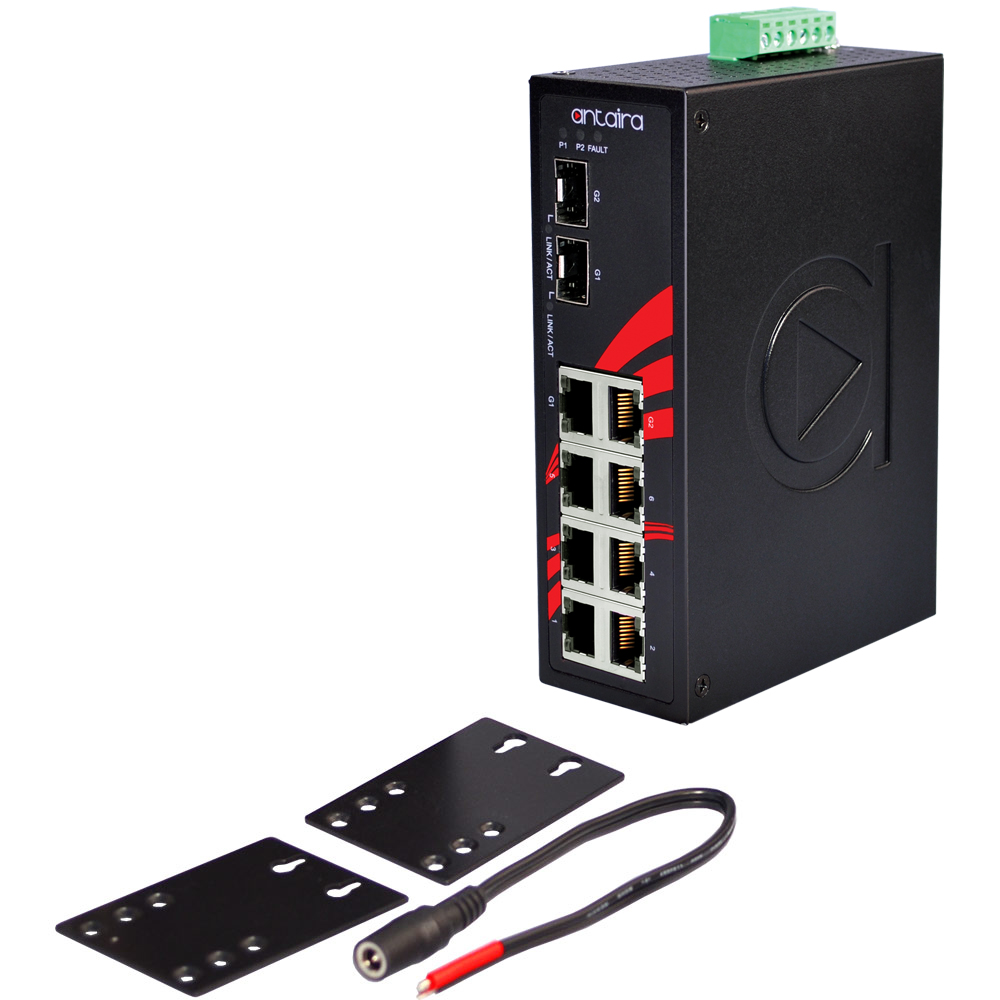

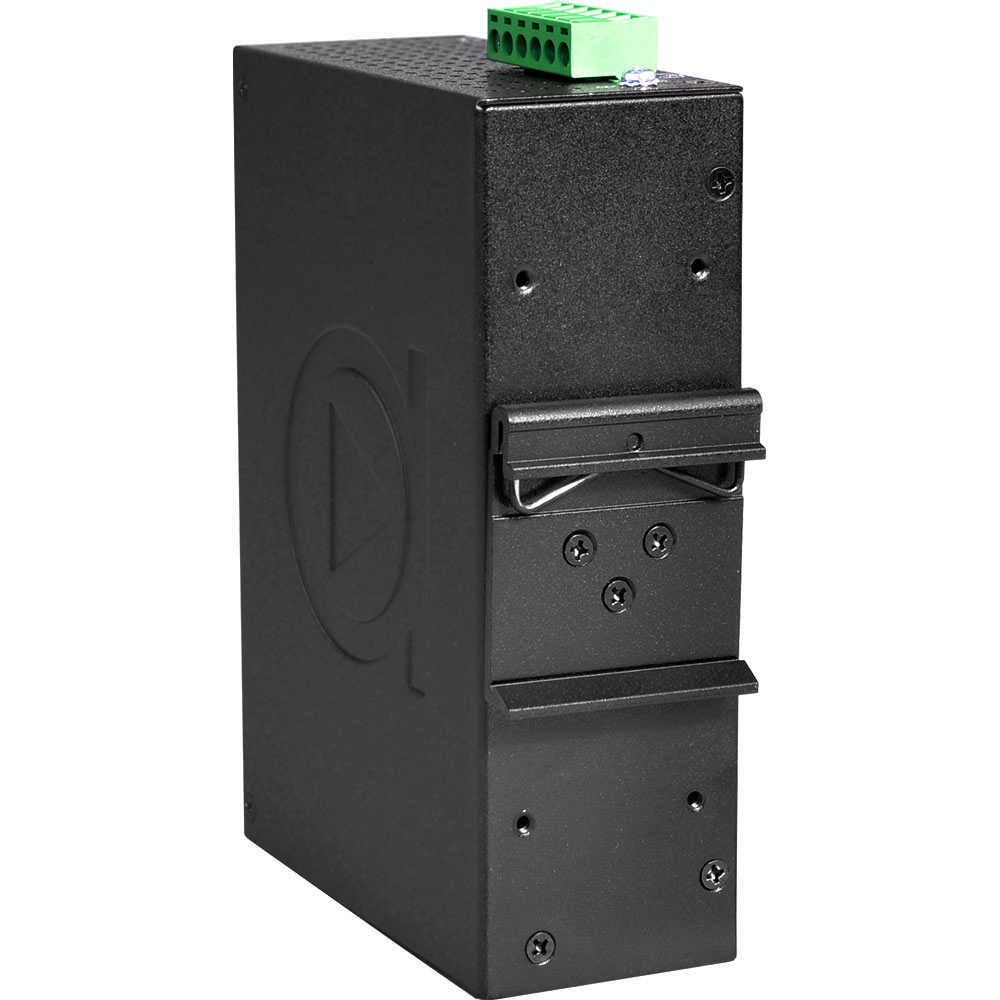

• DIN-Rail and Wall Mount Support
• Operating Temperature Range – STD: -10° to 70° C
• 5-Year Warranty
