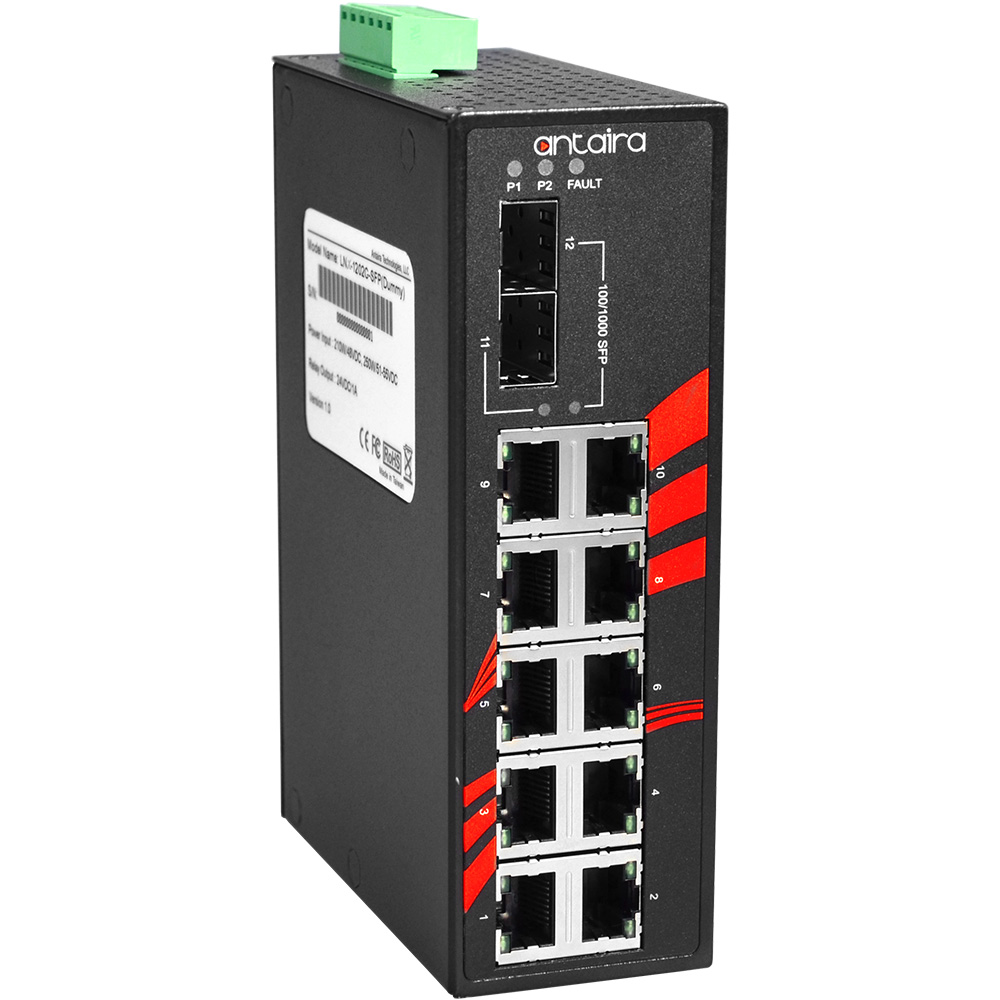

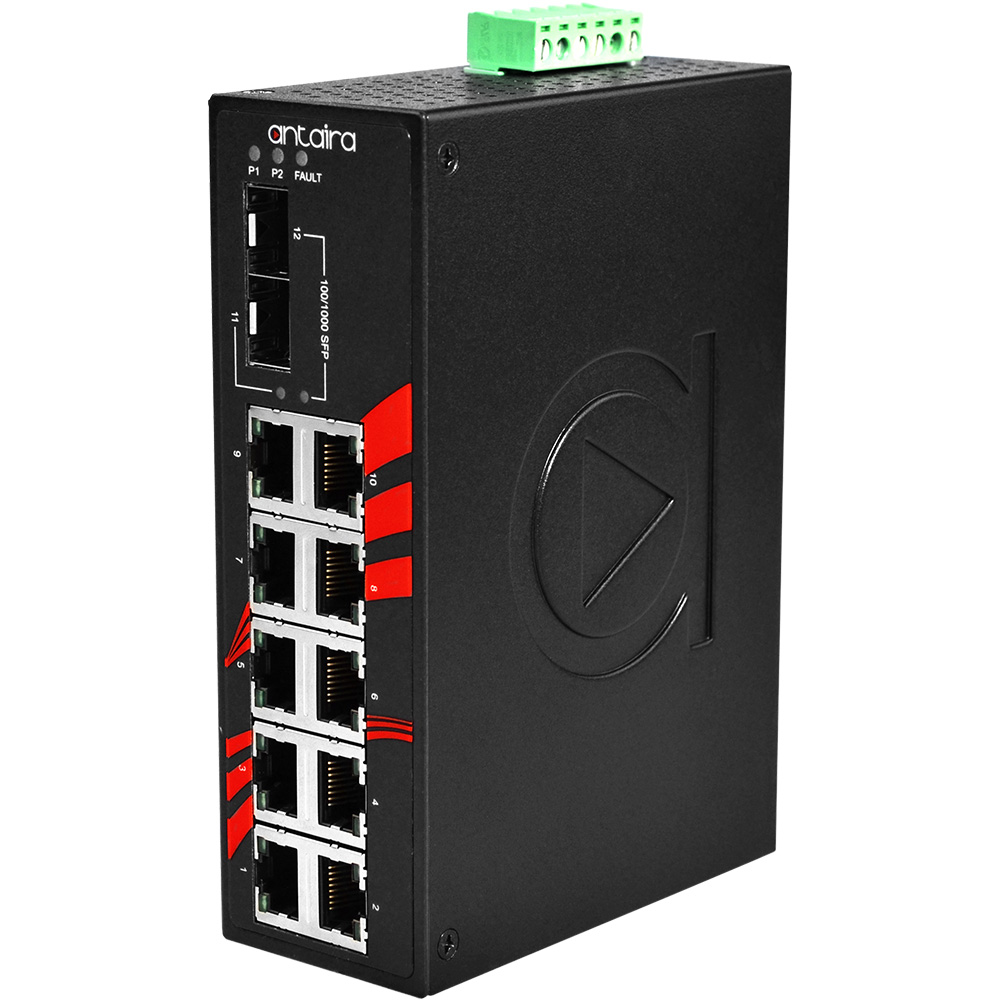

Antaira LNX-1202G-SFP-T
Antaira’s new LNX-1202G-SFP-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with 10 gigabit Ethernet ports and 2 dual rate (100/1000) SFP slots for fiber connections, making it ideal for applications
that demand high bandwidth and long distance communication.
This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports an extended operating temperature from -40 to 75° C.
LNX-1202G-SFP-T is a perfect industrial networking product to support any applications that require high bandwidth or high density connections, such as Power/Utility, Water Wastewater Treatment, Oil/Gas/Mining, Process Control Automation, Security Access
Control Systems, and Intelligent Transportation Systems.
- Supports 10*10/100/1000Tx + 2*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 24Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design

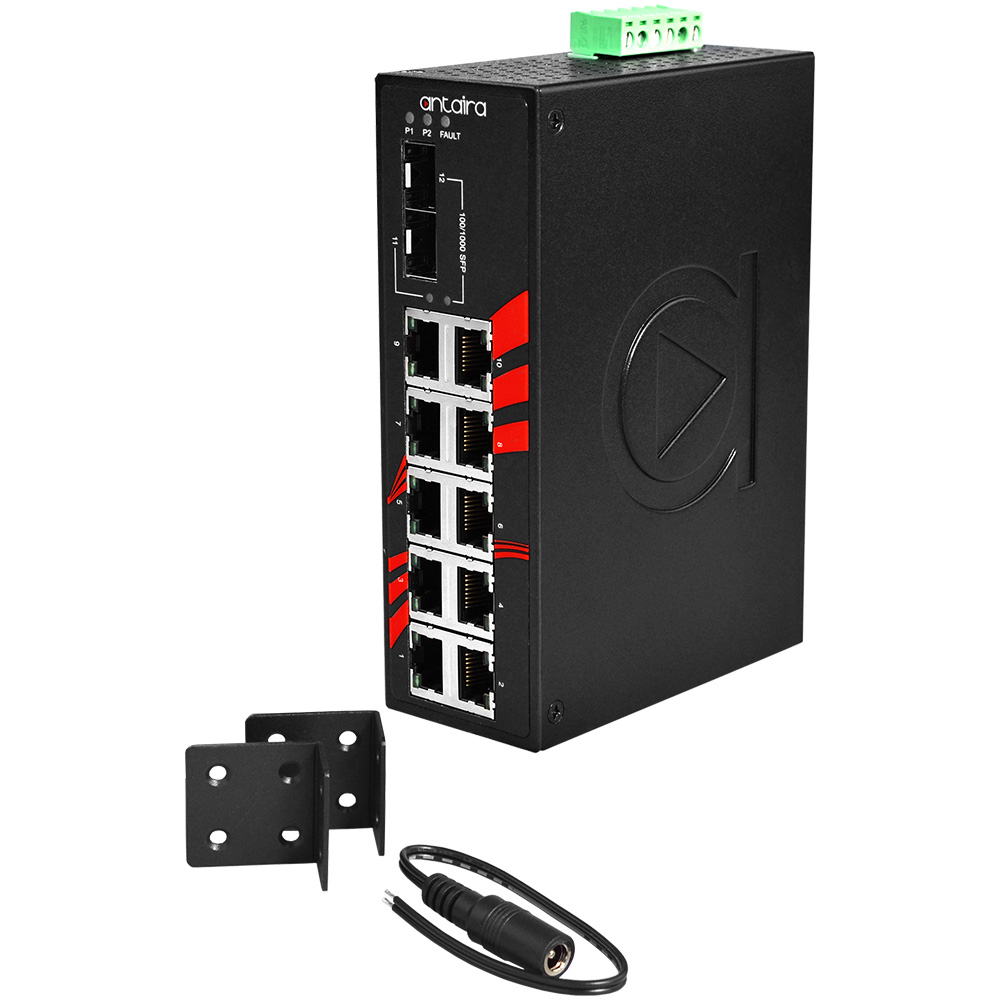

- DIN-Rail and Wall Mount Support
- Operating Temperature Range : -40° to 75° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 10 ports |
| 10/100/1000 BASE-T(X) | 10 ports |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 100/1000 BASE-(F)X SFP | 2 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 7,926 pps |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (switching Fabric): 24Gbps |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 10 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

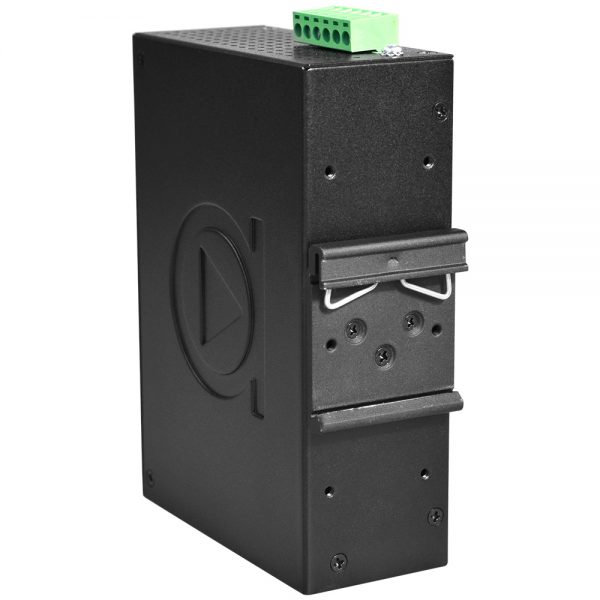

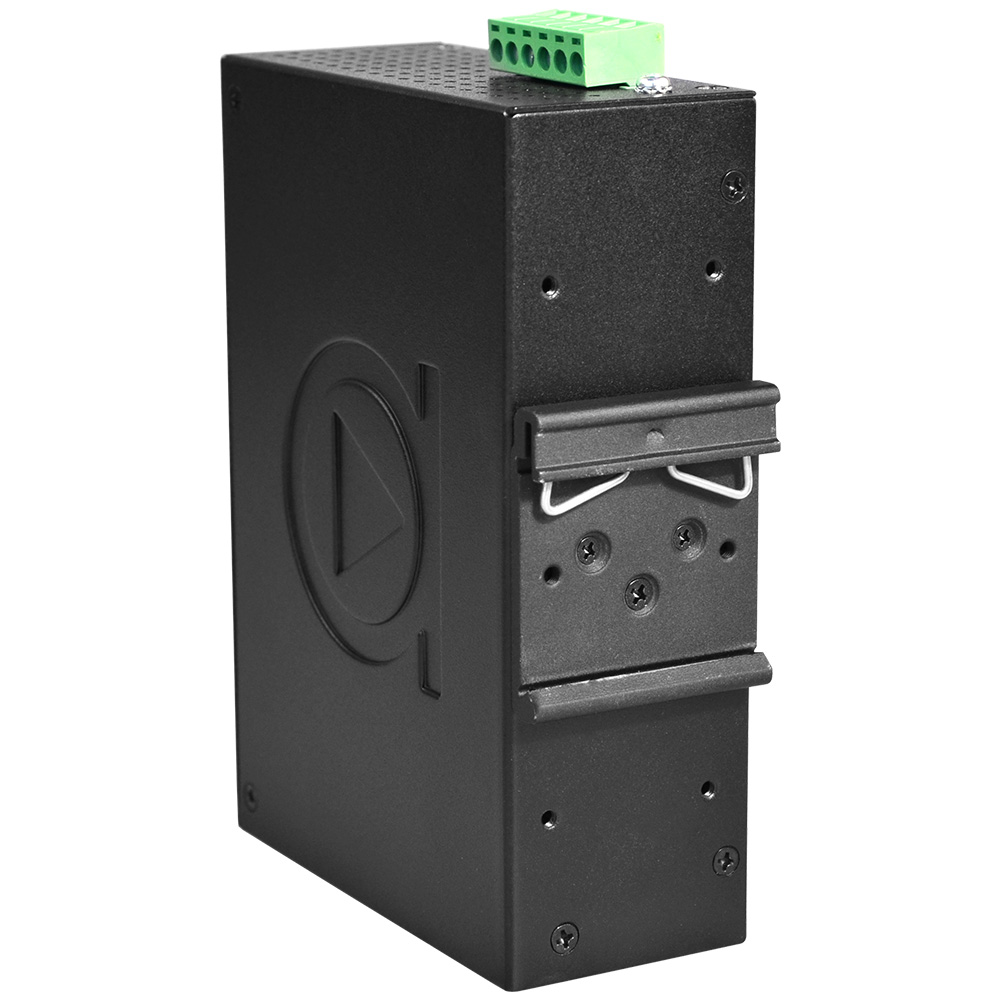

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 46 × 142 × 99 mm |
| Weight | Unit weight : 1.7lbs Shipping weight : 2.2 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 508 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
