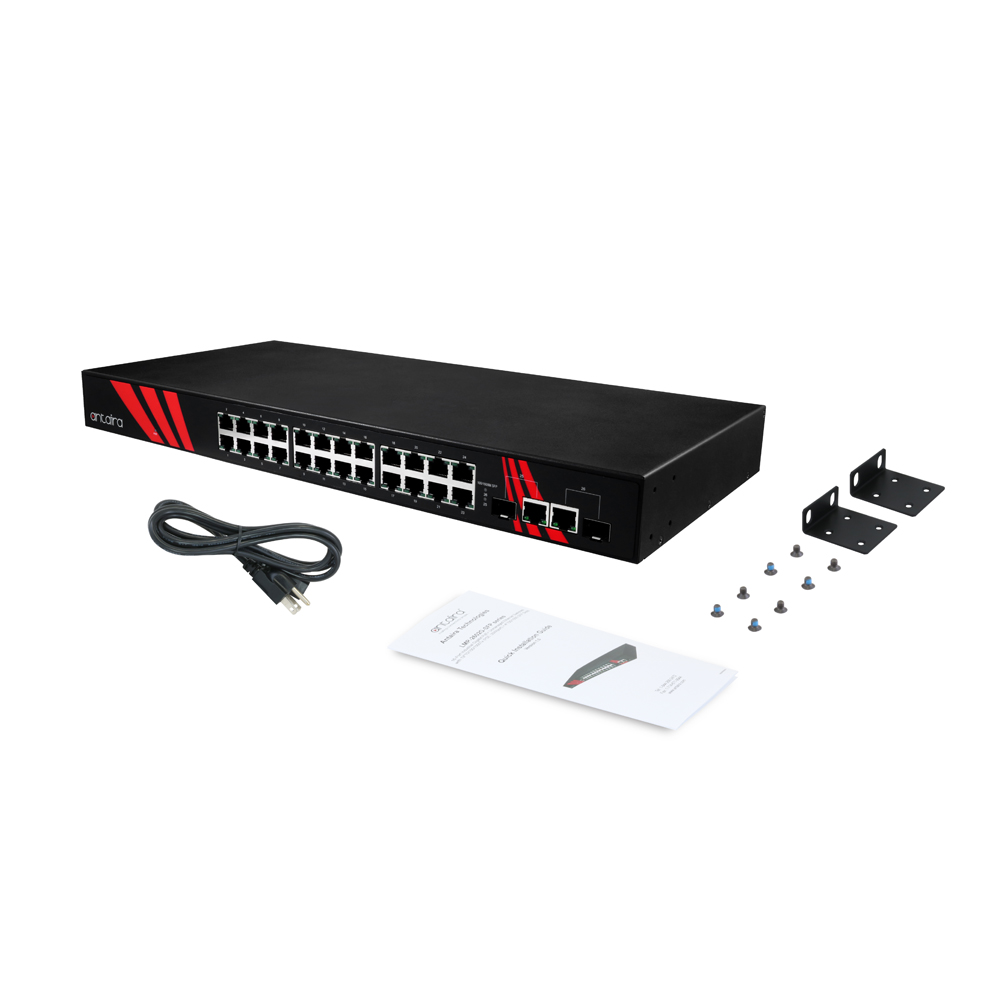

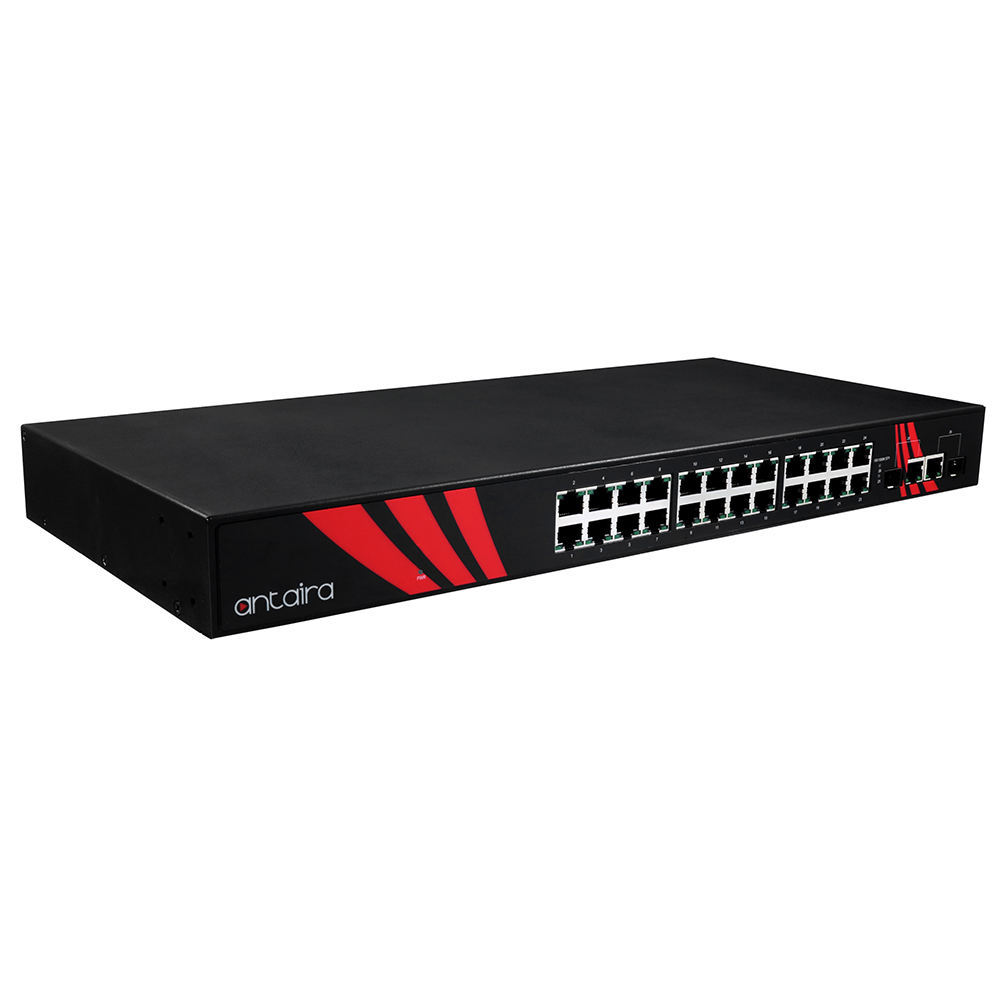

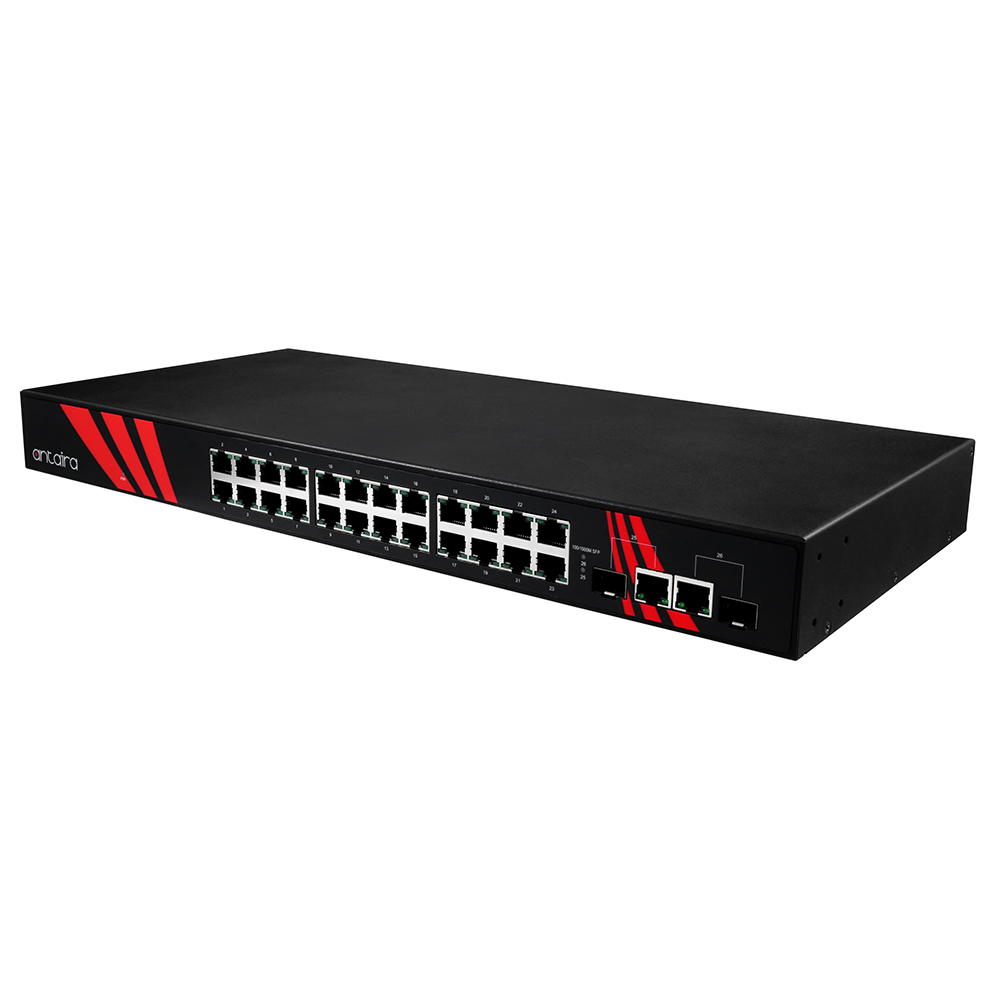

Antaira LNX-2602G-SFP
w/24*10/100/1000TX + 2*Gigabit Combo (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots)
Antaira Technologies’ LNX-2602G- SFP industrial gigabit unmanaged Ethernet switch features twenty-four Gigabit ports, and two Gigabit combo ports with two 10/100/1000 RJ45 and two dual rate 100/1000Fx SFP slots for fiber or twisted pair connections; making
it ideal for applications that demand high density of Ethernet connectivity, wide bandwidth and long distance communication within any harsh and extreme ambient weather environment applications, such as, power/utility, transportation, water wastewater treatment
plant, oil/gas, and security surveillance system industries. It provides two wide operating temperature models with standard version in -10 to 70˚C or extended version in -40 to 75˚C.
LNX-2602G-SFP is designed with IP40 rated 1U 19” rackmount, and provide high EFT and ESD protection to prevent any unregulated voltage.
- Supports 24*10/100/1000Tx + 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 90~264VAC
- Built-in 1 Relay Output for Power Failure Detection
- IP40 Rugged Metal Case Design
- 1U 19″ Rackmount design Support
- Operating Temperature Range: -10° to 70° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 24 ports |
| 10/100/1000 BASE-T(X) | 24 ports |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 100/1000 BASE-(F)X SFP | 2 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 4 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 52Gbps |
| Power Requirements | |

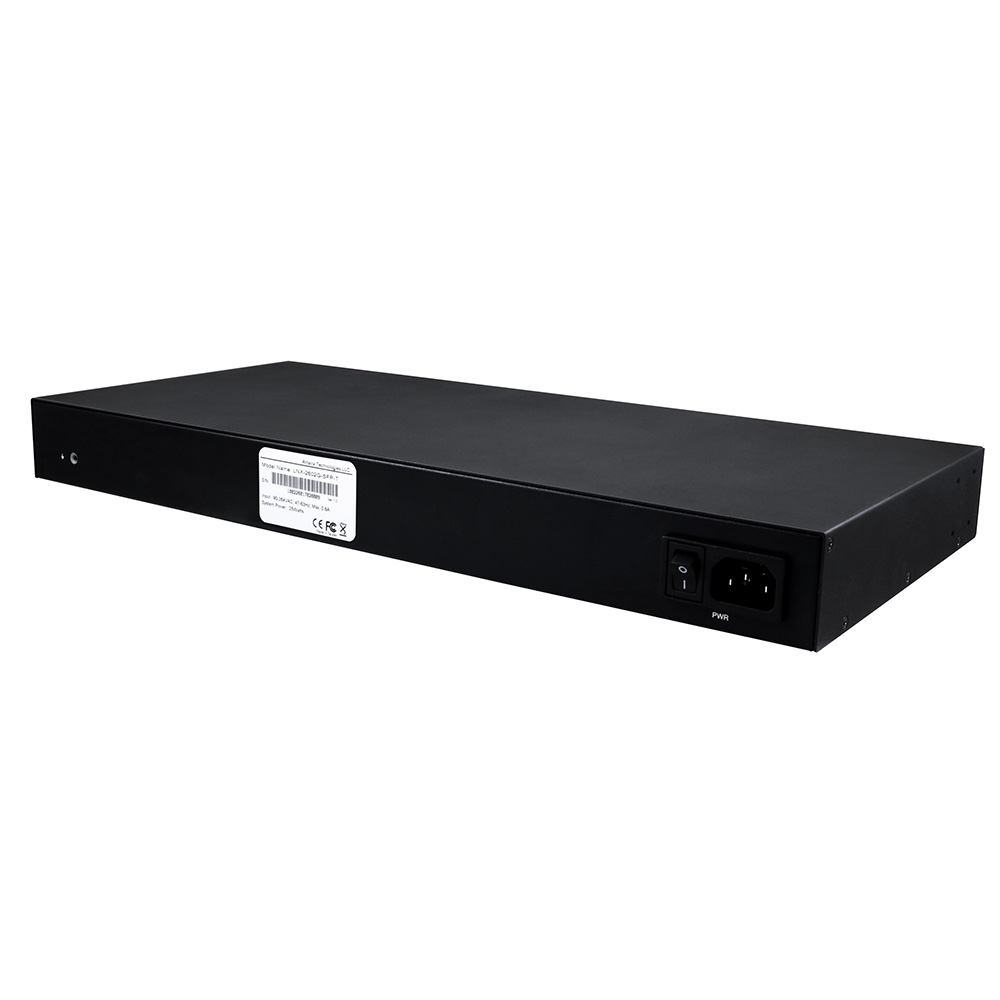

| Power Connection | AC 3-pin female power socket |
| Input Voltage | 90V–264V AC/47V–63Hz |
| System Power Consumption | 24 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 440 × 44 × 200 mm |
| Weight | Unit weight : 6.2 lbs Shipping: 8.0 lbs |
| Regulatory Approvals | |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
