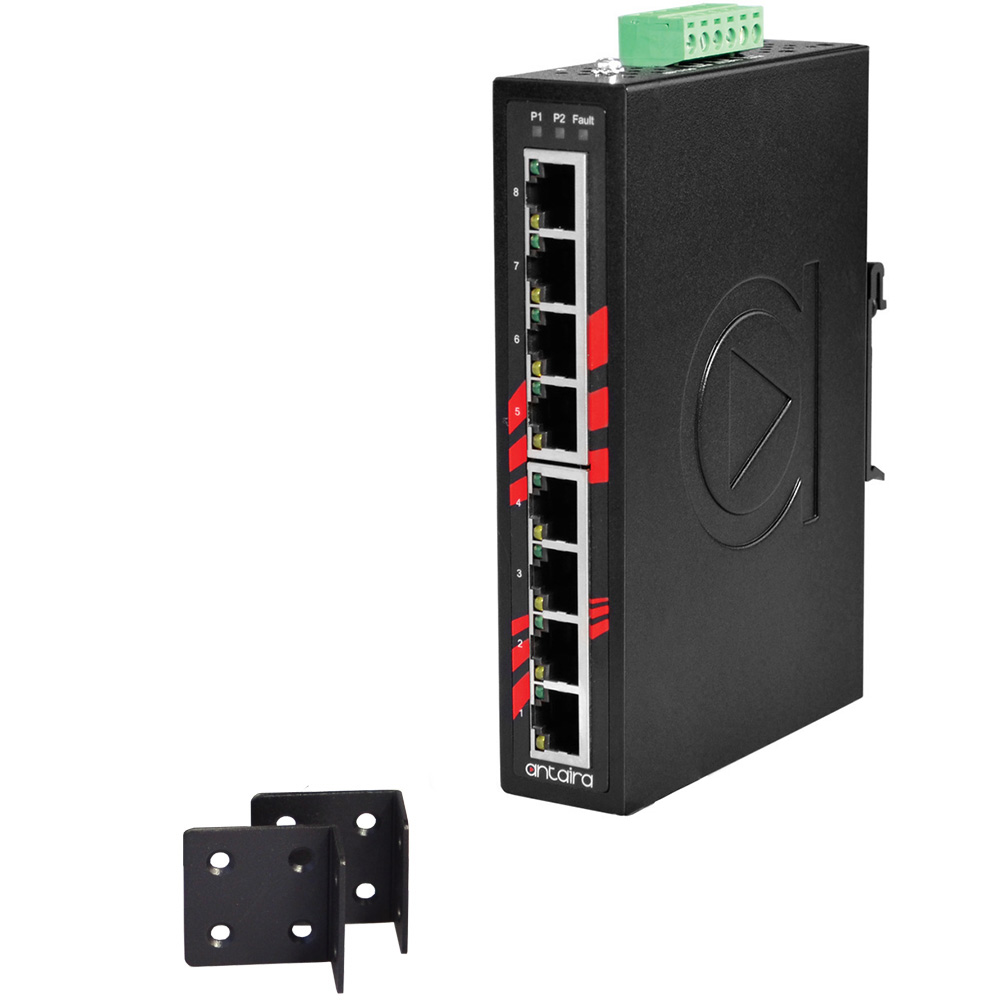

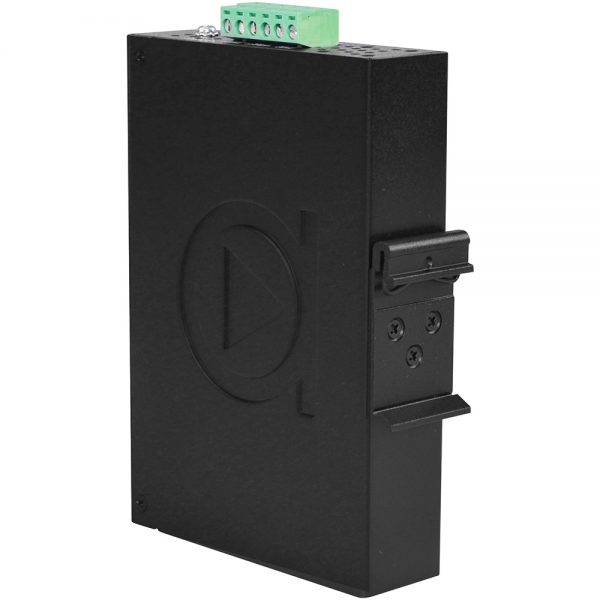

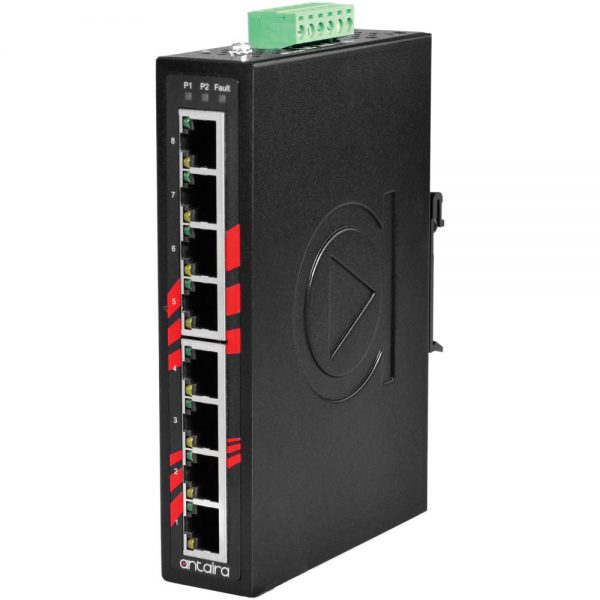

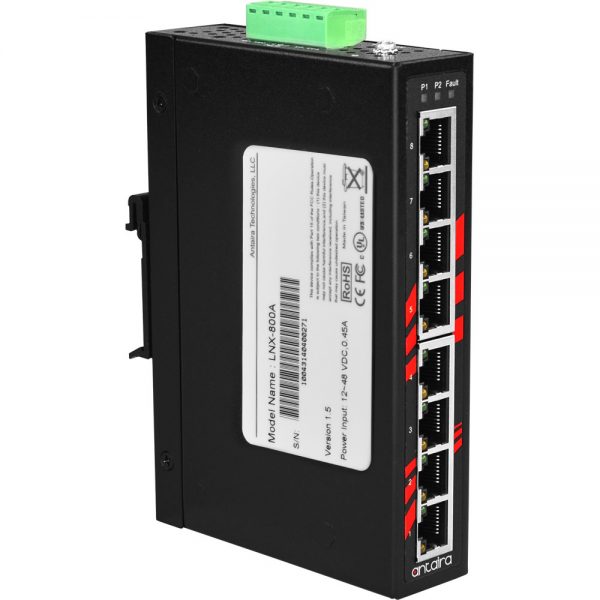

Antaira LNX-800A

8-Port Industrial Unmanaged Switch, w/8*10/100Tx

Mã: LNX-800A Danh mục: Switch công nghiệp Antaira Từ khóa: LNX-800A

Mô tả
Sản phẩm liên quan

LNX-800A is a 8-Port Slim Industrial Ethernet Switch

Store and Forward Switching Architecture
Flow Control on Full-Duplex
Back Pressure on Half-Duplex
Supports Auto MDI/MDI-X Function
Wide-Ranging Redundant Power Design
UL Class I, Division 2 Certified
DIN-Rail and Wall Mount Design
Slim IP-30 Case Design

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	8 ports
10/100 BASE-T(X)	8 ports
Performance
MAC Table Size	1K
Memory Buffer	512kbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 1.6Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	4.71 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 70° C (14° to 158° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 140 × 95 mm
Weight	Unit weight : 1.0 lbs Shipping: 1.5 lbs
Regulatory Approvals
Certifications	FCC, CE
UL 60950-1	✔
UL 61010-1 / UL 61010-2-201	✔
ISA 12.12.01 (UL C1D2)	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHS Compliant
Warranty	5 years
