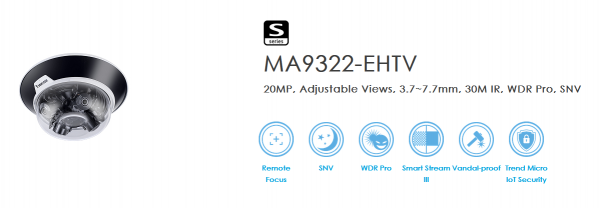

Camera Vivotek MA9322-EHTV | Made in Taiwan

H.265 Compression Technology
4x 5MP Independent Sensors, Adjustable Views
30 fps (2688×1920) per Sensor
Smart Stream III to Optimize Bandwidth Efficiency
WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
SNV (Supreme Night Visibility) for Low Light Conditions
Trend Micro IoT Security
Built-in IR Illuminators, Effective up to 30 Meters Radius
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in Microphone

Mã: MA9322-EHTV Danh mục: Camera IP Vivotek

Mô tả
Sản phẩm liên quan

ma9322-ehtv-app-3 INTERIORS

Offices and hotel lobbies, retail centers, hallways

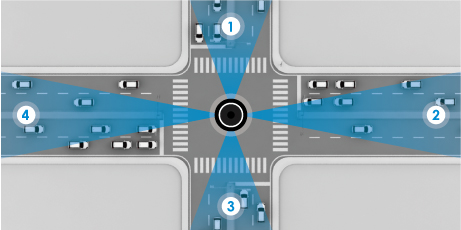

ma9322-ehtv-app-1

TRAFFIC

Intersections, Traffic Monitoring

ma9322-ehtv-app-2

CORNERS

Building exteriors

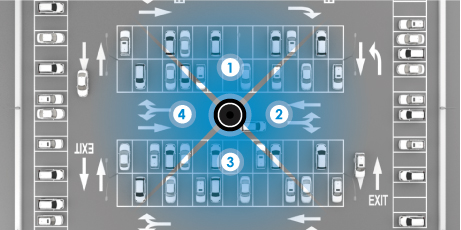

ma9322-ehtv-app-4

PARKING

Garages, Lots

System Information
Model	MA9322-EHTV
CPU	Multimedia SoC (System-on-Chip)
Flash	8GB
RAM	4GB
Camera Features
Image Sensor	1/2.7″ Progressive CMOS
Max. Resolution	2688×1920 (5MP) x 4
Lens Type	Motorized, Vari-Focal, Remote Focus
Focal Length	f = 3.7 ~ 7.7 mm
Aperture	F1.9 ~ F2.9
Auto-iris	Fixed-iris
Field of View	40.2° ~ 88.8° (Horizontal) 28.6° ~ 59.8° (Vertical) 49.6° ~ 116° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR illuminators, effective up to 30 meters with Smart IR
Minimum Illumination	0.095 Lux @ F1.9 (Color) 0.005 Lux @ F1.9 (B/W) 0 Lux with IR Illuminators on
Tilt Range	0° ~ 105° each lens
Rotation Range	±90° each lens
Pan/Tilt/Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage	Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording
Video
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps @ (2688×1920) x 4
Maximum Streams	3 simultaneous streams
S/N Ratio	67 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and bit rate control, configurable video cropping for bandwidth saving, Smart Stream III
Image Settings	Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, defog, 3DNR
Audio
Audio Capability	Two-way Audio (full duplex)
Audio Compression	G.711, G.726
Audio Interface	Built-in microphone External microphone input External line output
Effective Range	5 meters
Network
Users	Live viewing for up to 10 clients
Protocols	802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface	10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Five-window video motion detection
VADP Package	Genetec package, Trend Micro IoT Security
Alarm and Event
Alarm Triggers	Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy
Alarm Events	Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors	RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection Audio input* Audio output* AC 24V Power input* Digital input* Digital output* * Requires AO-006 cable.
LED Indicator	System power and status indicator
Power Input	AC 24V IEEE 802.3at PoE Class 4
Power Consumption	AC 24V: Max. 30 W PoE: Max. 25. 5 W
Dimensions	Main body: 267 x 114 mm With bracket: 275 x 118 mm
Weight	2,700 g
Casing	IP66, IK10
Safety Certifications	CE, FCC Class A, UL, LVD, VCCI, C-Tick
Operating Temperature	Start Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Humidity	90%
Warranty	36 Months
System Requirements
Operating System	Microsoft Windows 8/7 Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above Internet Explorer 10/11
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above
Included Accessories
Others	Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack
